MultiV+100

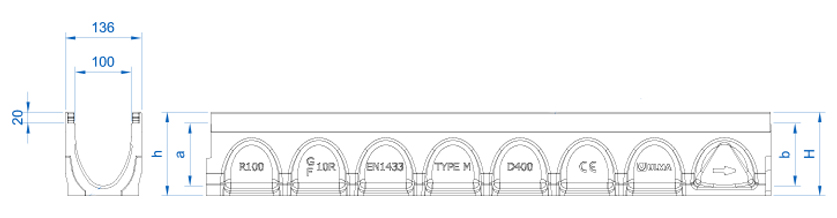

Linienentwässerungsrinne ULMA, Typ MULTIV+ R100G; Außenbreite 136 mm, Innenbreite 100 mm, Gesamthöhe zwischen 80 und 300mm; 0,5% Eigen- oder Stufengefälle zur Verfügung zur Aufnahme von Regenwasser in 1 m Länge. Optimierte V-Form mit Selbstreinigungseffekt; Kantenschutz aus verzinktem Stahl; schnelles Stecksystem mit 8 Befestigungspunkten pro laufender Meter.
Lieferbare Rinnen
| RINNENCODE |
L
(mm) |
Gesamthöhe
(mm) |
Breite (mm) | Auslaufdurchm. (mm) |
Hydraulikquerschnitt
(cm) |
Einheiten
(x pallet) |
Gewicht
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Außen | Innen | Vert. | Horiz. | |||||||||
| R100GH8 | 1000mm | 80mm | 136mm | 100mm | 110.0 | 40.0 | 90.0 | 11.24 | 0.9 | DWG | ||
| R100G00R | 1000mm | 100mm | 136mm | 100mm | 110.0 | 56.0 | 90.0 | 12.28 | 1.5 | DWG | ||
| R100G01 | 1000mm | 100/105 | 136mm | 100mm | 110.0 | 60.9 | 90.0 | 12.45 | 2.78 | DWG | ||
| R100G02 | 1000mm | 105/110 | 136mm | 100mm | 110.0 | 64.3 | 90.0 | 12.86 | 2.93 | DWG | ||
| R100G03 | 1000mm | 110/115 | 136mm | 100mm | 110.0 | 67.7 | 90.0 | 13.32 | 3.27 | DWG | ||
| R100G04 | 1000mm | 115/120 | 136mm | 100mm | 110.0 | 71.1 | 90.0 | 13.73 | 3.46 | DWG | ||
| R100G05 | 1000mm | 120/125 | 136mm | 100mm | 110.0 | 74.5 | 90.0 | 14.16 | 3.84 | DWG | ||
| R100G06 | 1000mm | 125/130 | 136mm | 100mm | 110.0 | 77.9 | 75.0 | 14.57 | 4.05 | DWG | ||
| R100G07 | 1000mm | 130/135 | 136mm | 100mm | 110.0 | 81.3 | 75.0 | 15.09 | 4.35 | DWG | ||
| R100G08 | 1000mm | 135/140 | 136mm | 100mm | 110.0 | 84.7 | 75.0 | 15.44 | 4.58 | DWG | ||
| R100G09 | 1000mm | 140/145 | 136mm | 100mm | 110.0 | 88.1 | 75.0 | 15.87 | 4.92 | DWG | ||
| R100G10 | 1000mm | 145/150 | 136mm | 100mm | 110.0 | 91.5 | 75.0 | 16.35 | 5.14 | DWG | ||
| R100G10R | 1000mm | 150mm | 136mm | 100mm | 110.0 | 91.5 | 75.0 | 15.26 | 3.3 | DWG | ||
| R100G11 | 1000mm | 150/155 | 136mm | 100mm | 110.0 | 96.5 | 75.0 | 15.13 | 5.04 | DWG | ||
| R100G12 | 1000mm | 155/160 | 136mm | 100mm | 110.0 | 100.6 | 75.0 | 15.69 | 5.75 | DWG | ||
| R100G13 | 1000mm | 160/165 | 136mm | 100mm | 110.0 | 104.6 | 75.0 | 16.00 | 5.99 | DWG | ||
| R100G14 | 1000mm | 165/170 | 136mm | 100mm | 110.0 | 108.7 | 75.0 | 16.40 | 6.39 | DWG | ||
| R100G15 | 1000mm | 170/175 | 136mm | 100mm | 110.0 | 112.7 | 75.0 | 16.73 | 6.61 | DWG | ||
| R100G16 | 1000mm | 175/1780 | 136mm | 100mm | 110.0 | 116.8 | 60.0 | 17.38 | 6.91 | DWG | ||
| R100G17 | 1000mm | 180/185 | 136mm | 100mm | 110.0 | 120.8 | 60.0 | 17.73 | 7.33 | DWG | ||
| R100G18 | 1000mm | 185/190 | 136mm | 100mm | 110.0 | 124.9 | 60.0 | 18.24 | 7.61 | DWG | ||
| R100G19 | 1000mm | 190/195 | 136mm | 100mm | 110.0 | 128.9 | 60.0 | 18.67 | 7.9 | DWG | ||
| R100G20 | 1000mm | 195/200 | 136mm | 100mm | 110.0 | 133.0 | 60.0 | 18.98 | 8.17 | DWG | ||
| R100G20R | 1000mm | 200mm | 136mm | 100mm | 110.0 | 133.0 | 60.0 | 18.66 | 6.0 | DWG | ||
| R100G21 | 1000mm | 200/205 | 136mm | 100mm | 110.0 | 137.3 | 60.0 | 14.63 | DWG | |||
| R100G22 | 1000mm | 205/210 | 136mm | 100mm | 110.0 | 141.6 | 60.0 | 15.675 | DWG | |||
| R100G23 | 1000mm | 201/215 | 136mm | 100mm | 110.0 | 145.9 | 60.0 | 15.675 | DWG | |||
| R100G24 | 1000mm | 215/220 | 136mm | 100mm | 110.0 | 150.2 | 60.0 | 16.72 | DWG | |||
| R100G25 | 1000mm | 220/225 | 136mm | 100mm | 110.0 | 154.5 | 60.0 | 16.72 | DWG | |||
| R100G26 | 1000mm | 225/230 | 136mm | 100mm | 110.0 | 158.8 | 45.0 | 16.72 | DWG | |||
| R100G27 | 1000mm | 230/235 | 136mm | 100mm | 110.0 | 163.1 | 45.0 | 17.765 | DWG | |||
| R100G28 | 1000mm | 235/240 | 136mm | 100mm | 110.0 | 167.4 | 45.0 | 17.765 | DWG | |||
| R100G29 | 1000mm | 240/245 | 136mm | 100mm | 110.0 | 171.7 | 45.0 | 18.81 | DWG | |||
| R100G30 | 1000mm | 245/250 | 136mm | 100mm | 110.0 | 176.0 | 45.0 | 18.81 | DWG | |||
| R100G30R | 1000mm | 250mm | 136mm | 100mm | 110.0 | 176.0 | 45.0 | 21.576115 | 9.2 | DWG | ||
| R100G40R | 1000mm | 300mm | 136mm | 100mm | 110.0 | 220.0 | 45.0 | 24.70171 | 13.0 | DWG | ||
| R100G10RM | 500mm | 150mm | 136mm | 100mm | 90.0 | 75.0 | 91.5 | 150.0 | 9.11 | 3.3 | DWG | |
| R100G20RM | 500mm | 200mm | 136mm | 100mm | 90.0 | 110.0 | 133.0 | 120.0 | 10.53 | 6.0 | DWG | |
| R100FH8 | 1000mm | 80mm | 136mm | 100mm | 110.0 | 40.0 | 90.0 | 11.24 | 0.9 | DWG | ||
| R100F00R | 1000mm | 100mm | 136mm | 100mm | 110.0 | 56.0 | 56.0 | 12.28 | 1.5 | DWG | ||
| R100F01 | 1000mm | 100/105 | 136mm | 100mm | 110.0 | 60.9 | 90.0 | 12.45 | 2.7 | DWG | ||
| R100F02 | 1000mm | 105/110 | 136mm | 100mm | 110.0 | 64.3 | 90.0 | 12.86 | 2.93 | DWG | ||
| R100F03 | 1000mm | 110/115 | 136mm | 100mm | 110.0 | 67.7 | 90.0 | 13.32 | 3.27 | DWG | ||
| R100F04 | 1000mm | 115/120 | 136mm | 100mm | 110.0 | 71.1 | 90.0 | 13.73 | 3.46 | DWG | ||
| R100F05 | 1000mm | 120/125 | 136mm | 100mm | 110.0 | 74.5 | 90.0 | 14.16 | 3.84 | DWG | ||
| R100F06 | 1000mm | 125/130 | 136mm | 100mm | 110.0 | 77.9 | 75.0 | 14.57 | 4.05 | DWG | ||
| R100F07 | 1000mm | 130/135 | 136mm | 100mm | 110.0 | 81.3 | 75.0 | 15.097 | 4.35 | DWG | ||
| R100F08 | 1000mm | 135/140 | 136mm | 100mm | 110.0 | 84.7 | 75.0 | 15.44 | 4.58 | DWG | ||
| R100F09 | 1000mm | 140/145 | 136mm | 100mm | 110.0 | 88.1 | 75.0 | 15.87 | 4.92 | DWG | ||
| R100F10 | 1000mm | 145/150 | 136mm | 100mm | 110.0 | 91.5 | 75.0 | 16.35 | 5.140 | DWG | ||
| R100F10R | 1000mm | 150mm | 136mm | 100mm | 110.0 | 91.5 | 48.0 | 15.26 | 3.3 | DWG | ||
| R100F11 | 1000mm | 150/155 | 136mm | 100mm | 110.0 | 96.5 | 75.0 | 15.13 | 5.046 | DWG | ||
| R100F12 | 1000mm | 155/160 | 136mm | 100mm | 110.0 | 100.6 | 75.0 | 15.69 | 5.75 | DWG | ||
| R100F13 | 1000mm | 160/165 | 136mm | 100mm | 110.0 | 104.6 | 75.0 | 16.00 | 5.99 | DWG | ||
| R100F14 | 1000mm | 165/170 | 136mm | 100mm | 110.0 | 108.7 | 75.0 | 16.40 | 6.39 | DWG | ||
| R100F15 | 1000mm | 170/175 | 136mm | 100mm | 110.0 | 112.7 | 75.0 | 16.73 | 6.61 | DWG | ||
| R100F16 | 1000mm | 175/180 | 136mm | 100mm | 110.0 | 116.8 | 60.0 | 17.38 | 6.91 | DWG | ||
| R100F17 | 1000mm | 180/185 | 136mm | 100mm | 110.0 | 120.8 | 60.0 | 17.73 | 7.33 | DWG | ||
| R100F18 | 1000mm | 185/190 | 136mm | 100mm | 110.0 | 124.9 | 60.0 | 18.24 | 7.61 | DWG | ||
| R100F19 | 1000mm | 190/195 | 136mm | 100mm | 110.0 | 128.9 | 60.0 | 18.67 | 7.9 | DWG | ||
| R100F20 | 1000mm | 195/200 | 136mm | 100mm | 110.0 | 133.0 | 60.0 | 18.98 | 8.17 | DWG | ||
| R100F20R | 1000mm | 200mm | 136mm | 100mm | 110.0 | 133.0 | 40.0 | 18.66 | 6.0 | DWG | ||
| R100F21 | 1000mm | 200/205 | 136mm | 100mm | 110.0 | 137.3 | 60.0 | 14.63 | DWG | |||
| R100F22 | 1000mm | 205/210 | 136mm | 100mm | 110.0 | 141.6 | 60.0 | 15.67 | DWG | |||
| R100F23 | 1000mm | 210/215 | 136mm | 100mm | 110.0 | 145.9 | 60.0 | 15.67 | DWG | |||
| R100F24 | 1000mm | 215/220 | 136mm | 100mm | 110.0 | 150.2 | 60.0 | 16.72 | DWG | |||
| R100F25 | 1000mm | 220/225 | 136mm | 100mm | 110.0 | 154.5 | 60.0 | 16.72 | DWG | |||
| R100F26 | 1000mm | 225/230 | 136mm | 100mm | 110.0 | 158.8 | 45.0 | 16.72 | DWG | |||
| R100F27 | 1000mm | 230/235 | 136mm | 100mm | 110.0 | 163.1 | 45.0 | 17.76 | DWG | |||
| R100F28 | 1000mm | 235/240 | 136mm | 100mm | 110.0 | 167.4 | 45.0 | 17.76 | DWG | |||
| R100F29 | 1000mm | 240/245 | 136mm | 100mm | 110.0 | 171.7 | 45.0 | 18.81 | DWG | |||
| R100F30 | 1000mm | 245/250 | 136mm | 100mm | 110.0 | 176.0 | 45.0 | 18.81 | DWG | |||
| R100F30R | 1000mm | 250mm | 136mm | 100mm | 110.0 | 176.0 | 45.0 | 21.57 | 9.2 | DWG | ||
| R100F40R | 1000mm | 300mm | 136mm | 100mm | 110.0 | 220.0 | 45.0 | 24.70 | 13.0 | DWG | ||
| R100F10RM | 500mm | 150mm | 136mm | 100mm | 90.0 | 75.0 | 91.5 | 150.0 | 9.11 | 3.3 | DWG | |
| R100F20RM | 500mm | 200mm | 136mm | 100mm | 90.0 | 110.0 | 133.0 | 120.0 | 10.53 | 6.0 | DWG | |
Lieferbare Abdeckungen
| Material | Design | Belastungsklasse | Code | Befestigungen des KIT | ||
|---|---|---|---|---|---|---|
| Gusseisen | Stöckel Schutz Stegrost | B-125 | FNHX100RGBM | Rapidlock® 8 Schrauben pro LM | DWG | |
| Gusseisen | Stöckel Schutz Stegrost | C-250 | FNHX100RGCM | Rapidlock® 8 Schrauben pro LM | DWG | |
| Gusseisen | Stegrost | D-400 | FNX100RGDM | DWG | ||
| Gusseisen | Stöckel Schutz Stegrost | D-400 | FNHX100RGDM | DWG | ||
| Gusseisen | Längsstegrost | D-400 | FNLHX100RGDM | DWG | ||
| Verzinkter Stahl | Längsstegrost | A-15 | GNLHX100RGA | DWG | ||
| Verzinkter Stahl | Längsstegrost | C-250 | GNLHX100RGC | DWG | ||
| Verzinkter Stahl | Stöckel Schutz Maschenrost | C-250 | GEHX100RGC | DWG | ||
| Verzinkter Stahl | Stöckel Schutz Maschenrost | D-400 | GEHX100RGD | DWG | ||
| Verzinkter Stahl | Schlitzrahmen | D-400 | GRL100ROD | DWG | ||
| Verzinkter Stahl | Schlitzrahmen | D-400 | GRL100RODH150 | DWG | ||
| Verzinkter Stahl | Revisionöffnung | D-400 | GRL100RODMA | DWG | ||
| Verzinkter Stahl | Revisionöffnung | D-400 | GRL100RODMAH150 | Rapidlock® 8 Schrauben pro LM | DWG | |
| Verzinkter Stahl | Schlitzrahmen | D-400 | GRL100RODH150E18 | DWG | ||
| Verzinkter Stahl | Schlitzrahmen | D-400 | GRL100RODE18 | DWG | ||
| Verzinkter Stahl | Schlitzrahmen | D-400 | GRL100RODH200 | DWG | ||
| Verzinkter Stahl | Schlitzrahmen | D-400 | GRL100RODH200E18 | DWG | ||
| Kunststoff | Längsstegrost Schwarz | A-15 | PNLH100RGAM | DWG | ||
| Kunststoff | Längsstegrost Grau | A-15 | PNLH100RGAM-GRIS | |||
| Kunststoff | Stöckel Schutz Stegrost | B-125 | PNH100RGBM | DWG | ||
| Kunststoff | Stöckel Schutz Stegrost | C-250 | PNH100RGCM | DWG | ||
| EINLAUFKÄSTEN UND INSTALLATIONSDETAILS | ||
|---|---|---|
| Einlaufkasten AR100G | DWG | |
| Konstruktionsdetails. Einbau in Pflaster bis zu Belastungklasse C250 | DWG | |
| Konstruktionsdetails. Einbau in Pflaster für die Belastungklasse D400 | DWG | |
| Konstruktionsdetails. Einbau in Pflaster mit Schlitzrahmen bis zu Belastungklasse C250 | DWG | |
| Konstruktionsdetails. Einbau in Pflaster mit Schlitzrahmen für die Belastungklasse D400 | DWG | |
| Konstruktionsdetails. Einbau in Pflaster auf Lagerplatte bis zu Belastungklasse C250 | DWG | |
| Konstruktionsdetails. Einbau in Pflaster auf Lagerplatte für die Belastungklasse D400 | DWG | |
| Konstruktionsdetails. Einbau in Asphalt bis zu Belastungsklasse C250 | DWG | |
| Konstruktionsdetails. Einbau in Asphalt für die Belastungsklasse D400 | DWG | |
| Konstruktionsdetails. Einbau in Asphalt mit Schlitzrahmen bis zu Belastungsklasse C250 | DWG | |
| Konstruktionsdetails. Einbau in Asphalt mit Schlitzrahmen für die Belastungsklasse D400 | DWG | |
| Konstruktionsdetails. Einbau in Beton | DWG | |
| Konstruktionsdetails. Einbau in Beton mit Schlitzrahmen | DWG | |
| Konstruktionsdetails. Einbau an Bordsteinkante | DWG | |
