TECHNISCHE INFORMATION
Hier können Sie den kompletten technischen Katalog im PDF-Format herunterladen:

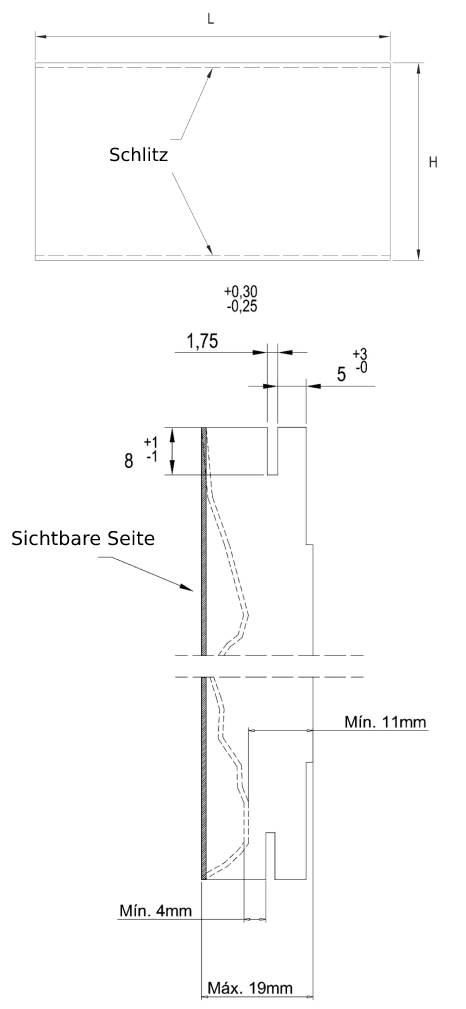

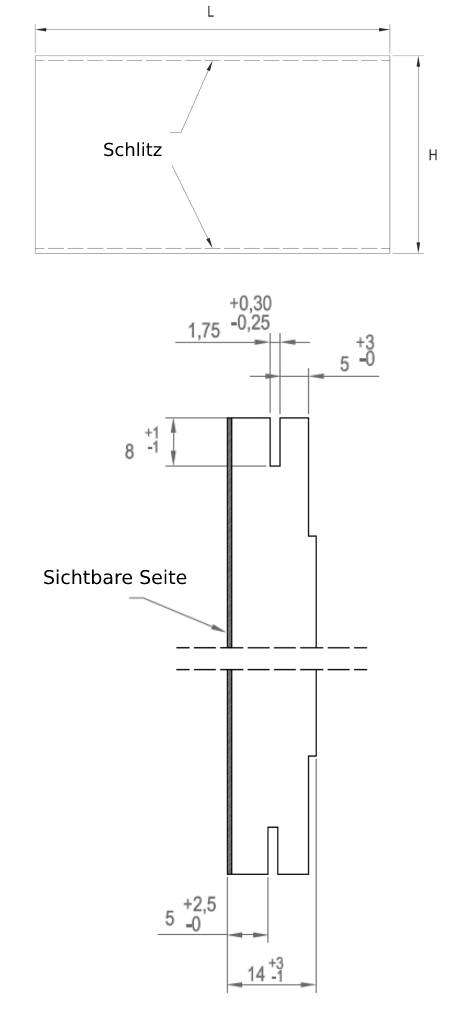

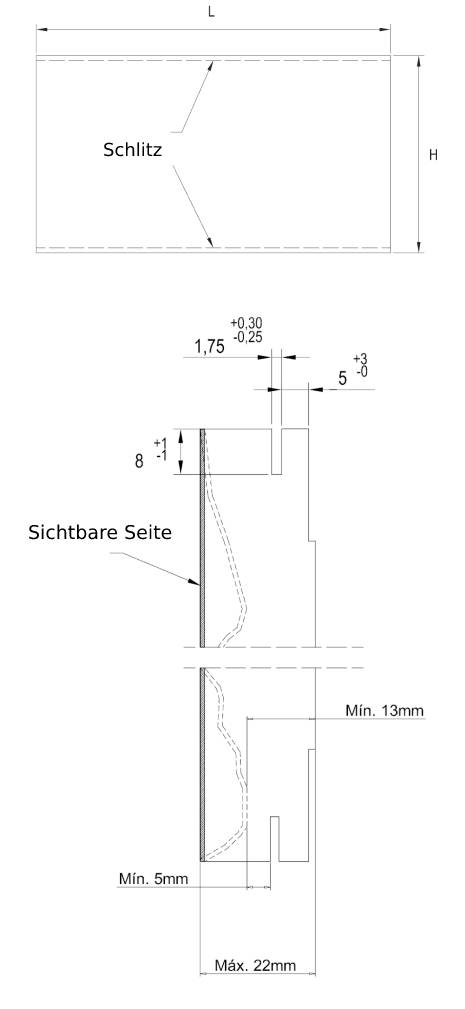

DEN KOMPLETTEN TECHNISCHEN KATALOG HERUNTERLADENFORMATE UND ABMESSUNGEN
VERBORGENES SYSTEM
![Sistema de fachadas colocación horizontal Esquema colocación horizontal](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/sistema-horizontal.jpg/@@images/54a86e59-d1b6-4165-9b40-bbc4f015102b.jpeg)
Horizontales Installationssystem
ABodenplatten
1Durchgehendes invertiertes Startprofil
BBasisverkleidung
2Durchgehendes Führungsprofil
CWärmedämmung
3Durchgehendes Startprofil
4STONEO-Platte
![Anclaje bridado de punto fijo](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-anclaje-bridado-de-punto-fijo.jpg/@@images/038323ea-5b46-4ffc-9afd-bb9cb88e2006.jpeg)
Festpunkt-Flanschverankerung
![Detalle esquina](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-detalle-esquina.jpg/@@images/49ac43a2-f24d-4409-8c4f-dae975130123.jpeg)
Kante mit Y-Profil
![Detalle perfil de arranque y rejilla anti-roedore](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-detalle-perfil-de-arranque-y-rejilla-anti-roedore.jpg/@@images/332d7891-4c95-4c06-87fe-8555200a9ceb.jpeg)
Detail des Startprofils und des
Nagetierschutzgitters
![Detalle Perfil Guía](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-detalle-perfil-guia.jpg/@@images/5e277ec8-7e5c-4105-8e39-0ef63d64e440.jpeg)
Detail des Führungsprofils
![Salida de aire de la cámara en coronación](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-salida-de-aire-de-la-camara-en-coronacion.jpg/@@images/bdbd310d-095f-4ab9-9fb9-faca8fbb32a7.jpeg)
Luftaustritt aus dem
Hohlraum an der Deckplatte
![Tacos de Fijación a cerramientos y forjados. y Anclaje libre de punto deslizante](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-tacos-de-fijacion-a-cerramientos-y-forjados-y-anclaje-libre-de-punto-deslizante.jpg/@@images/cafe80b6-905d-4a83-ad75-2384b61a8022.jpeg)
Ankerdübel zur
Befestigung an
Gebäudehüllen
und Bodenplatten. Gleitpunktfreier
Anker
![Sistema vertical oculto.jpg Colocacion vertical](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/sistema-vertical-web.jpg/@@images/1b04f4bc-70a6-4308-ad05-5a6b8f7d2c0b.jpeg)
Vertikales system
ABodenplatten
1Durchgehendes invertiertes Startprofil
BBasisverkleidung
2Durchgehendes Führungsprofil
CWärmedämmung
3Durchgehendes Startprofil
4STONEO-Platte
![Rejilla antiroedores](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-2-rejilla-antiroedores.jpg/@@images/eaf8e869-0714-43b5-82eb-8edfa158289c.jpeg)
Nagetierschutzgitter
![Anclaje doble- Anclaje bridado de punto fijo](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-anclaje-doble-anclaje-bridado-de-punto-fijo.jpg/@@images/b5eddc90-35c3-48a2-83e5-c5b15ddf1c2b.jpeg)
Doppelanker
![Esquina con perfil en Y](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-esquina-con-perfil-en-y.jpg/@@images/33cd43f5-1394-4c1d-8e2b-370071e82f8b.jpeg)
Kante mit Y-Profil
![Salidad de aire de la cámara de coronación](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-salidad-de-aire-de-la-camara-de-coronacion.jpg/@@images/ccc32dfe-1b7b-4205-8c89-798f263df393.jpeg)
Luftaustritt aus dem Hohlraum
der Deckenplatte
PROFILTYPEN FÜR VERDECKTES BEFESTIGUNGSSYSTEM
Durchgehende Profile mit geschlossener Fuge
PROFILTYPEN
Durchgehende Profile mit offener Fuge
![perfil-visto1.jpg perfil visto](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/perfil-visto1.jpg)
Tiefes Führungsprofil 8 mm
![perfil-visto2.jpg perfil visto](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/perfil-visto2.jpg)
Sichtbares Führungsprofil 15 mm
![perfil-visto3.jpg perfil visto](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/perfil-visto3.jpg)
Tiefes Führungsprofil 20 mm - 50 mm
![perfil-visto4.jpg perfil visto](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/perfil-visto4.jpg)
Sichtbares Startprofil 10 mm
SICHTBARES SYSTEM
![Sistema de colocación Visto Sistema visto](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/visto.jpg/@@images/794ae8fb-822a-41bc-84bc-b57d4e7c110c.jpeg)
ABodenplatten
1Punktklemme Deckplatte
BBasisverkleidung
2Punktklemme
CWärmedämmung
3Punktklemme Startprofil
4Stoneo-Platte
![Visto-Perfil de esquina.jpg](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/visto-perfildeesquina.jpg/@@images/c66392b4-a6e8-4d17-9c85-67b3518586bc.jpeg)
Kantenprofil
![Visto-Detalle grapa puntual](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/visto-detallegrapapuntual.jpg/@@images/7254bbf0-51f4-4fb8-9247-e502103678ee.jpeg)
Detail Punktklemme
![Visto-Grapa esquina.jpg](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/visto-grapaesquina.jpg/@@images/acf3f2fb-cbee-4cd0-9493-2f168401e2ad.jpeg)
Kantenklemme
![Visto-Grapa coronación.jpg](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/visto-grapacoronacion.jpg/@@images/bbe6ebca-b661-49b7-a0cc-38fea3bb794f.jpeg)
Klemme Deckplatte
![Visto-Grapa arranque.jpg](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/visto-grapaarranque.jpg/@@images/afa01538-b2d8-4ccf-9970-292c4fd47970.jpeg)
Klemme Startprofil
INSTALLATIONSSYSTEM K-SLAT
![Sistema de colocación K-Slat Sistema K-Slat](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/slat.jpg/@@images/766bb106-be5b-4569-9ef0-c63f78f6d60b.jpeg)
ABodenplatten
1Durchgehendes invertiertes Startprofil
BBasisverkleidung
2Durchgehendes Führungsprofil 8 mm
CWärmedämmung
3Sitchbares Punkt-Startprofil
4STONEO-platte K-Slat
![Perfil de arranque y rejilla antiroedores_s](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/01-perfil-de-arranque-y-rejilla-antiroedores_s.jpg/@@images/8a2c3a20-7a11-4057-a0bd-588646e2c272.jpeg)
Startprofil und
nagetiersicheres Gitter
![Detalle perfil guia 8mm_s](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/02-detalle-perfil-guia-8mm_s.jpg/@@images/2451b8da-fc1b-4d10-8d5a-26fb838d1dda.jpeg)
Detail des Führungsprofils 8 mm
![Detalle esquina con perfil Y_s](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/03-detalle-esquina-con-perfil-y_s.jpg/@@images/17df8c02-a5ac-44ac-9197-6bbd17601b8f.jpeg)
Kantendetail mit Y-Profil
![Detalle montante perfil guia 8mm_s](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/04-detalle-montante-perfil-guia-8mm_s.jpg/@@images/09691bca-0878-4cce-b259-4b119fd7be39.jpeg)
Detail des Führungsprofils am Pfosten 8 mm
![Detalle perfil coronacion_s](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/05-detalle-perfil-coronacio2560un_s.jpg/@@images/2fc073ca-579e-4e4e-83fa-d8f58f6b4f60.jpeg)
Detail des Profils der Deckplatte
KANTENTYPEN
![Esquina en X esquina x](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/esquinax.jpg/@@images/f6ee83f1-403a-4c8c-b2c5-7ee1f4fc9caf.jpeg)
KANTE IN X
![Esquina en Z esquina z](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/esquinaz.jpg/@@images/1040fca6-f9e5-4944-9ed9-8dec8dd00566.jpeg)
KANTE IN Z
![Esquina en Y esquina y](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/esquinay.jpg/@@images/b4d75152-2106-4b37-9bda-36fffb8ced55.jpeg)
KANTE IN Y
![Esquina en 45º Inglete Esquina en 45](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/esquina45.jpg/@@images/0bafdd5a-40f8-4ae5-ae23-d5b18266da4a.jpeg)
45º GEHRUNG
