Costco Sestao Shopping Centre, (Biscay - Spain)
Tailored drainage solutions for every area
At ULMA, we understand that every project is unique. Our work on the Costco Sestao Shopping Centre in Bizkaia (The Basque Country, Spain) exemplifies our ability to design custom-made solutions. In this project, we didn’t just install drainage systems; we developed specific solutions for each area, ensuring functionality, efficiency, and durability.
What are you working on?
Let us help you find the perfect drainage solution for your project.
Three areas, three drainage solutions

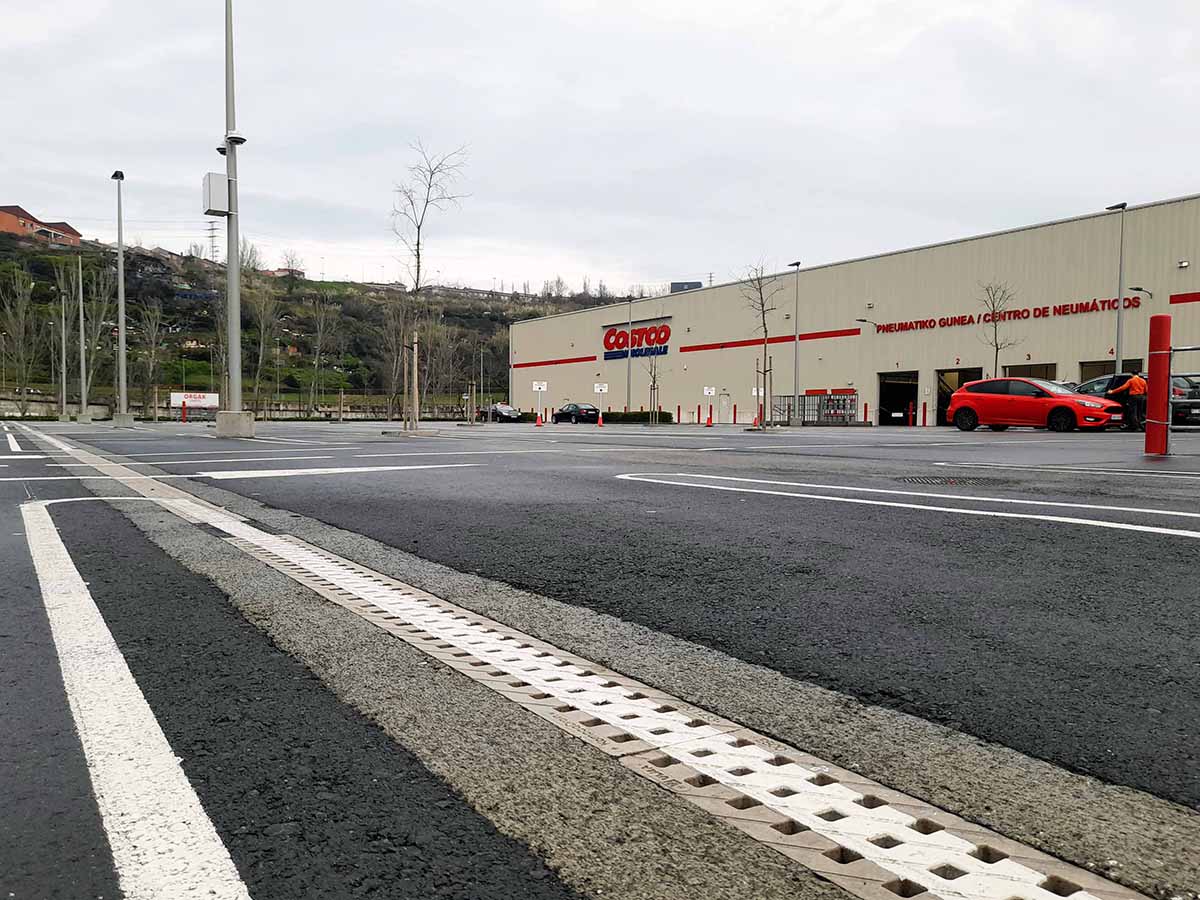

1. Central access area: built to withstand heavy traffic
Imagine a space constantly crossed by trailers, forklifts, and shopping carts. Here, we installed the KompaqDrain® Industry KVE150, a monolithic channel with an integrated grating.
Key features:
- MAX-FLOW® design that optimises drainage capacity, even in areas with no gradient.
- Exceptional resistance to torsional forces and vibrations, making it ideal for heavy traffic and small wheels.
- Non-porous material for durability and corrosion resistance.
This channel not only performs its function but also endures the demands of a busy car park during peak hours.

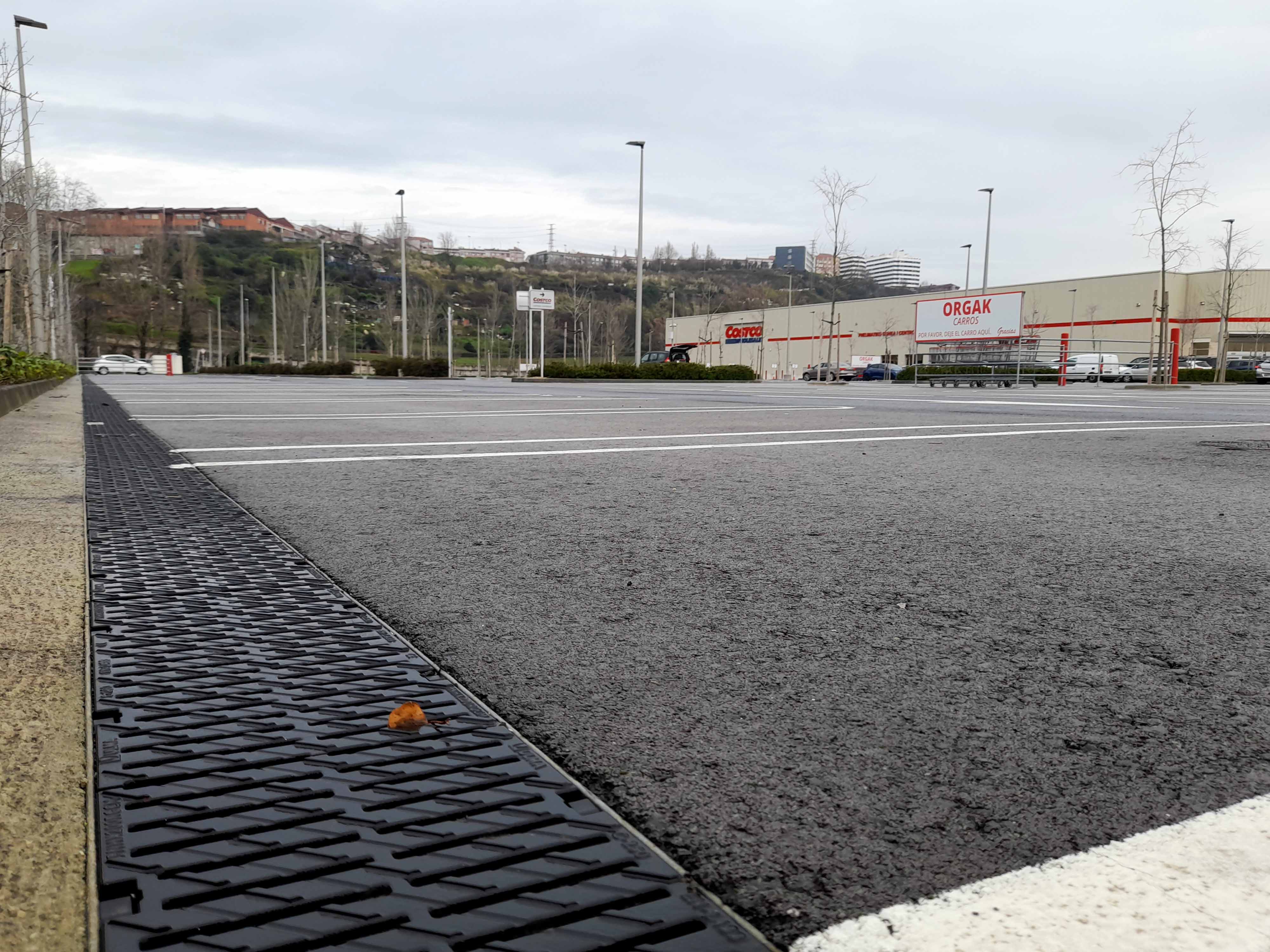

2. Parking perimeter: speed and stability
For lower-traffic areas, we chose MultiV+® channels (R200G00R), combining high drainage speed with easy installation.
Advantages of the MultiV+ system:
- Rapidlock® screwless fastening system for quick and secure installation.
- Load class up to D400, offering stability and durability across the entire perimeter.
- High-speed water drainage capacity for expansive areas.

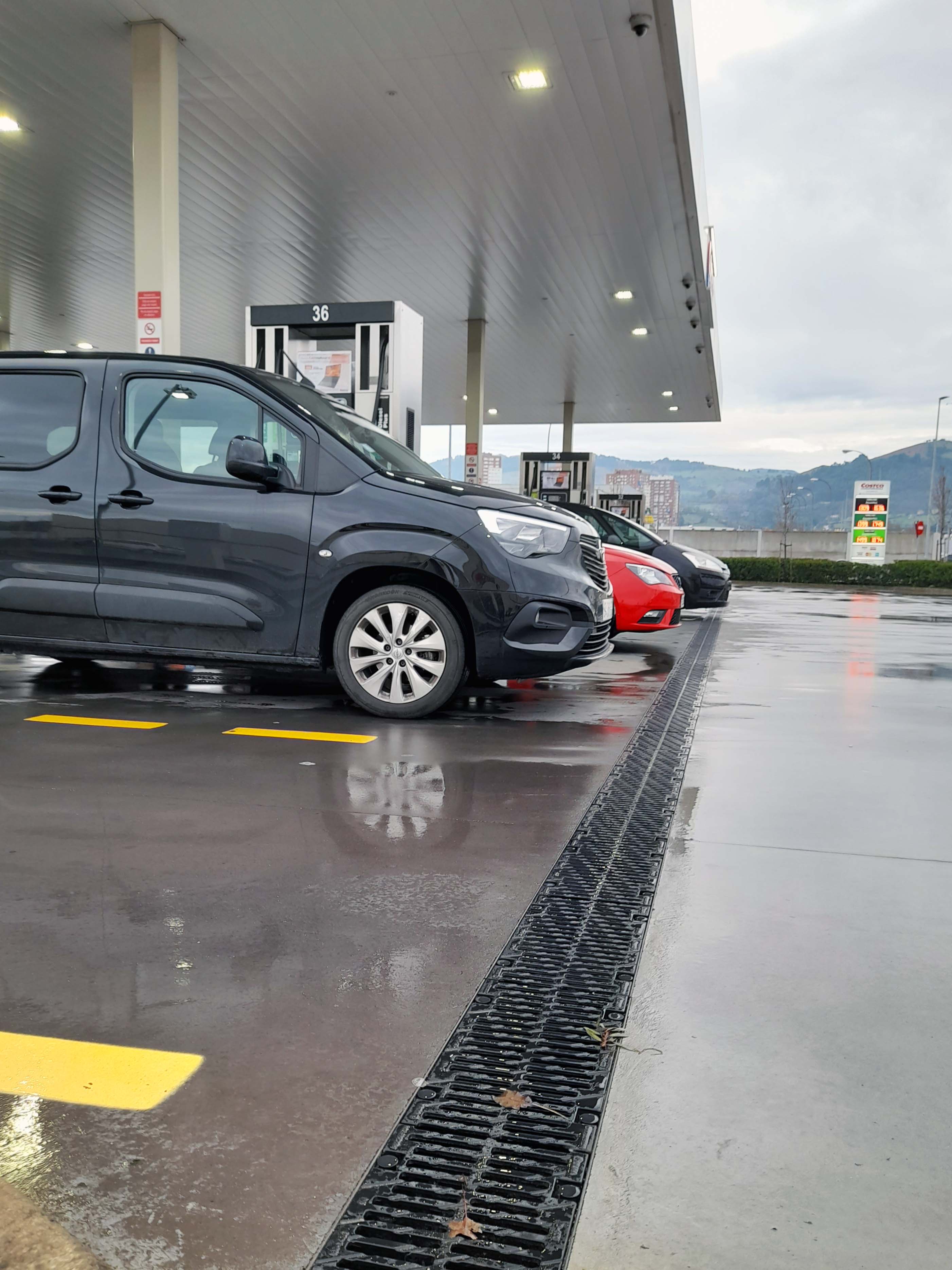

3. Petrol station: safety first
The petrol station is one of the most critical areas in terms of safety. For this reason, we installed SM250F and SM200F channels, reinforced with galvanised steel edges.
Why they’re ideal for this area:
- Resist heavy traffic loads (up to F900).
- Eight fixation points per metre ensure total stability.
- Efficient water evacuation to prevent issues in case of oil or petrol spills.
ULMA Engineering Office: more than just drainage
The success of this project highlights the value of our Engineering Office, which provides all the services needed to tackle complex works. Our goal is simple: let us take care of the details while you take the first step and contact us.
CONTACT ULMA’S ENGINEERING OFFICE
TECHNICAL DATASHEET:
- PROJECT: Costco Shopping Centre.
- LOCATION: Sestao, Bizkaia (Basque Country).
- SOLUTIONS INSTALLED: KompaqDrain Industry channels, MultiV+ channels, and Civil-S channels.
- CONSTRUCTION COMPANY: Vías y Construcciones S.A.
- CLIENT: Costco
