ULMA urban drainage solution in the port and commercial area of Bandol
The building company NGE Guintoli has once again chosen to work with our drainage solutions.
This time we are talking about the redevelopment project in the port and commercial area of Bandol in France.
The objective was to provide a new urban drainage system for this space in the city centre.
To do this, we supplied channels from the S and F ranges for civil works with hidden single-slot grating.
Why?
The customer was aware of us through the solutions we had already supplied to them for other projects. They also knew that at ULMA we are more than capable of determining the perfect solution for any project, because we have an ally on our side: our Optimal-Drain multiplatform solution.
For this project, the technical-sales department performed a hydraulic study. The report gives us the data we need to validate the system, so we can precisely identify the most suitable channels for each area.
Looking for a drainage solution and don’t know which one to go for? Contact our technical sales department for personalised advice.
Hidden drainage: S and F systems with single-slot grating
The S & F channels are polymer concrete drainage channels for civil works. The hidden single-slot grating was chosen for this project as it is an urban area.

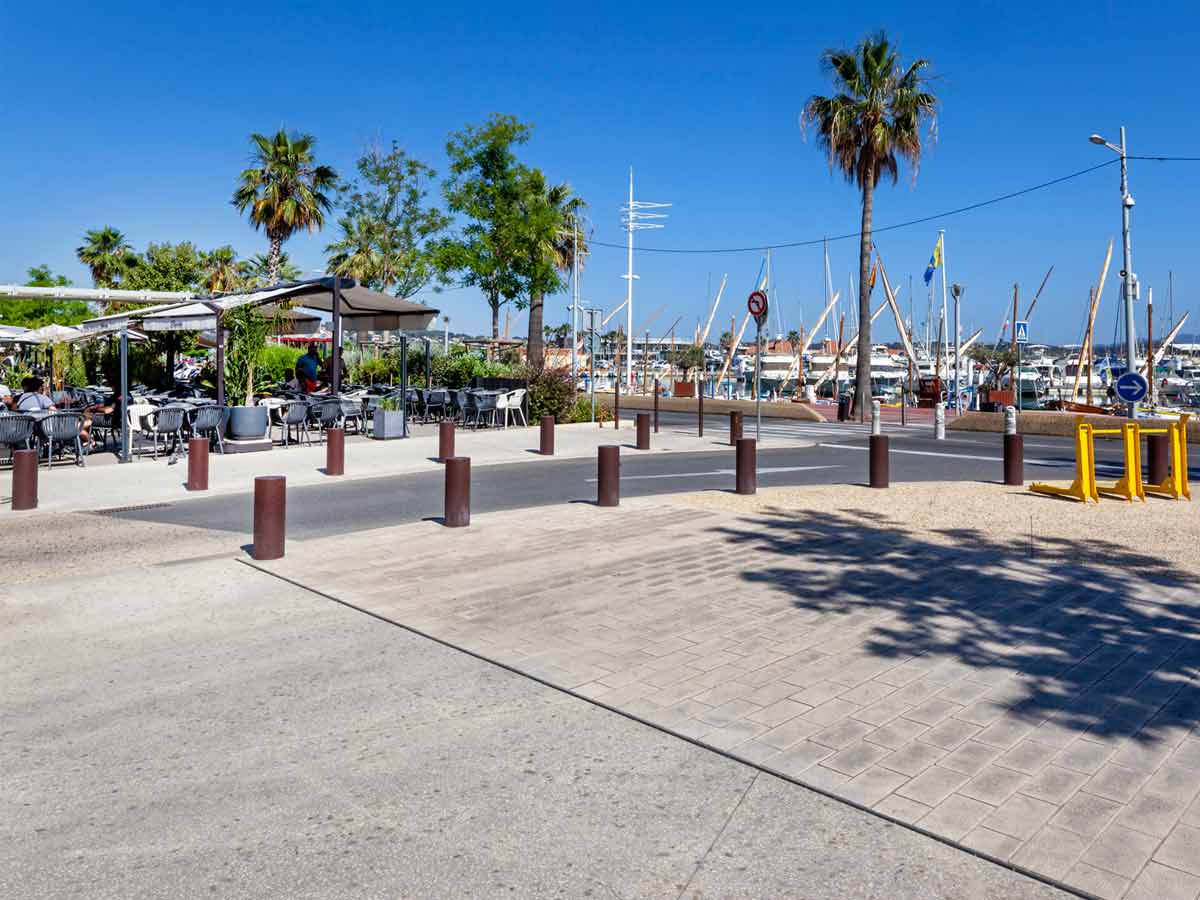

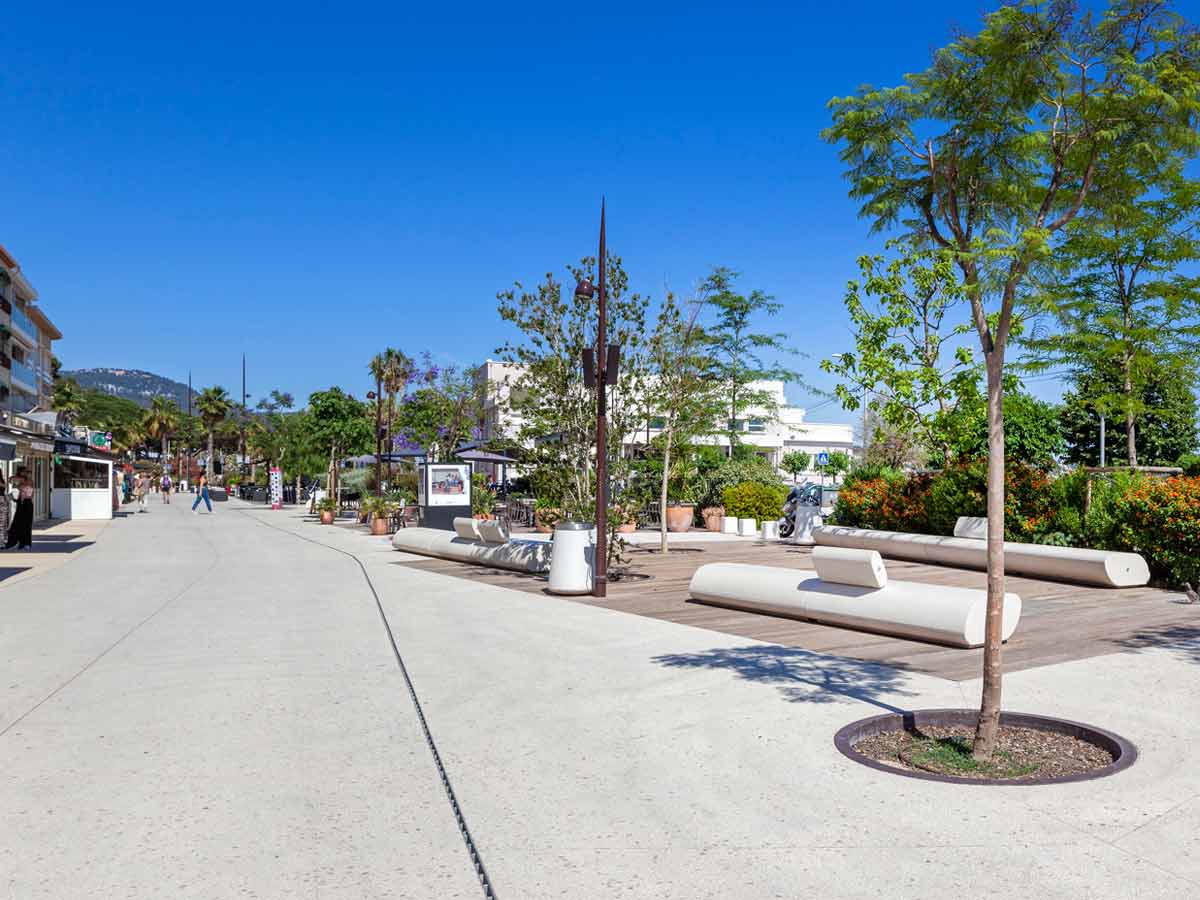

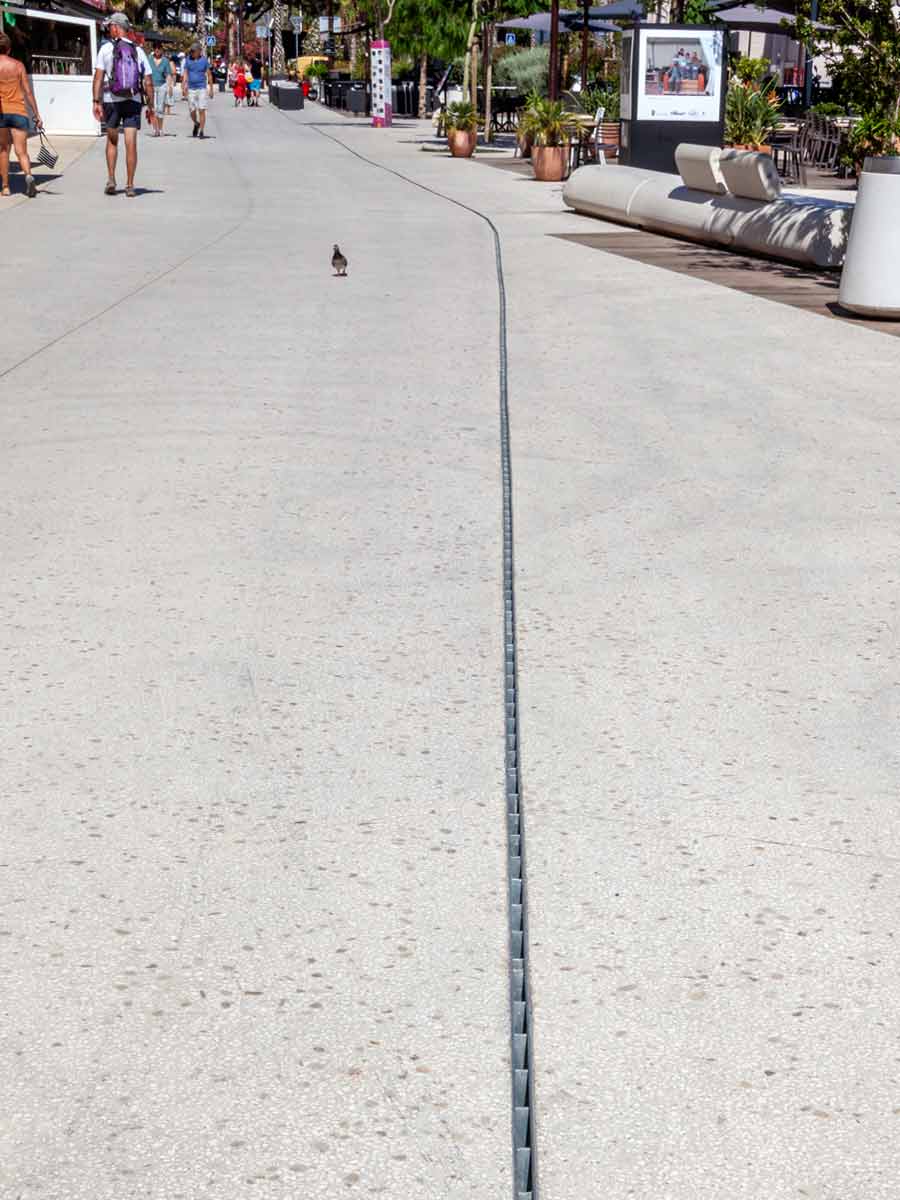

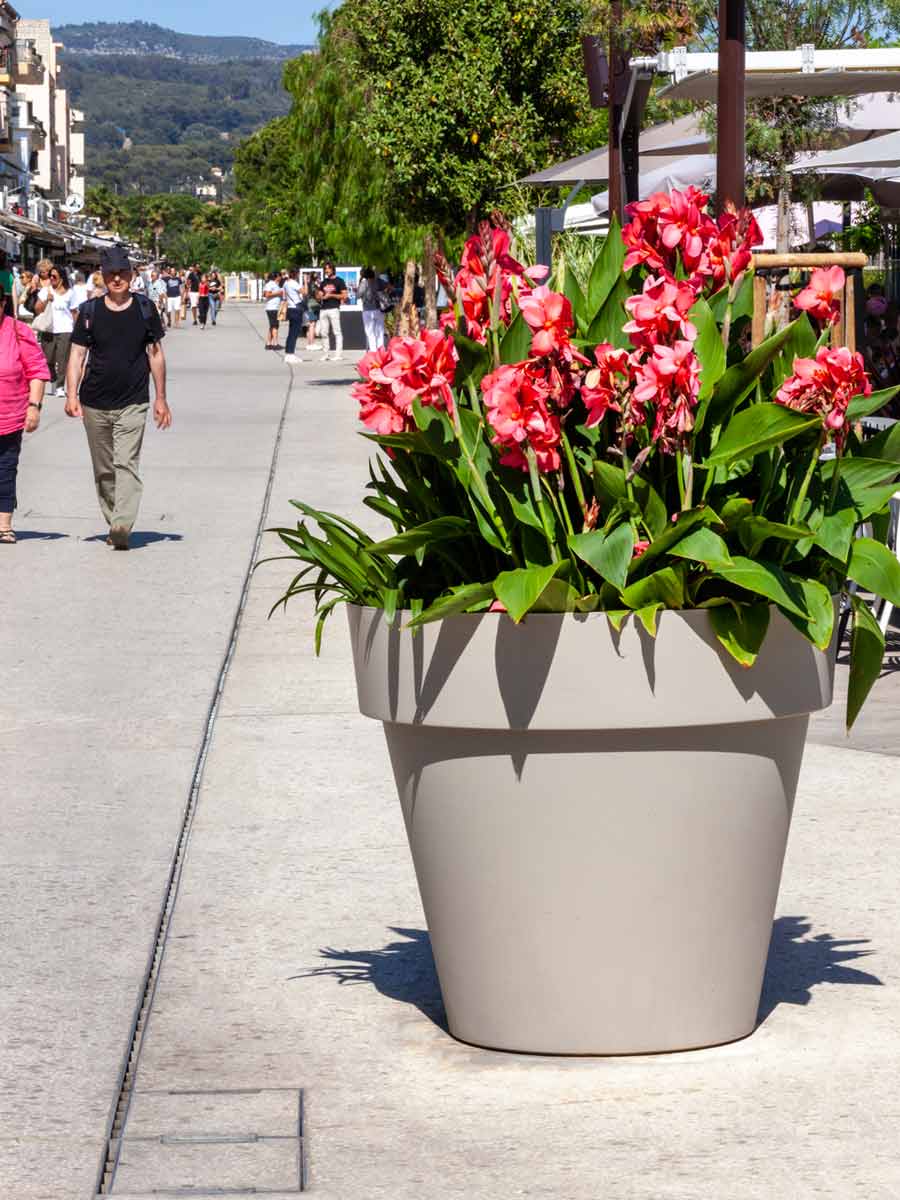

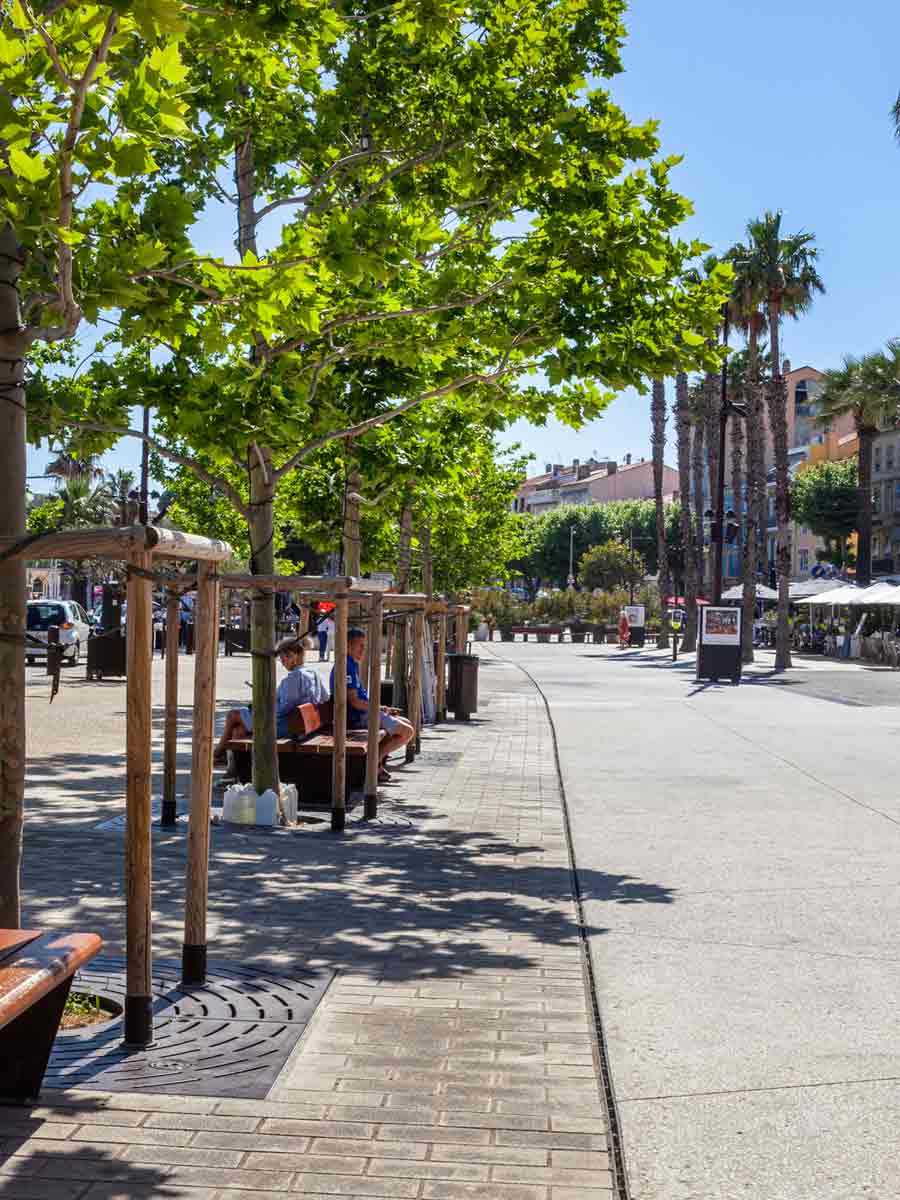

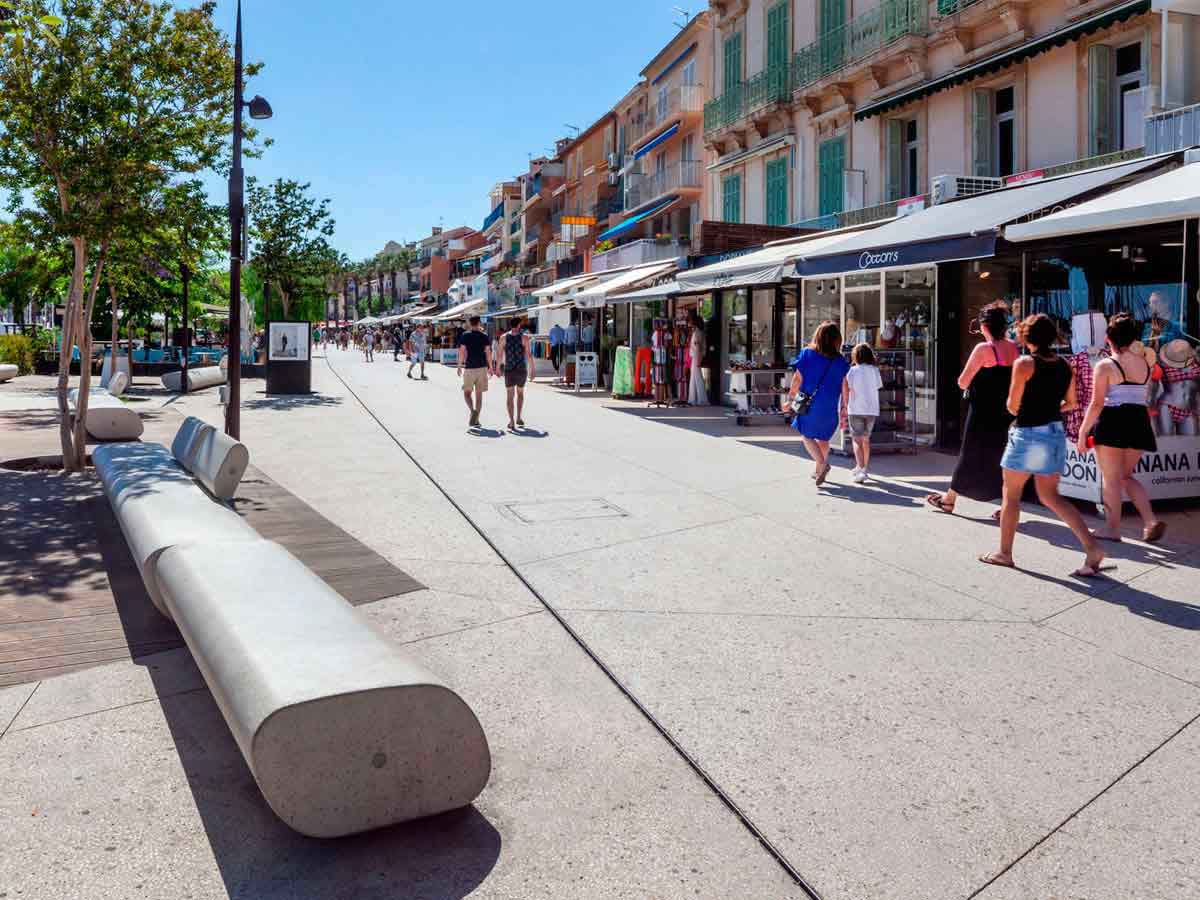

This hidden drainage solution has a minimal aesthetic impact and is installed underground, as shown in the photos, where you can only barely make out a straight line in the pavement.
Discover our slot gratings catalogue
Technical Data:
Building company: NGE GUINTOLI
Location: port and commercial area of Bandol in France.
Drainage system used:
Drainage channels for heavy loads Civil F model F300K000R + GRL300FOD hidden side grating
Drainage channels for heavy loads and low heights Civil S model S350F + GR300FOD hidden grating
Channel for heavy loads Civil F model F400K00R + FNX400FDTM slotted ductile iron grating
Linear metres installed: 477 m
Photography: Wenzel Fotografía Arquitectura
