SU100

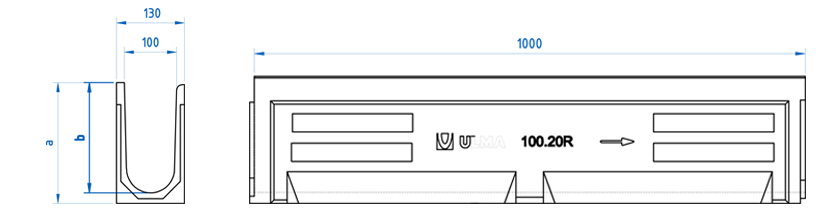

Polymer concrete Linear Drainage Channel ULMA, type SU100: External width 130mm; Internal width 100mm and available with overall heights between 180mm and 230mm. Suitable for cascaded type slope to collect rain water in 1 meter long units. Locking system consists of locking bar CS100 and screws.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| SU100.18R | 1000mm | 180mm | 130mm | 100mm | 110mm | 110mm | 145.0 | 65.0 | 15.70008 | 6.70624 | DWG | |
| SU100.20R | 1000mm | 205mm | 130mm | 100mm | 110mm | 110mm | 169.0 | 52.0 | 18.491275 | 8.54492 | DWG | |
| SU100.23R | 1000mm | 230mm | 130mm | 100mm | 110mm | 110mm | 193.0 | 52.0 | 20.29808 | 10.52094 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | B-125 | FNX100UCBM | 2 locking bars and 2 screws per linear metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX100UCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Slotted (Standard) | A-15 | GN100UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Perforated | A-15 | GP100UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX100UCB33 | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX100UCB | 2 locking bars and 2 screws per linear metre | DWG | |
| Stainless Steel | Slotted (Standard) | A-15 | IN100UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Stainless Steel | Perforated | A-15 | IP100UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Long. Slotted Black | A-15 | PNLH100UCAM | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Long. Slotted Grey | A-15 | PNLH100UCAM GRIS | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Long. Slotted Beige | A-15 | PNLH100UCAM BG | 2 locking bars and 2 screws per linear metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AU100 Sump Unit drawing | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver onto a load-bearing slab | DWG | |
