SU200

SU200

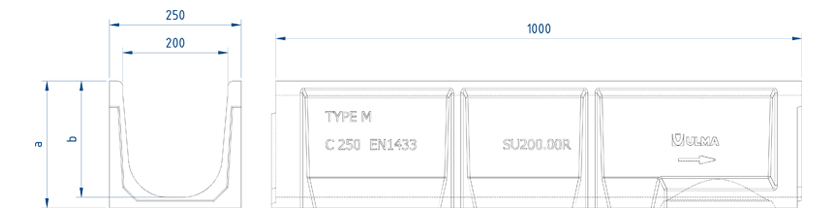

Polymer concrete Linear Drainage Channel ULMA, type SU200: External width 250mm; Internal width 200mm; Available with overall heights between 240mm and 390mm. Suitable for cascaded type slope to collect rain water in 1 metre long units. Locking system consists of locking bar CS200 and screws.

Channel options

CHANNEL CODE L
(mm)
Height
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Weight
(Kg)
Qref
(l/s)
Exterior Interior Vert. Horiz.
SU200.00R 1000mm 240mm 250mm 200mm 200mm - 385.0 28.0 31.91012 22.69745 DWG PDF
SU200.10R 1000mm 290mm 250mm 200mm 200mm - 465.0 28.0 35.88112 30.46417 DWG PDF
SU200.20R 1000mm 340mm 250mm 200mm 200mm - 540.0 21.0 42.15112 38.66577 DWG PDF
SU200.30R 1000mm 390mm 250mm 200mm 200mm - 620.0 21.0 47.68962 48.19489 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) C-250 FNX200UCCM 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Slotted (Standard) A-15 GN200UCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Standard) B-125 GEX200UCB33 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Heelproof) B-125 GEHX200UCB 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Slot C-250 GR200UOC Click. Without Screws DWG PDF
Galvanized Steel Double Slot C-250 GDR200UOC Click. Without Screws DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AU200 Sump Unit drawing DWG PDF
AU200S+A200I+A200B Sump Unit drawing DWG PDF
AU200S+A200B Sump Unit drawing DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
