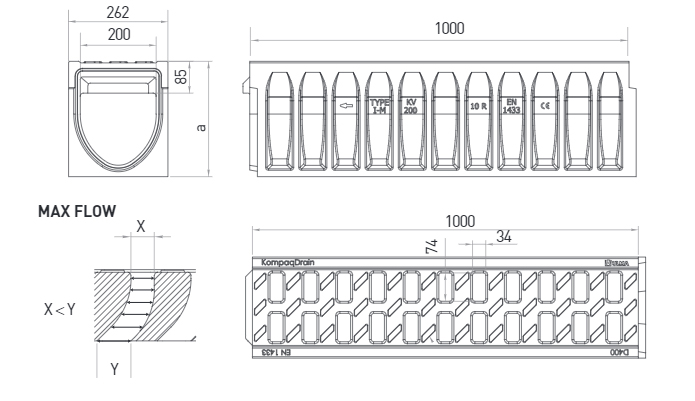

Linear Drainage Channel model ULMA KompaqDrain® Traffic KVFD200, with an integral grating, presented in one-piece and manufactured by high resistant Polymer Concrete. Vandal – proof and corrosion resistant. Load class up to D-400, for all type of vehicles crossing. With “V” optimized shaped and capture holes with MAX-FLOW® geometry: self-cleaning effect at a low flow, increase at maximum flow and positive opening in order to avoid dirt blockage, for areas without slope. Active surface for cutting of water sheet and for its driving to uptake holes and with non-slippery protuberances. Male and female horizontal and vertical alignment and perimetral preformed groove to facilitate joint sealing in 360º. The register and the sump unit include: cast iron grating FNX200FTDM, lateral preforms for horizontal outlets on each side and lateral preforms for connections in T, L and in cross.

Channel options

CHANNEL CODE L
(mm)
Height
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Weight
(Kg)
Exterior Interior Vert. Horiz.
KVFD200.10R 1000mm 305mm 262mm 200mm 318.0 12.0 78.0 DWG PDF
KVFD200.30R 1000mm 505mm 262mm 200mm 718.0 8.0 101.0 DWG PDF
KVFD200.50R 1000mm 705mm 262mm 200mm 1118.0 8.0 131.0 DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
Register AKVFD200MF DWG PDF
Sump Unit AKVFD200MF.R +AKVF200I + AKVF200B DWG PDF
Installation details. Paver up to loading class C250 DWG PDF
Installation details. Paver for loading class D400 DWG PDF
Installation details. Asphalt Longitudinal to the traffic direction DWG PDF
Installation details. Asphalt Transversal to the traffic direction up to loading class C250 DWG PDF
Installation details. Asphalt Transversal to the traffic direction for loading class D400 DWG PDF
Installation details. Concrete Longitudinal to the traffic direction DWG PDF
Installation details. Concrete Transversal to the traffic direction DWG PDF
