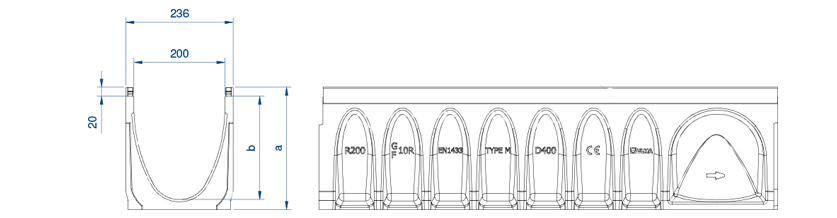

Polymer concrete Linear Drainage Channel ULMA, type multiV+ R200G; External width 236mm, Internal width 200mm, with overall heights between 80 and 370mm; suitable for cascade-type slopes to collect rainwater; sections 1 LM in length; optimized V-shape with self-cleaning effect; especially designed for channel runs with no longitudinal slope; galvanized steel edges for lateral protection; fast RapidLock® boltless fastening system or screw system with 8 fastening points per LM

Channel options

CHANNEL CODE L
(mm)
Height
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Weight
(Kg)
Qref
(l/s)
Exterior Interior Vert. Horiz.
R200GH8 1000mm 80mm 236mm 200mm 160 79 44 1.9 DWG PDF
R200GH12 1000mm 120mm 236mm 200mm 160 159 32 5.8 DWG PDF
R200G000R 1000mm 170mm 236mm 200mm 200 204 35 25.24 8.4 DWG PDF
R200G00R 1000mm 220mm 236mm 200mm 200 284 28 28.94 14.1 DWG PDF
R200G01 1000mm 220/225 236mm 200mm 200 294.6 28 29.58 19.80793 DWG PDF
R200G02 1000mm 225/230 236mm 200mm 200 302.7 28 29.99 20.58417 DWG PDF
R200G03 1000mm 230/235 236mm 200mm 200 310.9 28 30.28 21.34979 DWG PDF
R200G04 1000mm 235/240 236mm 200mm 200 319 28 30.71 22.09866 DWG PDF
R200G05 1000mm 240/245 236mm 200mm 200 327.2 28 31.27 22.80319 DWG PDF
R200G06 1000mm 245/250 236mm 200mm 200 335.3 21 31.70 23.74044 DWG PDF
R200G07 1000mm 250/255 236mm 200mm 200 343.5 21 31.13 24.40467 DWG PDF
R200G08 1000mm 255/260 236mm 200mm 200 351.6 21 32.52 25.26641 DWG PDF
R200G09 1000mm 260/265 236mm 200mm 200 359.8 21 32.93 26.12954 DWG PDF
R200G10 1000mm 265/270 236mm 200mm 200 368 21 33.45 26.94583 DWG PDF
R200G10R 1000mm 270mm 236mm 200mm 200 368 28 33.44 21 DWG PDF
R200G11 1000mm 270/275 236mm 200mm 200 388.4 21 33.60 27.72844 DWG PDF
R200G12 1000mm 275/280 236mm 200mm 200 396.1 21 34.08 DWG PDF
R200G13 1000mm 280/285 236mm 200mm 200 403.8 21 34.55 DWG PDF
R200G14 1000mm 285/290 236mm 200mm 200 411.6 21 34.98 DWG PDF
R200G15 1000mm 290/295 236mm 200mm 200 419.3 21 35.26 DWG PDF
R200G16 1000mm 295/300 236mm 200mm 200 427 21 35.47 DWG PDF
R200G17 1000mm 300/305 236mm 200mm 200 434.8 21 36.30 DWG PDF
R200G18 1000mm 305/310 236mm 200mm 200 442.5 21 36.67 DWG PDF
R200G19 1000mm 310/315 236mm 200mm 200 450.2 21 37.13 DWG PDF
R200G20 1000mm 315/320 236mm 200mm 200 458 21 37.49 DWG PDF
R200G20R 1000mm 320mm 236mm 200mm 200 458 21 37.51 29.2 DWG PDF
R200G30R 1000mm 370mm 236mm 200mm 200 542 21 41.49 38.4 DWG PDF
R200G00RM 500mm 220mm 236mm 200mm 160 125 284 19.82 14.1 DWG PDF
R200G10RM 500mm 270mm 236mm 200mm 160 160 368 21.79 21 DWG PDF
R200G20RM 500mm 320mm 236mm 200mm 160 200 458 23.72 29.2 DWG PDF
R200FH8 1000mm 80mm 236mm 200mm 160 79 44 1.9 DWG PDF
R200FH12 1000mm 120mm 236mm 200mm 160 159 32 5.8 DWG PDF
R200F000R 1000mm 170mm 236mm 200mm 200 204 35 25.24 8.4 DWG PDF
R200F00R 1000mm 220mm 236mm 200mm 200 284 28 28.94 14.1 DWG PDF
R200F01 1000mm 220/225 236mm 200mm 200 294.6 28 29.58 19.80793 DWG PDF
R200F02 1000mm 225/230 236mm 200mm 200 302.7 28 29.99 20.58417 DWG PDF
R200F03 1000mm 230/235 236mm 200mm 200 310.9 28 30.28 31.34979 DWG PDF
R200F04 1000mm 235/240 236mm 200mm 200 319 28 30.71 22.09866 DWG PDF
R200F05 1000mm 240/245 236mm 200mm 200 327.2 28 31.27 22.80319 DWG PDF
R200F06 1000mm 245/250 236mm 200mm 200 335.3 21 31.70 23.74044 DWG PDF
R200F07 1000mm 250/255 236mm 200mm 200 343.5 21 32.13 24.40467 DWG PDF
R200F08 1000mm 255/260 236mm 200mm 200 351.6 21 32.52 25.26641 DWG PDF
R200F09 1000mm 260/265 236mm 200mm 200 359.8 21 32.93 26.12954 DWG PDF
R200F10 1000mm 265/270 236mm 200mm 200 368 21 33.45 26.94583 DWG PDF
R200F10R 1000mm 270mm 236mm 200mm 200 368 21 33.44 21 DWG PDF
R200F11 1000mm 270/275 236mm 200mm 200 388.4 21 33.60 27.72844 DWG PDF
R200F12 1000mm 275/280 236mm 200mm 200 396.1 21 34.08 DWG PDF
R200F13 1000mm 280/285 236mm 200mm 200 403.8 21 34.55 DWG PDF
R200F14 1000mm 285/290 236mm 200mm 200 411.6 21 34.98 DWG PDF
R200F15 1000mm 290/295 236mm 200mm 200 419.3 21 35.26 DWG PDF
R200F16 1000mm 295/300 236mm 200mm 200 427 21 35.47 DWG PDF
R200F17 1000mm 300/305 236mm 200mm 200 434.8 21 36.30 DWG PDF
R200F18 1000mm 305/310 236mm 200mm 200 442.5 21 36.67 DWG PDF
R200F19 1000mm 310/315 236mm 200mm 200 450.2 21 37.13 DWG PDF
R200F20 1000mm 315/320 236mm 200mm 200 458 21 37.49 DWG PDF
R200F20R 1000mm 320mm 236mm 200mm 200 458 21 37.51 29.2 DWG PDF
R200F30R 1000mm 370mm 236mm 200mm 200 542 21 41.49 38.4 DWG PDF
R200F00RM 500mm 220mm 236mm 200mm 160 125 284 19.82 14.1 DWG PDF
R200F10RM 500mm 270mm 236mm 200mm 160 160 368 21.79 21 DWG PDF
R200F20RM 500mm 320mm 236mm 200mm 160 200 458 23.72 29.2 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Heelproof) C-250 FNHX200RGCM Rapidlock® with 8 locking points per LM DWG PDF
Ductile Cast Iron Slotted (Standard) D-400 FNX200RGDM Rapidlock® with 8 locking points per LM DWG PDF
Ductile Cast Iron Slotted (Heelproof) D-400 FNHX200RGDM Rapidlock® with 8 locking points per LM DWG PDF
Ductile Cast Iron Slotted (Longitudinal) D-400 FNLHX200RGDM Rapidlock® with 8 locking points per LM DWG PDF
Ductile Cast Iron Closed D-400 FC200RGDEM Rapidlock® with 8 locking points per LM DWG PDF
Galvanized Steel Mesh (Heelproof) C-250 GEHX200RGC Rapidlock® with 8 locking points per LM DWG PDF
Galvanized Steel Single Slot D-400 GRL200ROD Rapidlock® with 8 locking points per LM DWG PDF
Galvanized Steel Single Slot D-400 GRL200RODH150 Rapidlock® with 8 locking points per LM DWG PDF
Galvanized Steel Single Slot D-400 GRL200RODH200 Rapidlock® with 8 locking points per LM DWG PDF
Galvanized Steel Single Slot D-400 GRL200RODE18 Rapidlock® with 8 locking points per LM DWG PDF
Galvanized Steel Single Slot D-400 GRL200RODH150E18 Rapidlock® with 8 locking points per LM DWG PDF
Galvanized Steel Single Slot D-400 GRL200RODH200E18 Rapidlock® with 8 locking points per LM DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AR200G Sump Unit drawing DWG PDF
Installation details. Paver up to loading class C250 DWG PDF
Installation details. Paver for loading class D400 DWG PDF
Installation details. Paver with Slot grating up to loading class C250 DWG PDF
Installation details. Paver with Slot grating for loading class D400 DWG PDF
Installation details. Paver onto a load-bearing slab up to loading class C250 DWG PDF
Installation details. Paver onto a load-bearing slab for loading class D400 DWG PDF
Installation details. Asphalt up to loading class C250 DWG PDF
Installation details. Asphalt for loading class D400 DWG PDF
Installation details. Asphalt with Slot grating up to loading class C250 DWG PDF
Installation details. Asphalt with Slot grating for loading class D400 DWG PDF
Installation details. Concrete DWG PDF
Installation details. Concrete with Slot grating DWG PDF
Installation details. Installation beside Kerb DWG PDF
