F300MF

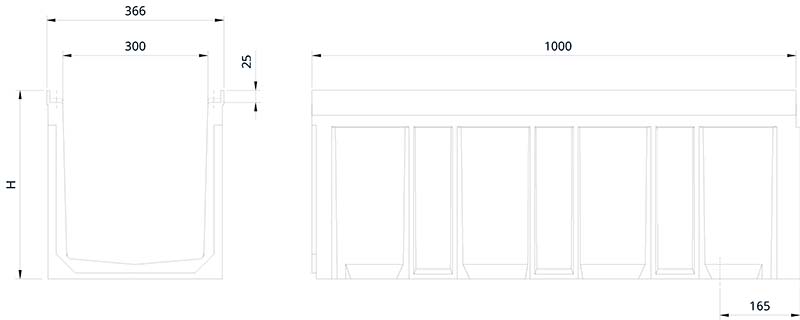

Polymer concrete Linear Drainage Channel ULMA, type F300MF: External width 366mm; Internal width 300mm; Available with overall heights between 300mm and 600mm. Suitable for cascaded type slope to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
* Also available with cast iron edges..
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| F300MF000R | 1000mm | 300mm | 366mm | 300mm | 250mm | - | 725.0 | 15.0 | 54.34 | 46.4 | DWG | |
| F300MF00R | 1000mm | 390mm | 366mm | 300mm | 250mm | - | 975.0 | 15.0 | 62.02 | 77.5 | DWG | |
| F300MF10R | 1000mm | 440mm | 366mm | 300mm | 250mm | - | 1110.0 | 10.0 | 70.43 | 94.2 | DWG | |
| F300MF20R | 1000mm | 490mm | 366mm | 300mm | 250mm | - | 1255.0 | 10.0 | 75.97 | 113.8 | DWG | |
| F300MF60R | 1000mm | 600mm | 366mm | 300mm | - | - | 1525.0 | 6.0 | 96.14 | 163.8 | DWG | |
| F300MFH75R | 1000mm | 750mm | 394mm | 300mm | - | - | 1933.0 | 4.0 | 112.02 | 230.2 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX300FTCM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | D-400 | FNX300FTDM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | F-900 | FNX300FTFM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Solid | D-400 | FC300FTDM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Solid | F-900 | FC300FTFM | 8 screws per metre | DWG | |
| Galvanized Steel | Single Slot | D-400 | GRL300FOD | Without screws | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AF300 Sump Unit drawing | DWG | |
| AF300S+A300B Sump Unit drawing | DWG | |
| Installation details. Asphalt Longitudinal to the traffic direction | DWG | |
| Installation details. Asphalt Transversal to the traffic direction | DWG | |
| Installation details. Concrete Longitudinal to the traffic direction | DWG | |
| Installation details. Concrete Transversal to the traffic direction | DWG | |
