F150K

F150K

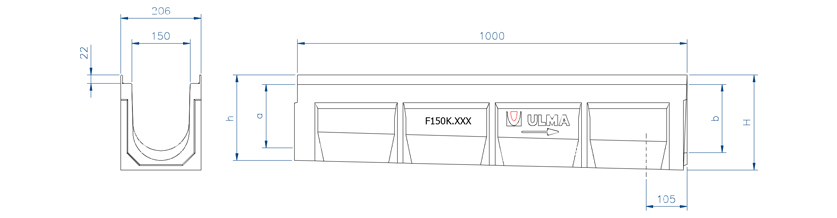

Polymer concrete Linear Drainage Channel ULMA, type F150K: External width 206mm; Internal width 150mm; Available with overall heights between 145mm and 370mm; Suitable also with 2,5% presloped channels or cascaded slope, to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.

Channel options

CHANNEL CODE L
(mm)
Height
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Weight
(Kg)
Qref
(l/s)
Exterior Interior Vert. Horiz.
F150K01M 500mm 212mm 150mm - - 120.0 - 14.13 - DWG PDF
F150K02 1000mm 206mm 150mm - - 155.0 - 28.35 - DWG PDF
F150K03 1000mm 206mm 150mm - - 190.0 - 30.44 - DWG PDF
F150K04 1000mm 206mm 150mm - - 230.0 - 32.53 - DWG PDF
F150K00R 1000mm 220mm 206mm 150mm 160mm - 230.0 45.0 29.47 11.5 DWG PDF
F150K05 1000mm 206mm 150mm - - 265.0 - 34.62 - DWG PDF
F150K06 1000mm 206mm 150mm - - 305.0 - 36.71 - DWG PDF
F150K10R 1000mm 270mm 206mm 150mm 160mm - 305.0 36.0 33.45 17.8 DWG PDF
F150K07 1000mm 206mm 150mm - - 340.0 - 38.8 - DWG PDF
F150K08 1000mm 206mm 150mm - - 375.0 - 40.89 - DWG PDF
F150K20R 1000mm 320mm 206mm 150mm 160mm 160mm 375.0 27.0 41.52 24.9 DWG PDF
F150K09 1000mm 206mm 150mm - - 410.0 - 42.98 - DWG PDF
F150K10 1000mm 206mm 150mm - - 457.0 - 45.07 - DWG PDF
F150K30R 1000mm 370mm 206mm 150mm 160mm - 457.0 27.0 43.94 33.2 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) D-400 FNX150FTDM 8 screws per metre DWG PDF
Ductile Cast Iron Slotted (Heelproof) D-400 FNHX150FTDM 8 screws per metre DWG PDF
Ductile Cast Iron Slotted (Standard) E-600 FNX150FTEM 8 screws per metre DWG PDF
Ductile Cast Iron Slotted (Standard) F-900 FNX150FTFM 8 screws per metre DWG PDF
Ductile Cast Iron Slotted (Heelproof) F-900 FNHX150FTFM 8 screws per metre DWG PDF
Ductile Cast Iron Solid F-900 FC150FTFM 8 screws per metre DWG PDF
Ductile Iron Stainless Slotted (Standard) D-400 FIN150FTDM 8 screws per metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AF150S+A150I+A150B Sump Unit drawing DWG PDF
AF150S+A150B Sump Unit drawing DWG PDF
AF150 Sump Unit drawing DWG PDF
Installation details. Asphalt Longitudinal to the traffic direction DWG PDF
Installation details. Asphalt Transversal to the traffic direction DWG PDF
Installation details. Concrete Longitudinal to the traffic direction DWG PDF
Installation details. Concrete Transversal to the traffic direction DWG PDF
Installation details. Installation beside Kerb DWG PDF
