F250K

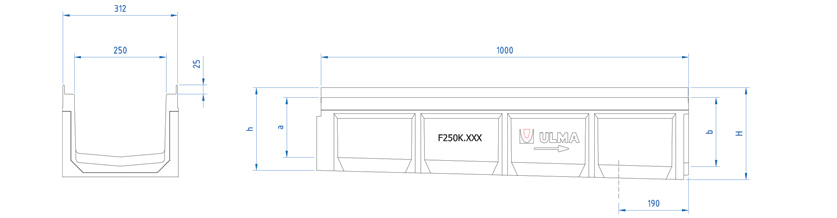

Polymer concrete Linear Drainage Channel ULMA, type F250K: External width 312mm; Internal width 250mm; Available with overall heights between 150mm and 650mm; Suitable also with 2,5% presloped channels, cascaded or mixed slope, to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| F250K01RM | 500mm | 150mm | 312mm | 250mm | - | - | 220.0 | 19.86 | - | DWG | ||
| F250K01 | 1000mm | 312mm | 250mm | - | - | 280.0 | 34.49 | - | DWG | |||
| F250K02 | 1000mm | 312mm | 250mm | - | - | 340.0 | 38.14 | - | DWG | |||
| F250K03 | 1000mm | 312mm | 250mm | - | - | 400.0 | 40.75 | - | DWG | |||
| F250K04 | 1000mm | 312mm | 250mm | - | - | 460.0 | 42.32 | - | DWG | |||
| F250K05 | 1000mm | 312mm | 250mm | - | - | 520.0 | 44.30 | - | DWG | |||
| F250K06 | 1000mm | 312mm | 250mm | - | - | 580.0 | 46.81 | - | DWG | |||
| F250K00R | 1000mm | 300mm | 312mm | 250mm | 250.0 | 200.0 | 580.0 | 28.0 | 47.13 | 38.5 | DWG | |
| F250K07 | 1000mm | 312mm | 250mm | - | - | 640.0 | 48.28 | - | DWG | |||
| F250K08 | 1000mm | 312mm | 250mm | - | - | 700.0 | 52.88 | - | DWG | |||
| F250K10R | 1000mm | 350mm | 312mm | 250mm | 250.0 | 200.0 | 700.0 | 28.0 | 49.64 | 51.5 | DWG | |
| F250K09 | 1000mm | 312mm | 250mm | - | - | 760.0 | 55.18 | - | DWG | |||
| F250K10 | 1000mm | 312mm | 250mm | - | - | 820.0 | 57.79 | - | DWG | |||
| F250K20R | 1000mm | 400mm | 312mm | 250mm | 250.0 | 200.0 | 820.0 | 21.0 | 55.02 | 65.6 | DWG | |
| F250K11 | 1000mm | 312mm | 250mm | - | - | 870.0 | 69.61 | - | DWG | |||
| F250K12 | 1000mm | 312mm | 250mm | - | - | 930.0 | 73.36 | - | DWG | |||
| F250K30R | 1000mm | 450mm | 312mm | 250mm | - | - | 935.0 | 14.0 | 63.22 | 80.9 | DWG | |
| F250K13 | 1000mm | 312mm | 250mm | - | - | 985.0 | 77.53 | - | DWG | |||
| F250K14 | 1000mm | 312mm | 250mm | - | - | 1045.0 | 79.83 | - | DWG | |||
| F250K15 | 1000mm | 312mm | 250mm | - | - | 1100.0 | 83.79 | - | DWG | |||
| F250K16 | 1000mm | 312mm | 250mm | - | - | 1160.0 | 87.98 | - | DWG | |||
| F250K17 | 1000mm | 312mm | 250mm | - | - | 1215.0 | 90.07 | - | DWG | |||
| F250K18 | 1000mm | 312mm | 250mm | - | - | 1270.0 | 94.25 | - | DWG | |||
| F250K19 | 1000mm | 312mm | 250mm | - | - | 1320.0 | 98.43 | - | DWG | |||
| F250K20 | 1000mm | 312mm | 250mm | - | - | 1380.0 | 103.66 | - | DWG | |||
| F250K40R | 1000mm | 650mm | 312mm | 250mm | 250.0 | - | 1383.0 | 8.0 | 91,1 | 151,7 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX250FTCM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | D-400 | FNX250FTDM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | F-900 | FNX250FTFM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Solid | F-900 | FC250FTFM | 8 screws per metre | DWG | |
| Galvanized Steel | Single Slot | D-400 | GRL250FOD | 8 screws per metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AF250 Sump Unit drawing | DWG | |
| AF250S + A250B Sump Unit drawing | DWG | |
| AF250S + A250B415 Sump Unit drawing | DWG | |
| Installation details. Asphalt Longitudinal to the traffic direction | DWG | |
| Installation details. Asphalt Transversal to the traffic direction | DWG | |
| Installation details. Concrete Longitudinal to the traffic direction | DWG | |
| Installation details. Concrete Transversal to the traffic direction | DWG | |
| Installation details. Installation beside Kerb | DWG | |
