S300MF

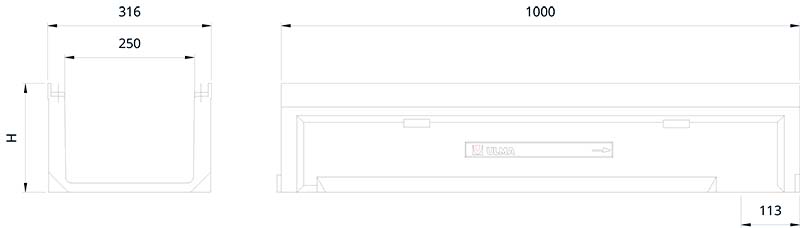

Polymer concrete Linear Drainage Channel ULMA, type S300MF: External width 316mm; Internal Width 250mm and overall height of 210mm to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Ductile iron frame.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| SM300MF | 1000mm | 120mm | 316mm | 250mm | 200mm | - | 185.0 | 24.0 | 26.0 | 6.2 | DWG | |
| S300MF | 1000mm | 210mm | 316mm | 250mm | 200mm | - | 407.0 | 24.0 | 35.3 | 22.1 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX250FTCM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | D-400 | FNX250FTDM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | F-900 | FNX250FTFM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Solid | F-900 | FC250FTFM | 8 screws per metre | DWG | |
| Galvanized Steel | Single Slot | D-400 | GRL250FOD | Without screws | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AF250 Sump Unit drawing | DWG | |
| AF250S+A250I+A250B Sump Unit drawing | DWG | |
| AF250S+A250B Sump Unit drawing | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Asphalt onto a floor frame | DWG | |
| Installation details. Concrete onto a floor frame | DWG | |
| Installation details. Paver onto a floor frame | DWG | |
