S200F

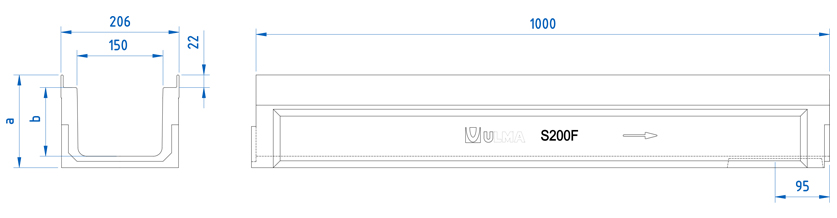

Polymer concrete Linear Drainage Channel ULMA, type S200F: External width 206mm; Internal width 150mm and overall height of 162mm to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| SM200F | 1000mm | 162mm | 206mm | 150mm | 160mm | - | 88.0 | 60.0 | 18.40 | 2.5 | DWG | |
| S200F | 1000mm | 162mm | 206mm | 150mm | 160mm | - | 180.0 | 40.0 | 21.55 | 7.6 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | D-400 | FNX150FTDM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Heelproof) | D-400 | FNHX150FTDM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | E-600 | FNX150FTEM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | F-900 | FNX150FTFM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Heelproof) | F-900 | FNHX150FTFM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Solid | F-900 | FC150FTFM | 8 screws per metre | DWG | |
| Ductile Iron Stainless | Slotted (Standard) | D-400 | FIN150FTDM | 8 screws per metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AS200F Sump Unit drawing | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Asphalt onto a floor frame | DWG | |
| Installation details. Concrete onto a floor frame | DWG | |
| Installation details. Paver onto a floor frame | DWG | |
