SELF350K

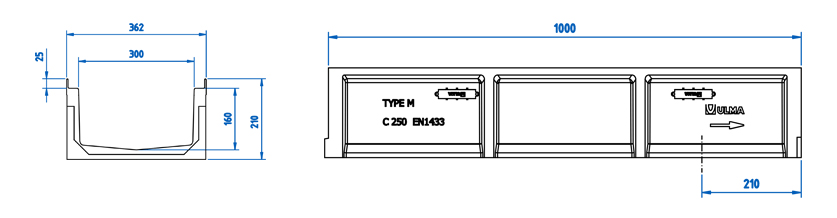

Polymer concrete Linear Drainage Channel ULMA, type SELF350K: External width 360mm; Internal width 300mm and overall height 210mm to collect rain water in 1 metre long units. Integrated galvanized steel edges for lateral protection. Locking system consists of locking bar CS300 and screws.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| SELF300 | 1000mm | 210mm | 360mm | 300mm | 250 | - | 455 | 21 | 40.33 | 23.3 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX300KCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX300KCB | 2 locking bars and 2 screws per linear metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| ASELF350K Sump Unit drawing | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Asphalt onto a floor frame | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Concrete onto a floor frame | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver onto a floor frame | DWG | |
| Installation details. Paver onto a load-bearing slab | DWG | |
