MINIKIT

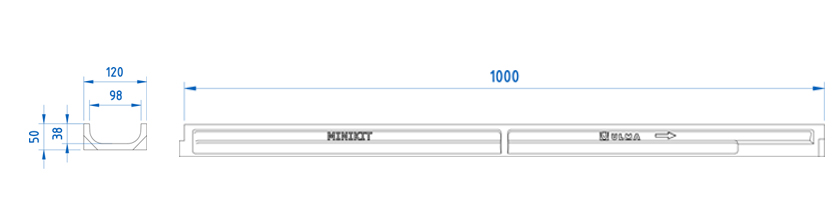

Full LM consist of 1 polymer concrete linear drainage channel ULMA, to collect rainwater, type MINIKIT, external width 120mm, internal width 98mm and overall height 50mm.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| MINIKIT | 1000mm | 50mm | 120mm | 98mm | 110mm | - | 34.0 | 126 (with grating) | 4.69 | 0.5 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Galvanized Steel | Slotted (Standard) | A-15 | GNS100UOA | Click. Without screws | DWG | |
| Galvanized Steel | Slotted (Standard) | A-15 | GR100UOAH25 | Supported | DWG | |
| INSTALLATION DETAILS | ||
|---|---|---|
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Asphalt onto a floor frame | DWG | |
| Installation details. Concrete onto a floor frame | DWG | |
| Installation details. Paver onto a floor frame | DWG | |
