U100

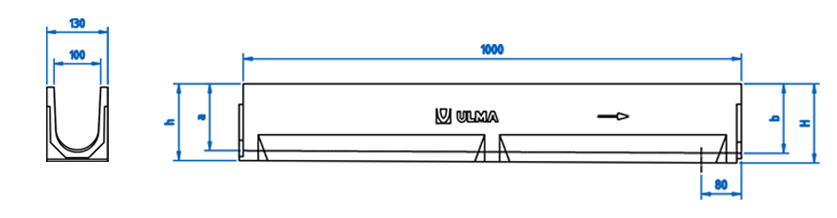

Polymer concrete Linear Drainage Channel ULMA, type U100: External width 130mm; Internal width 100mm; Available with overall heights between 130mm and 280mm, 0,5% presloped channels to collect rain water in 1 metre long units. Locking system consists of locking bar CS100 and screws.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| U100.00R | 1000mm | 130mm | 130mm | 100mm | 110 | 97 | 90 | 13.35 | 3.5 | DWG | ||
| U100.01 | 1000mm | 130mm | 100mm | 101 | 90 | 13.99 | 6.0 | DWG | ||||
| U100.02 | 1000mm | 130mm | 100mm | 106 | 90 | 14.19 | 6.5 | DWG | ||||
| U100.03 | 1000mm | 130mm | 100mm | 111 | 78 | 14.89 | 6.7 | DWG | ||||
| U100.04 | 1000mm | 130mm | 100mm | 116 | 78 | 14.65 | 7.2 | DWG | ||||
| U100.05 | 1000mm | 130mm | 130mm | 100mm | 110.0 | 120 | 78 | 15.10 | 7.5 | DWG | ||
| U100.05R | 1000mm | 155mm | 130mm | 100mm | 110.0 | 120.0 | 78.0 | 15.31343 | 5.0 | DWG | ||
| U100.06 | 1000mm | 130mm | 100mm | 125.0 | 65.0 | 15.29253 | 7.79986 | DWG | ||||
| U100.07 | 1000mm | 130mm | 100mm | 130.0 | 65.0 | 15.954015 | 8.28576 | DWG | ||||
| U100.08 | 1000mm | 130mm | 100mm | 135.0 | 65.0 | 16.685515 | 8.59833 | DWG | ||||
| U100.09 | 1000mm | 130mm | 100mm | 140.0 | 65.0 | 17.69603 | 8.92735 | DWG | ||||
| U100.10 | 1000mm | 130mm | 100mm | 145.0 | 65.0 | 17.27803 | 9.45759 | DWG | ||||
| U100.10R | 1000mm | 180mm | 130mm | 100mm | 110.0 | 110.0 | 145.0 | 65.0 | 18.493365 | 6.7 | DWG | |
| U100.11 | 1000mm | 130mm | 100mm | 150.0 | 65.0 | 17.38253 | 9.79376 | DWG | ||||
| U100.12 | 1000mm | 130mm | 100mm | 155.0 | 65.0 | 18.11403 | DWG | |||||
| U100.13 | 1000mm | 130mm | 100mm | 159.0 | 65.0 | 18.200765 | DWG | |||||
| U100.14 | 1000mm | 130mm | 100mm | 164.0 | 65.0 | 18.02625 | DWG | |||||
| U100.15 | 1000mm | 130mm | 100mm | 169.0 | 65.0 | 18.32303 | DWG | |||||
| U100.15R | 1000mm | 205mm | 130mm | 100mm | 110.0 | 110.0 | 169.0 | 65.0 | 19.78603 | 8.5 | DWG | |
| U100.16 | 1000mm | 130mm | 100mm | 174.0 | 65.0 | 19.019 | DWG | |||||
| U100.17 | 1000mm | 130mm | 100mm | 178.0 | 65.0 | 19.57703 | DWG | |||||
| U100.18 | 1000mm | 130mm | 100mm | 183.0 | 52.0 | 20.238515 | DWG | |||||
| U100.19 | 1000mm | 130mm | 100mm | 188.0 | 52.0 | 19.977265 | DWG | |||||
| U100.20 | 1000mm | 130mm | 100mm | 193.0 | 52.0 | 21.022265 | DWG | |||||
| U100.20R | 1000mm | 230mm | 130mm | 100mm | 110.0 | 110.0 | 193.0 | 52.0 | 22.23133 | 10.5 | DWG | |
| U100.25R | 1000mm | 255mm | 130mm | 100mm | 110.0 | 110.0 | 240.0 | 52.0 | 22.97328 | 12.6 | DWG | |
| U100.30R | 1000mm | 280mm | 130mm | 100mm | 110.0 | 110.0 | 288.0 | 52.0 | 24.84383 | 14.9 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | B-125 | FNX100UCBM | 2 locking bars and 2 screws per linear metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX100UCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Slotted (Standard) | A-15 | GN100UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Perforated | A-15 | GP100UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Slot | A-15 | GR100UOAH25 | Supported | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX100UCB33 | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX100UCB | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Single Slot | C-250 | GR100UOC | Without screws | DWG | |
| Galvanized Steel | Double Slot | C-250 | GDR100UOC | Without screws | DWG | |
| Galvanized Steel | Offset Slot | C-250 | GRL100UOC | Supported | DWG | |
| Stainless Steel | Slotted (Standard) | A-15 | IN100UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Stainless Steel | Perforated | A-15 | IP100UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Long. Slotted Black | A-15 | PNLH100UCAM | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Long. Slotted Grey | A-15 | PNLH100UCAM GRIS | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Long. Slotted Beige | A-15 | PNLH100UCAM BG | 2 locking bars and 2 screws per linear metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AU100 Sump Unit drawing | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver with Slot grating | DWG | |
| Installation details. Paver onto a load-bearing slab | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Concrete with Slot grating | DWG | |
| Installation details. Installation beside Kerb | DWG | |
