Concealed system

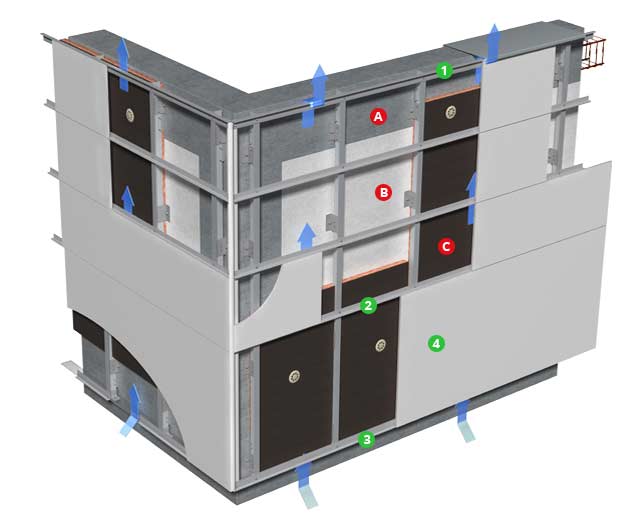

![Horizontal facade system Horizontal system](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/sistema-horizontal.jpg/@@images/54a86e59-d1b6-4165-9b40-bbc4f015102b.jpeg)
Horizontal installation system
ASlabs
1Continuous inverted starter rail profile
BBase wall
2Continuous intermediate rail profile
CThermal insulation
3Continuous starter rail profile
4STONEO panel

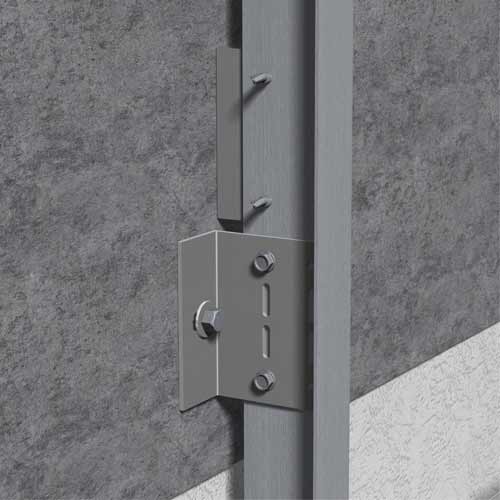

![Anclaje bridado de punto fijo](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-anclaje-bridado-de-punto-fijo.jpg/@@images/038323ea-5b46-4ffc-9afd-bb9cb88e2006.jpeg)
Fixed point bracket

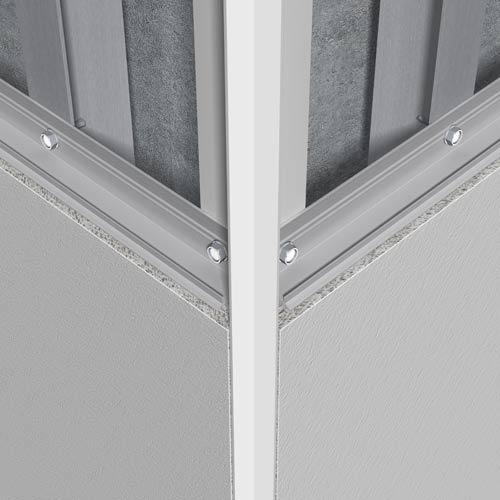

![Detalle esquina](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-detalle-esquina.jpg/@@images/49ac43a2-f24d-4409-8c4f-dae975130123.jpeg)
Y-shaped corner

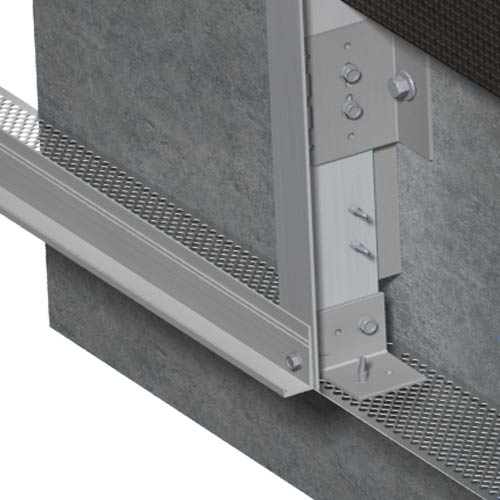

![Detalle perfil de arranque y rejilla anti-roedore](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-detalle-perfil-de-arranque-y-rejilla-anti-roedore.jpg/@@images/332d7891-4c95-4c06-87fe-8555200a9ceb.jpeg)
Starter-rail profile and anti-rodent grid

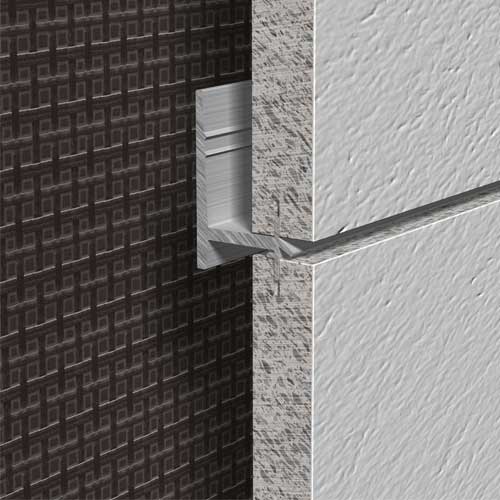

![Detalle Perfil Guía](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-detalle-perfil-guia.jpg/@@images/5e277ec8-7e5c-4105-8e39-0ef63d64e440.jpeg)
Rail profile detail

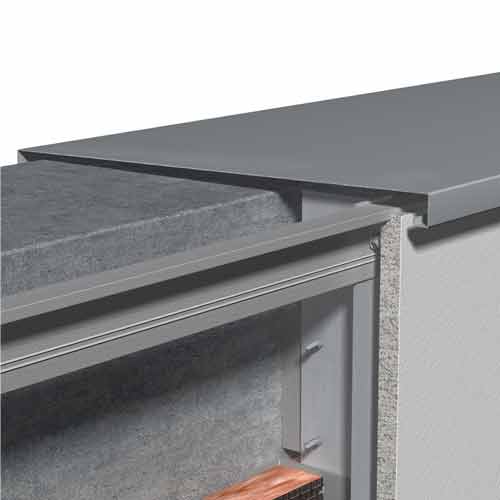

![Salida de aire de la cámara en coronación](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-salida-de-aire-de-la-camara-en-coronacion.jpg/@@images/bdbd310d-095f-4ab9-9fb9-faca8fbb32a7.jpeg)
Air output from chamber

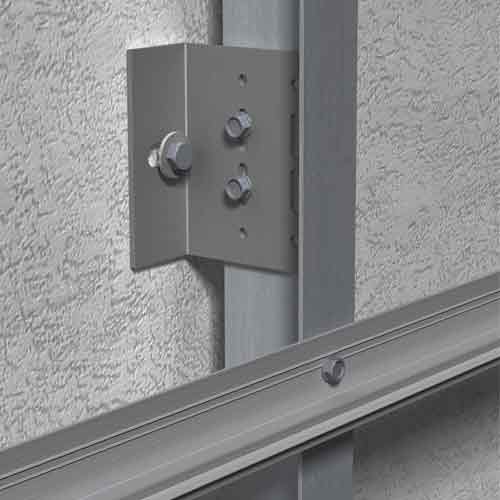

![Tacos de Fijación a cerramientos y forjados. y Anclaje libre de punto deslizante](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-tacos-de-fijacion-a-cerramientos-y-forjados-y-anclaje-libre-de-punto-deslizante.jpg/@@images/cafe80b6-905d-4a83-ad75-2384b61a8022.jpeg)
Connection at floor stab and base wall and sliding point bracket

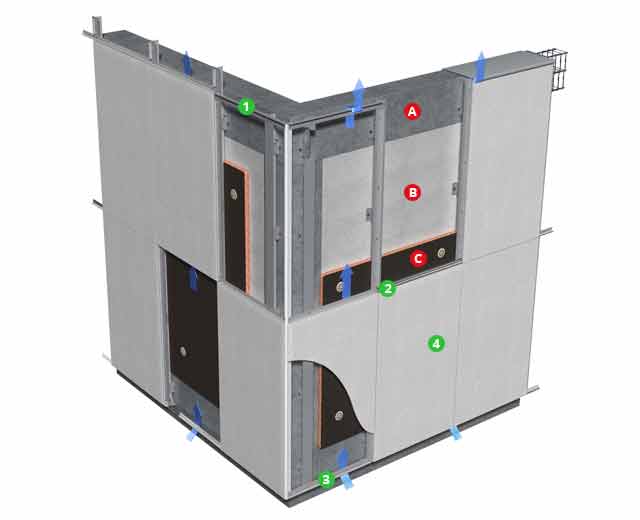

![Sistema vertical oculto.jpg Vertical system](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/sistema-vertical-web.jpg/@@images/1b04f4bc-70a6-4308-ad05-5a6b8f7d2c0b.jpeg)
Vertical installation system
ASlabs
1Continuous inverted starter rail profile
BBase wall
2Continuous intermediate rail profile
CThermal insulation
3Continuous starter rail profile
4STONEO panel

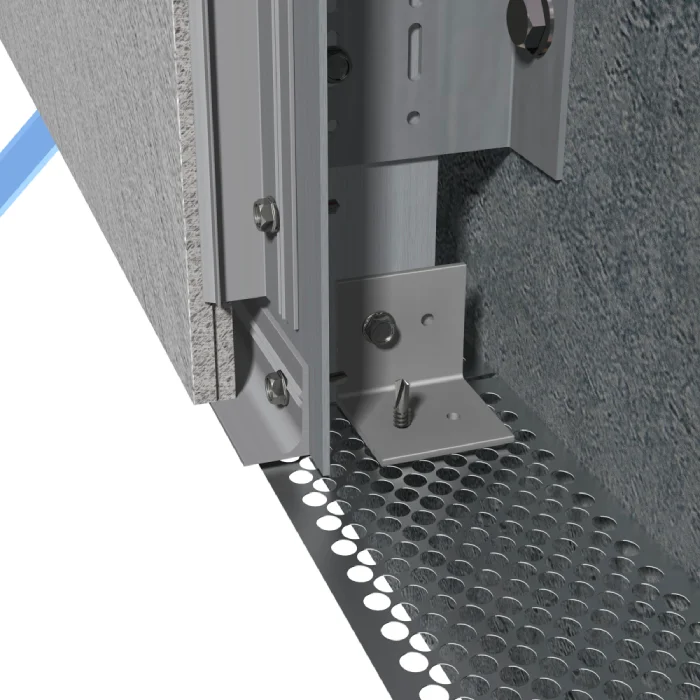

![Rejilla antiroedores](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-2-rejilla-antiroedores.jpg/@@images/eaf8e869-0714-43b5-82eb-8edfa158289c.jpeg)
Anti-rodent grid

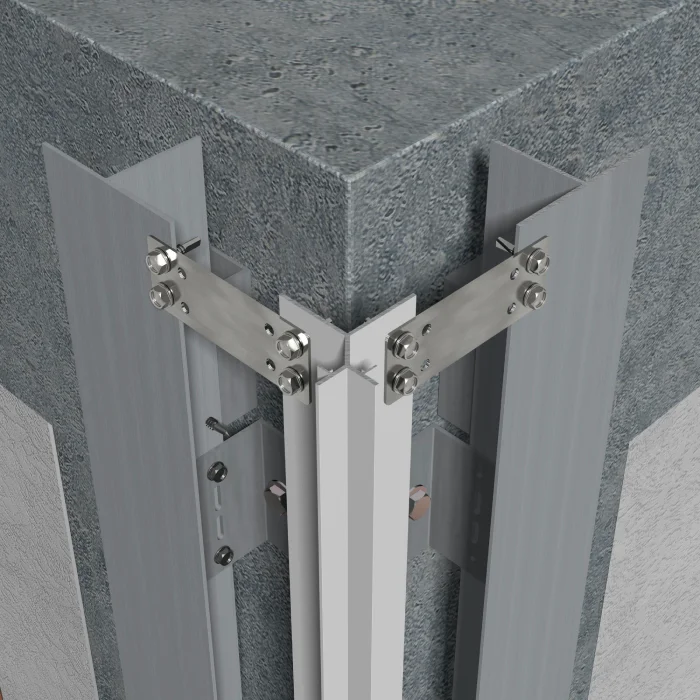

![Anclaje doble- Anclaje bridado de punto fijo](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-anclaje-doble-anclaje-bridado-de-punto-fijo.jpg/@@images/b5eddc90-35c3-48a2-83e5-c5b15ddf1c2b.jpeg)
Double support angle Fixed point bracket

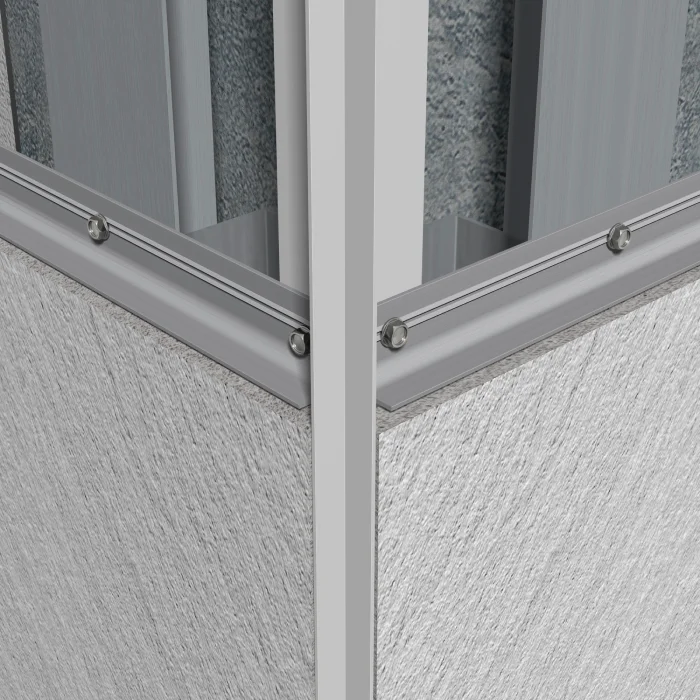

![Esquina con perfil en Y](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-esquina-con-perfil-en-y.jpg/@@images/33cd43f5-1394-4c1d-8e2b-370071e82f8b.jpeg)
Y-shaped corner

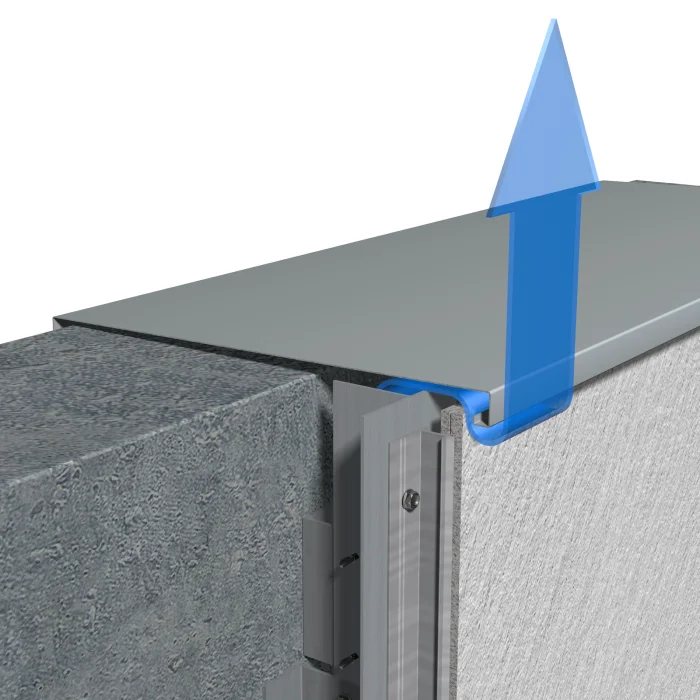

![Salidad de aire de la cámara de coronación](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/1-salidad-de-aire-de-la-camara-de-coronacion.jpg/@@images/ccc32dfe-1b7b-4205-8c89-798f263df393.jpeg)
Air output from chamber

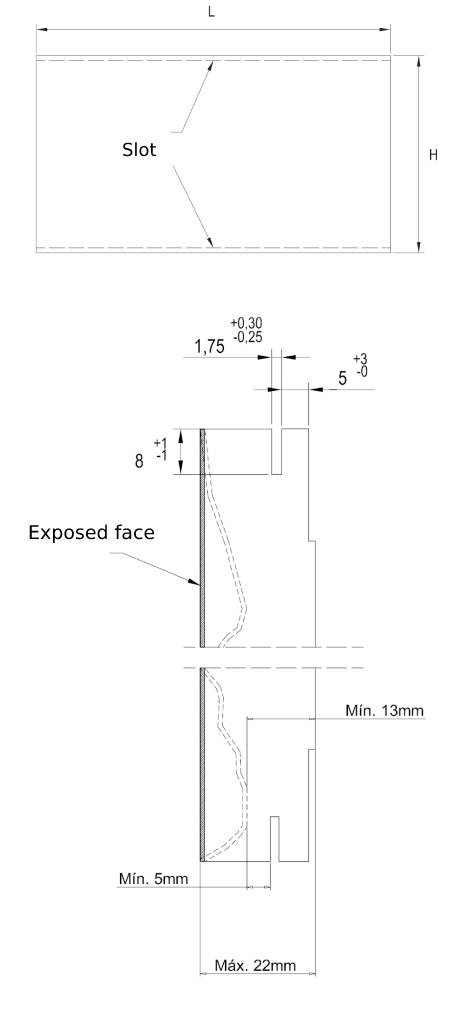

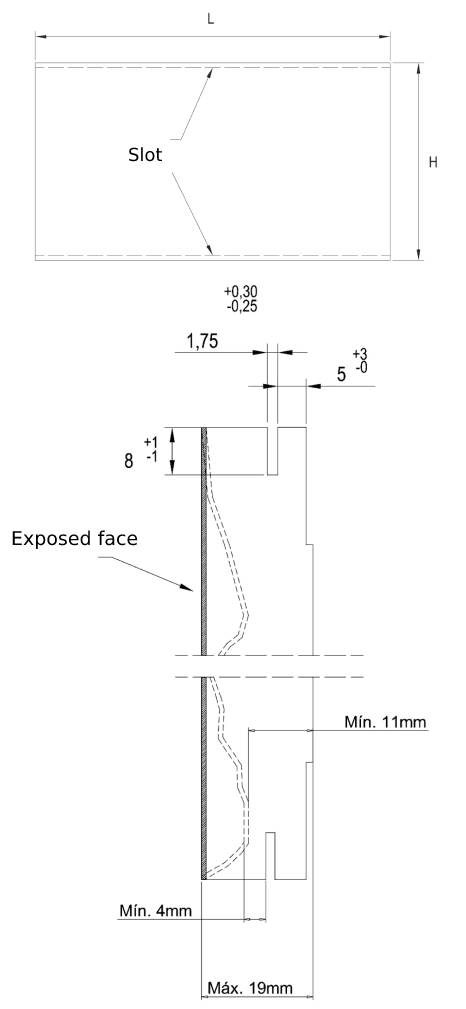

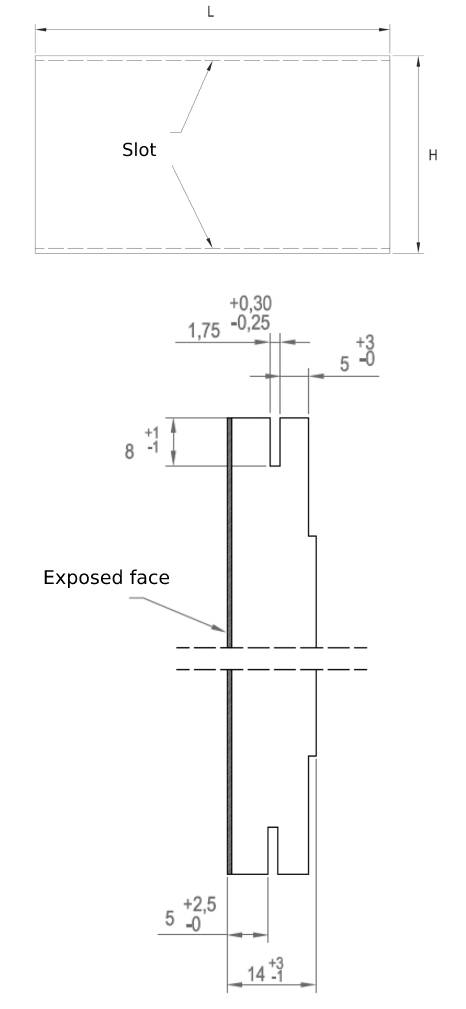

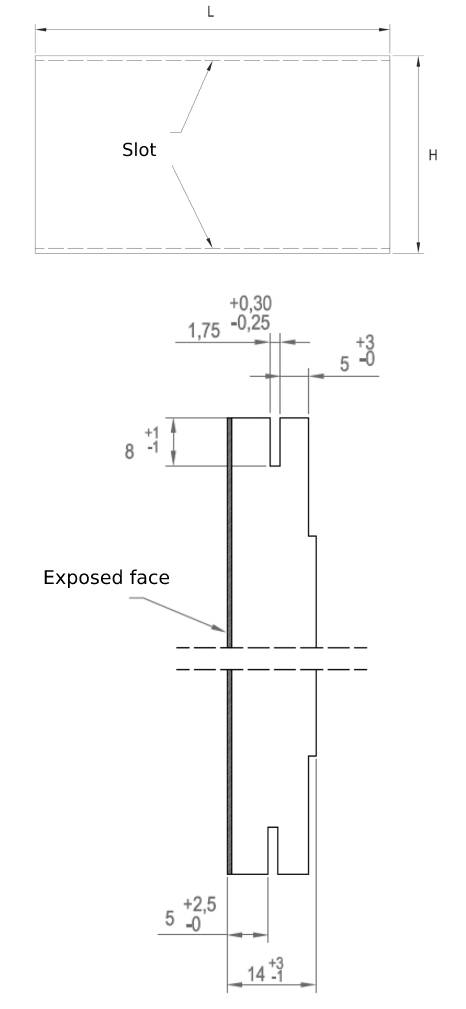

Types of profiles for concealed system
Continuous profiles with concealed joint
Types of Profiles
Exposed joint continuous rail profiles
![perfil-visto1.jpg exposed rail](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/perfil-visto1.jpg)
8 mm Deep Rail Profile
![perfil-visto2.jpg exposed rail](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/perfil-visto2.jpg)
15 mm Exposed Rail Profile
![perfil-visto3.jpg exposed rail](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/perfil-visto3.jpg)
20-50 mm Deep Rail Profile
![perfil-visto4.jpg exposed rail](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/perfil-visto4.jpg)
10 mm Exposed Starter Rail
Exposed Installation System
![Sistema de colocación Visto Exposed system](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/visto.jpg/@@images/794ae8fb-822a-41bc-84bc-b57d4e7c110c.jpeg)
ASlabs
1Crown staple
BBase wall
2End staple
CThermal insulation
3Starter staple
4STONEO panel
![Visto-Perfil de esquina.jpg](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/visto-perfildeesquina.jpg/@@images/c66392b4-a6e8-4d17-9c85-67b3518586bc.jpeg)
Corner profile
![Visto-Detalle grapa puntual](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/visto-detallegrapapuntual.jpg/@@images/7254bbf0-51f4-4fb8-9247-e502103678ee.jpeg)
Detail of staple
![Visto-Grapa esquina.jpg](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/visto-grapaesquina.jpg/@@images/acf3f2fb-cbee-4cd0-9493-2f168401e2ad.jpeg)
Corner staple
![Visto-Grapa coronación.jpg](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/visto-grapacoronacion.jpg/@@images/bbe6ebca-b661-49b7-a0cc-38fea3bb794f.jpeg)
Crown staple
![Visto-Grapa arranque.jpg](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/visto-grapaarranque.jpg/@@images/afa01538-b2d8-4ccf-9970-292c4fd47970.jpeg)
Start staple
K-SLAT Installation System
![Sistema de colocación K-Slat K-Slat system](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/slat.jpg/@@images/766bb106-be5b-4569-9ef0-c63f78f6d60b.jpeg)
ASlabs
1Continuous inverted starter rail profile
BBase wall
28 mm continuous intermediate rail profile
CThermal insulation
3Starter rail profile
4Stoneo K-Slat panel
![Perfil de arranque y rejilla antiroedores_s](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/01-perfil-de-arranque-y-rejilla-antiroedores_s.jpg/@@images/8a2c3a20-7a11-4057-a0bd-588646e2c272.jpeg)
Starter rail profile and anti-rodent grid
![Detalle perfil guia 8mm_s](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/02-detalle-perfil-guia-8mm_s.jpg/@@images/2451b8da-fc1b-4d10-8d5a-26fb838d1dda.jpeg)
8 mm rail profile detail
![Detalle esquina con perfil Y_s](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/03-detalle-esquina-con-perfil-y_s.jpg/@@images/17df8c02-a5ac-44ac-9197-6bbd17601b8f.jpeg)
Y-shaped corner detail
![Detalle montante perfil guia 8mm_s](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/04-detalle-montante-perfil-guia-8mm_s.jpg/@@images/09691bca-0878-4cce-b259-4b119fd7be39.jpeg)
8 mm rail profile upright detail
![Detalle perfil coronacion_s](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/05-detalle-perfil-coronacio2560un_s.jpg/@@images/2fc073ca-579e-4e4e-83fa-d8f58f6b4f60.jpeg)
Crown profile detail

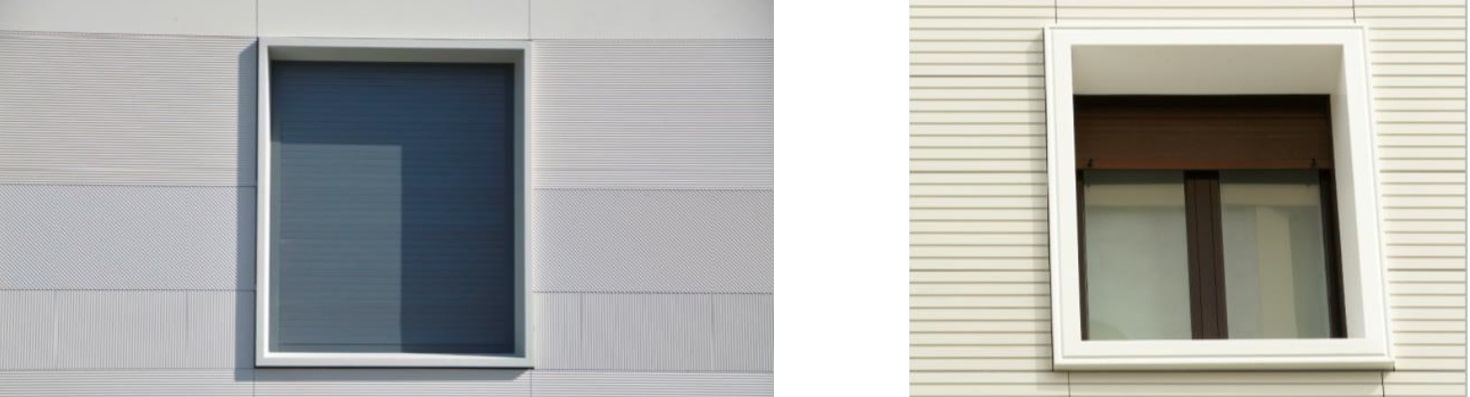

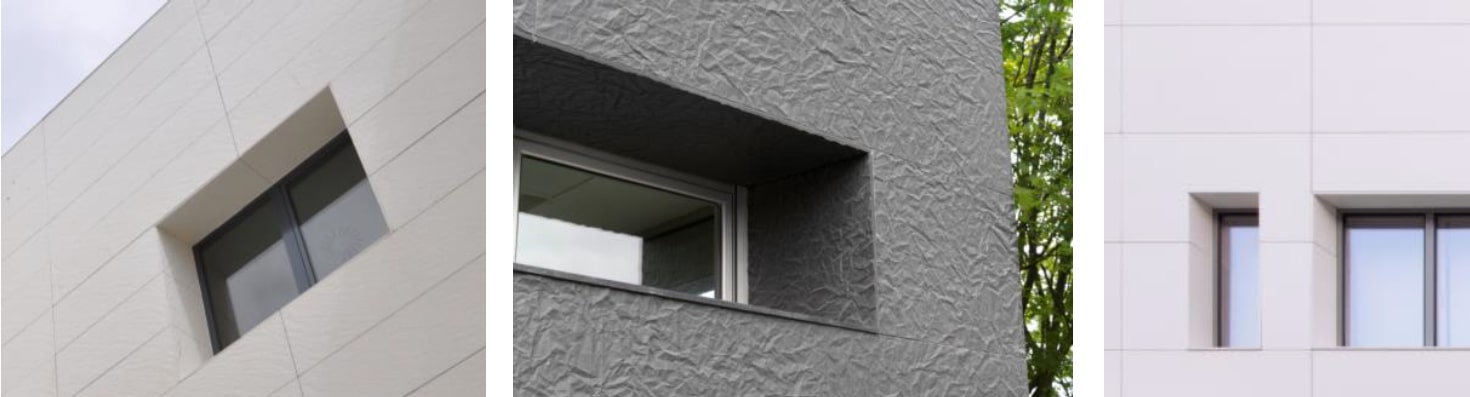

Corner types
![Esquina en X X corner](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/esquinax.jpg/@@images/f6ee83f1-403a-4c8c-b2c5-7ee1f4fc9caf.jpeg)
X CORNER
![Esquina en Z Z corner](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/esquinaz.jpg/@@images/1040fca6-f9e5-4944-9ed9-8dec8dd00566.jpeg)
Z CORNER
![Esquina en Y Y corner](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/esquinay.jpg/@@images/b4d75152-2106-4b37-9bda-36fffb8ced55.jpeg)
Y CORNER
![Esquina en 45º Inglete 45º mitre](https://www.ulmaarchitectural.com/es-es/fachadas-ventiladas/info-tecnica/esquina45.jpg/@@images/0bafdd5a-40f8-4ae5-ae23-d5b18266da4a.jpeg)
45º MITRE
