Single-slote grating in the Ballan-Miré Town hall - France
Ballan-Miré is a French municipality with 8,114 inhabitants, located in the country's central region. Right in the centre of the city is the Town Hall, which is mainly home to the city's administrative services.
The MULTIV+ 150 trench drain has been installed, which is optimum for pedestrian areas, shopping areas and car parks. The channels in this range have an optimized V-section, to drain the water at a higher speed, improving the channel's self-cleaning effect. In addition, for its installation, the exclusive ULMA Rapidlock system was chosen, which allows the grating to be fitted to the body of the channel quickly, safely and with little effort.

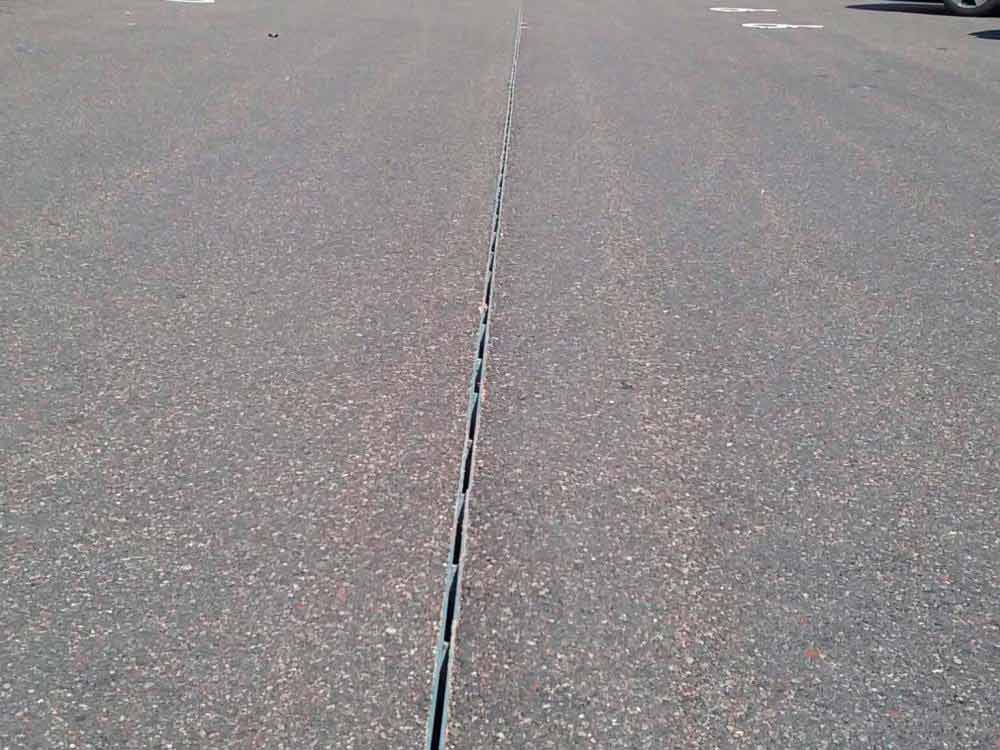

As regards the grating, the single-slot was selected, suitable for load class D400. The choice of this type of grating has provided an ideal solution for this cobbled area, as a discreet and aesthetically pleasing option, without relinquishing drainage capacity. In total, 160 linear metres of drainage have been installed.
