KOMPAQ200 CIVIL

KOMPAQ200 CIVIL

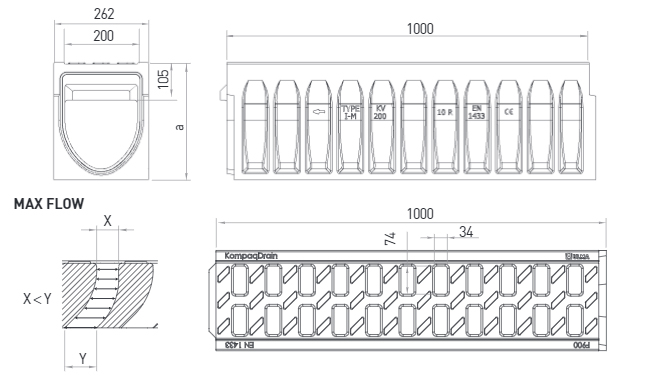

Linear Drainage Channel model ULMA KompaqDrain® Civil KVF200, with an integral grating, presented in one-piece and manufactured by high resistant Polymer Concrete. Vandal – proof and corrosion resistant. Load class up to F-900 for high loads. With “V” optimized shaped and capture holes with MAX-FLOW® geometry: self-cleaning effect at a low flow, increase at maximum flow and positive opening in order to avoid dirt blockage, for areas without slope. Active surface for cutting of water sheet and for its driving to uptake holes and with non-slippery protuberances. Male and female horizontal and vertical alignment and perimetral preformed groove to facilitate joint sealing in 360º. The register and the sump unit include cast iron grating FNX200FTFM, lateral preforms for horizontal outlets on each side and lateral preforms for connections in T, L and in cross.

Channel options

CHANNEL CODE L
(mm)
Height
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Weight
(Kg)
Exterior Interior Vert. Horiz.
KVF200.10R 1000mm 325mm 262mm 200mm 318.0 12.0 88.0 DWG PDF
KVF200.30R 1000mm 525mm 262mm 200mm 718.0 8.0 111.0 DWG PDF
KVF200.50R 1000mm 725mm 262mm 200mm 1118.0 8.0 141.0 DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
Register AKVF150MF DWG PDF
Sump Unit AKVF150MF.RS + AKVF150I + AKVF150B DWG PDF
Installation details. Asphalt Longitudinal to the traffic direction DWG PDF
Installation details. Asphalt Transversal to the traffic direction DWG PDF
Installation details. Concrete Longitudinal to the traffic direction DWG PDF
Installation details. Concrete Transversal to the traffic direction DWG PDF
