F200

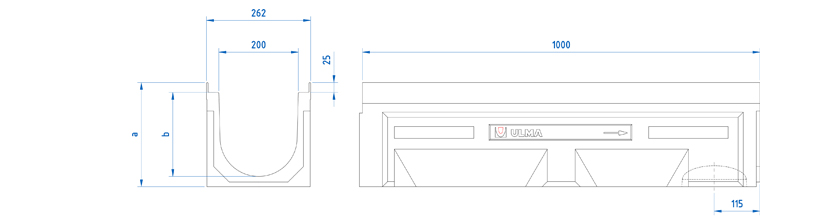

Polymer concrete Linear Drainage Channel ULMA, type F200K: External width 262mm; Internal width 200mm; Available with overall heights between 263mm and 363mm. Suitable for cascaded type slope to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
Channel options
CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Exterior | Interior | Vert. | Horiz. | |||||||||
F200K00R | 1000mm | 263mm | 260mm | 200mm | 160mm | - | 374.0 | 28.0 | 43.89 | 21.3 | DWG | |
F200K10R | 1000mm | 313mm | 260mm | 200mm | 160mm | 160mm | 473.0 | 21.0 | 48.07 | 30.7 | DWG | |
F200K20R | 1000mm | 363mm | 260mm | 200mm | 160mm | 160mm | 571.0 | 21.0 | 53.82 | 41.4 | DWG |
Grating options
Material | Design | Load Class | Code | How to fix | ||
---|---|---|---|---|---|---|
Ductile Cast Iron | Slotted (Standard) | D-400 | FNX200FTDM | 8 screws per metre | DWG | |
Ductile Cast Iron | Slotted (Standard) | E-600 | FNX200FTEM | 8 screws per metre | DWG | |
Ductile Cast Iron | Slotted (Standard) | F-900 | FNX200FTFM | 8 screws per metre | DWG | |
Ductile Cast Iron | Solid | F-900 | FC200FTFM | 8 screws per metre | DWG |
SUMP UNITS AND INSTALLATION DETAILS | ||
---|---|---|
AF200 Sump Unit drawing | DWG | |
AF200S+A200I+A200B Sump Unit drawing | DWG | |
AF200S+A200B Sump Unit drawing | DWG | |
Installation details. Asphalt Longitudinal to the traffic direction | DWG | |
Installation details. Asphalt Transversal to the traffic direction | DWG | |
Installation details. Concrete Longitudinal to the traffic direction | DWG | |
Installation details. Concrete Transversal to the traffic direction | DWG | |
Installation details. Installation beside Kerb | DWG |
