SM350F

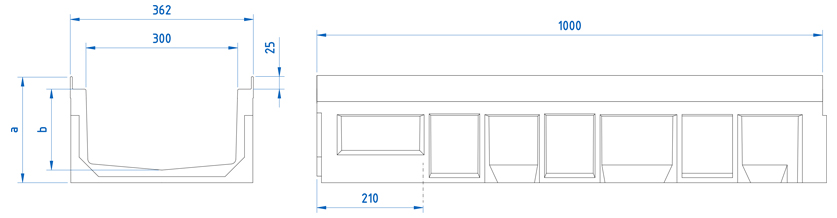

Polymer concrete Linear Drainage Channel ULMA, type SM350F: External width 360mm; Internal width 300mm and overall height of 150mm to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| SM350F | 1000mm | 150mm | 360mm | 300mm | 200mm | - | 294.0 | 24.0 | 41.12 | 11.8 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX300FTCM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | D-400 | FNX300FTDM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | F-900 | FNX300FTFM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Solid | F-900 | FC300FTFM | 8 screws per metre | DWG | |
| Galvanized Steel | Single Slot | D-400 | GRL300FOD | Without screws | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AF300 Sump Unit drawing | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Asphalt onto a floor frame | DWG | |
| Installation details. Concrete onto a floor frame | DWG | |
| Installation details. Paver onto a floor frame | DWG | |
