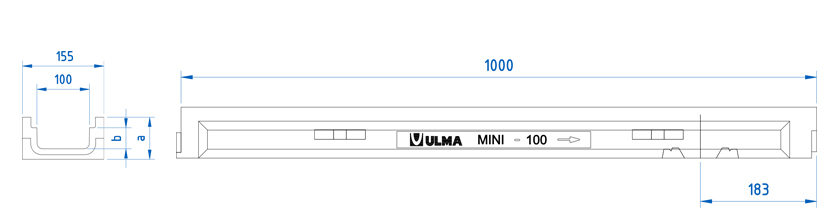

Polymer concrete Linear Drainage Channel ULMA, type M100V: External width 155mm; Internal width 100mm and overall height 80mm to collect rain water in 1 metre long units. Locking system consists of 2 screws per metre.

Channel options

CHANNEL CODE L
(mm)
Height
(mm)
Width (mm) Output Diam. (mm) Units
(x pallet)
Qref
(l/s)
Exterior Interior Vert. Horiz.
M100V 1000mm 80mm 155mm 100mm 0.8 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) B-125 FNX100KCBM 2 screws per metre DWG PDF
Ductile Cast Iron Slotted (Standard) C-250 FNX100KCCM 2 screws per metre DWG PDF
Ductile Cast Iron Slotted (Heelproof) C-250 FNHX100KCCM 2 screws per metre DWG PDF
Galvanized Steel Perforated A-15 GP100KCA 2 screws per metre DWG PDF
Galvanized Steel Slotted (Standard) A-15 GN100KCA 2 screws per metre DWG PDF
Galvanized Steel Mesh (Standard) B-125 GEX100KCB 2 screws per metre DWG PDF
Galvanized Steel Mesh (Heelproof) B-125 GEHX100KCB 2 screws per metre DWG PDF
Stainless Steel Slotted (Standard) A-15 IN100KCA 2 screws per metre DWG PDF
Stainless Steel Perforated A-15 IP100KCA 2 screws per metre DWG PDF
Composite Slotted (Heelproof) A-15 PNH100KCAM 2 screws per metre DWG PDF
Composite Slotted (Heelproof) A-15 PNH100KCAM-GRIS 2 screws per metre DWG PDF
Composite Mesh (Standard) B-125 PE100KCBM 2 screws per metre DWG PDF
INSTALLATION DETAILS
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Paver DWG PDF
Installation details. Asphalt onto a floor frame DWG PDF
Installation details. Concrete onto a floor frame DWG PDF
Installation details. Paver onto a floor frame DWG PDF
