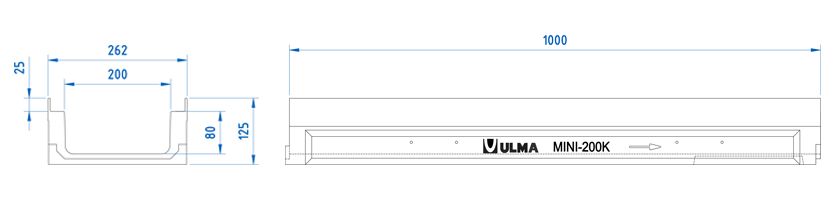

Polymer concrete Linear Drainage Channel ULMA, type M200K: External width 260mm; Internal width 200mm and overall height 125mm to collect rain water in 1 metre long units. Integrated galvanized steel edges for lateral protection. Locking system consists of 2 screws per metre.

Channel options

CHANNEL CODE L
(mm)
Height
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Weight
(Kg)
Qref
(l/s)
Exterior Interior Vert. Horiz.
M200K 1000mm 125mm 260mm 200mm 160mm - 157.0 40.0 27.25 5.5 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) C-250 FNX200KCCM 2 screws per metre DWG PDF
Galvanized Steel Mesh (Standard) B-125 GEX200KCB 2 screws per metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AK200 Sump Unit drawing DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Paver DWG PDF
Installation details. Asphalt onto a floor frame DWG PDF
Installation details. Concrete onto a floor frame DWG PDF
Installation details. Paver onto a floor frame DWG PDF
