EUROSELF200

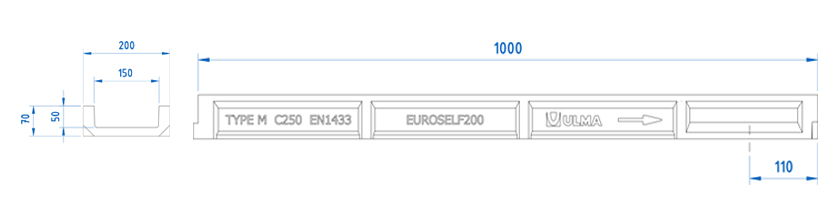

Polymer concrete Linear Drainage Channel ULMA, type EUROSELF200: External width 200mm; Internal width 150mm and overall height 70mm to collect rain water in 1 metre long units. Locking system consists of 2 screws per metre.
Channel options
CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Exterior | Interior | Vert. | Horiz. | |||||||||
EUROSELF200 | 1000mm | 70mm | 200mm | 150mm | 160.0 | - | 75.0 | 81.0 | 12.06 | 1.9 | DWG |
Grating options
Material | Design | Load Class | Code | How to fix | ||
---|---|---|---|---|---|---|
Ductile Cast Iron | Slotted (Standard) | B-125 | FNX150UCBM | 2 screws per metre | DWG | |
Ductile Cast Iron | Slotted (Standard) | C-250 | FNX150UCCM | 2 screws per metre | DWG | |
Galvanized Steel | Slotted (Standard) | A-15 | GN150UCA | 2 screws per metre | DWG | |
Galvanized Steel | Perforated | A-15 | GP150UCA | 2 screws per metre | DWG | |
Galvanized Steel | Mesh (Standard) | B-125 | GEX150UCB33 | 2 screws per metre | DWG | |
Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX150UCB | 2 screws per metre | DWG | |
Stainless Steel | Perforated | A-15 | IP150UCA | 2 screws per metre | DWG |
SUMP UNITS AND INSTALLATION DETAILS | ||
---|---|---|
ASELF200 Sump Unit drawing | DWG | |
Installation details. Paver | DWG | |
Installation details. Paver with Slot grating | DWG | |
Installation details. Paver onto a floor frame | DWG | |
Installation details. Paver onto a load-bearing slab | DWG | |
Installation details. Asphalt | DWG | |
Installation details. Asphalt onto a floor frame | DWG | |
Installation details. Concrete | DWG | |
Installation details. Concrete with Slot grating | DWG | |
Installation details. Concrete onto a floor frame | DWG |
