HYDROKIT

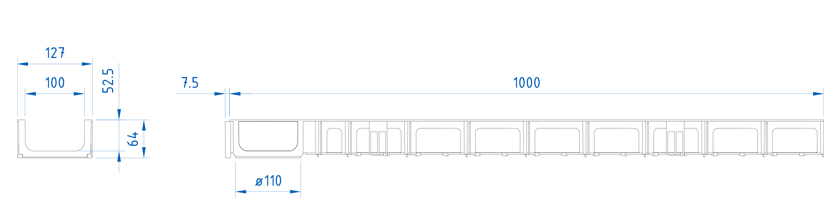

Full LM consist of 1 composite linear drainage channel ULMA, to collect rainwater, type HYDROKITH65, external width 130mm, internal width 100mm and overall height 65mm.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Units
(x pallet) |
||||
|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | ||||||
| HYDROKITH65 | 1000mm | 65mm | 130mm | 100mm | DWG | ||||
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Galvanized Steel | Slotted (Standard) | A-15 | GN100UOA | Click. Without screws | DWG | |
| Galvanized Steel | Slotted (Standard) | A-15 | GR100UOAH25 | Supported | DWG | |
| Composite | Long. Slotted Black | A-15 | PNLH100UCAM | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Long. Slotted Grey | A-15 | PNLH100UCAM GRIS | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Long. Slotted Beige | A-15 | PNLH100UCAM BG | 2 locking bars and 2 screws per linear metre | DWG | |
| INSTALLATION DETAILS | ||
|---|---|---|
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Concrete with Slot grating | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver with Slot grating | DWG | |
