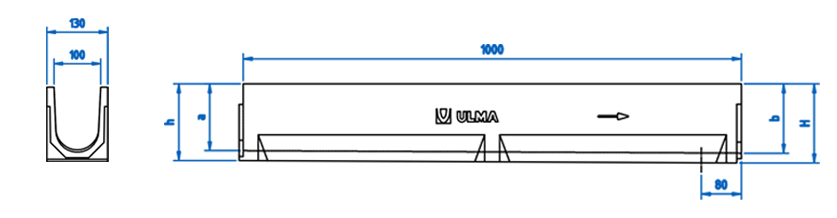

Polymer concrete Linear Drainage Channel ULMA, type U100: External width 130mm; Internal width 100mm; Available with overall heights between 130mm and 280mm, 0,5% presloped channels to collect rain water in 1 metre long units. Locking system consists of locking bar CS100 and screws.

Channel options

CHANNEL CODE L
(mm)
Height
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Weight
(Kg)
Qref
(l/s)
Exterior Interior Vert. Horiz.
U100.00R 1000mm 130mm 130mm 100mm 110 97 90 13.35 3.5 DWG PDF
U100.01 1000mm 130mm 100mm 101 90 13.99 6.0 DWG PDF
U100.02 1000mm 130mm 100mm 106 90 14.19 6.5 DWG PDF
U100.03 1000mm 130mm 100mm 111 78 14.89 6.7 DWG PDF
U100.04 1000mm 130mm 100mm 116 78 14.65 7.2 DWG PDF
U100.05 1000mm 130mm 130mm 100mm 110.0 120 78 15.10 7.5 DWG PDF
U100.05R 1000mm 155mm 130mm 100mm 110.0 120.0 78.0 15.31343 5.0 DWG PDF
U100.06 1000mm 130mm 100mm 125.0 65.0 15.29253 7.79986 DWG PDF
U100.07 1000mm 130mm 100mm 130.0 65.0 15.954015 8.28576 DWG PDF
U100.08 1000mm 130mm 100mm 135.0 65.0 16.685515 8.59833 DWG PDF
U100.09 1000mm 130mm 100mm 140.0 65.0 17.69603 8.92735 DWG PDF
U100.10 1000mm 130mm 100mm 145.0 65.0 17.27803 9.45759 DWG PDF
U100.10R 1000mm 180mm 130mm 100mm 110.0 110.0 145.0 65.0 18.493365 6.7 DWG PDF
U100.11 1000mm 130mm 100mm 150.0 65.0 17.38253 9.79376 DWG PDF
U100.12 1000mm 130mm 100mm 155.0 65.0 18.11403 DWG PDF
U100.13 1000mm 130mm 100mm 159.0 65.0 18.200765 DWG PDF
U100.14 1000mm 130mm 100mm 164.0 65.0 18.02625 DWG PDF
U100.15 1000mm 130mm 100mm 169.0 65.0 18.32303 DWG PDF
U100.15R 1000mm 205mm 130mm 100mm 110.0 110.0 169.0 65.0 19.78603 8.5 DWG PDF
U100.16 1000mm 130mm 100mm 174.0 65.0 19.019 DWG PDF
U100.17 1000mm 130mm 100mm 178.0 65.0 19.57703 DWG PDF
U100.18 1000mm 130mm 100mm 183.0 52.0 20.238515 DWG PDF
U100.19 1000mm 130mm 100mm 188.0 52.0 19.977265 DWG PDF
U100.20 1000mm 130mm 100mm 193.0 52.0 21.022265 DWG PDF
U100.20R 1000mm 230mm 130mm 100mm 110.0 110.0 193.0 52.0 22.23133 10.5 DWG PDF
U100.25R 1000mm 255mm 130mm 100mm 110.0 110.0 240.0 52.0 22.97328 12.6 DWG PDF
U100.30R 1000mm 280mm 130mm 100mm 110.0 110.0 288.0 52.0 24.84383 14.9 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) B-125 FNX100UCBM 2 locking bars and 2 screws per linear metre DWG PDF
Ductile Cast Iron Slotted (Standard) C-250 FNX100UCCM 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Slotted (Standard) A-15 GN100UCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Perforated A-15 GP100UCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Slot A-15 GR100UOAH25 Supported DWG PDF
Galvanized Steel Mesh (Standard) B-125 GEX100UCB33 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Heelproof) B-125 GEHX100UCB 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Single Slot C-250 GR100UOC Without screws DWG PDF
Galvanized Steel Double Slot C-250 GDR100UOC Without screws DWG PDF
Galvanized Steel Offset Slot C-250 GRL100UOC Supported DWG PDF
Stainless Steel Slotted (Standard) A-15 IN100UCA 2 locking bars and 2 screws per linear metre DWG PDF
Stainless Steel Perforated A-15 IP100UCA 2 locking bars and 2 screws per linear metre DWG PDF
Composite Long. Slotted Black A-15 PNLH100UCAM 2 locking bars and 2 screws per linear metre DWG PDF
Composite Long. Slotted Grey A-15 PNLH100UCAM GRIS 2 locking bars and 2 screws per linear metre DWG PDF
Composite Long. Slotted Beige A-15 PNLH100UCAM BG 2 locking bars and 2 screws per linear metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AU100 Sump Unit drawing DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver with Slot grating DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Concrete with Slot grating DWG PDF
Installation details. Installation beside Kerb DWG PDF
