U200

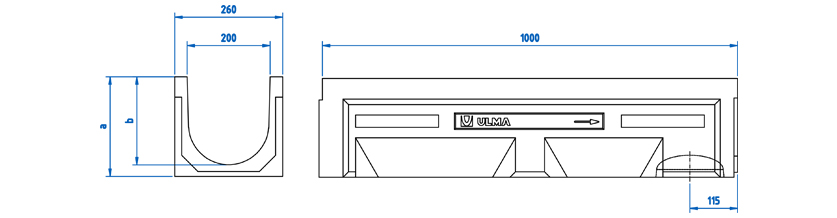

Polymer concrete Linear Drainage Channel ULMA, type U200: External width 260mm; Internal width 200mm; Available with overall heights between 240mm and 340mm. Suitable for cascaded type slope to collect rain water in 1 metre long units. Locking system consists of locking bar CS200 and screws.
Channel options
CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Exterior | Interior | Vert. | Horiz. | |||||||||
U200.00R | 1000mm | 240mm | 260mm | 200mm | 160.0 | 374.0 | 28.0 | 39.17287 | 21.36993 | DWG | ||
U200.10R | 1000mm | 290mm | 260mm | 200mm | 160.0 | 473.0 | 28.0 | 46.12212 | 30.74646 | DWG | ||
U200.20R | 1000mm | 340mm | 260mm | 200mm | 160.0 | 571.0 | 21.0 | 53.54162 | 41.2674 | DWG |
Grating options
Material | Design | Load Class | Code | How to fix | ||
---|---|---|---|---|---|---|
Ductile Cast Iron | Slotted (Standard) | C-250 | FNX200UCCM | 2 locking bars and 2 screws per linear metre | DWG | |
Galvanized Steel | Slotted (Standard) | A-15 | GN200UCA | 2 locking bars and 2 screws per linear metre | DWG | |
Galvanized Steel | Mesh (Standard) | B-125 | GEX200UCB33 | 2 locking bars and 2 screws per linear metre | DWG | |
Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX200UCB | 2 locking bars and 2 screws per linear metre | DWG | |
Galvanized Steel | Slot | C-250 | GR200UOC | Click. Without screws | DWG | |
Galvanized Steel | Double Slot | C-250 | GDR200UOC | Click. Without screws | DWG |
SUMP UNITS AND INSTALLATION DETAILS | ||
---|---|---|
AU200 Sump Unit drawing | DWG | |
AU200S+A200I+A200B Sump Unit drawing | DWG | |
AU200S+A200B Sump Unit drawing | DWG | |
Installation details. Paver | DWG | |
Installation details. Paver with Slot grating | DWG | |
Installation details. Paver onto a load-bearing slab | DWG | |
Installation details. Asphalt | DWG | |
Installation details. Concrete | DWG | |
Installation details. Concrete with Slot grating | DWG | |
Installation details. Installation beside Kerb | DWG |
