U300K

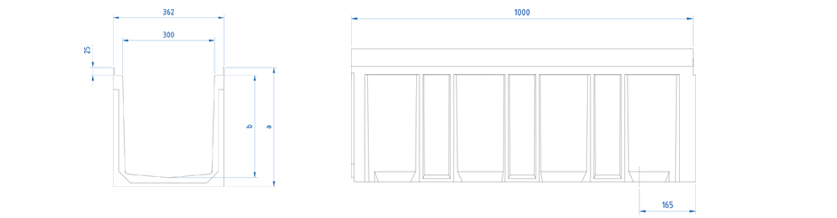

Polymer concrete Linear Drainage Channel ULMA, type U300K: External width 360mm; Internal width 300mm; Suitable for cascade type slope and available with overall heights between 390mm and 490mm to collect rain water in 1 metre long units; Integrated galvanized steel edges for lateral protection. Locking system consists of CS300 locking bar and screws
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| U300K00R | 1000mm | 390mm | 360mm | 300mm | 200 | - | 975 | 15 | 61.78 | 75.9 | DWG | |
| U300K10R | 1000mm | 440mm | 360mm | 300mm | 200 | - | 1110 | 10 | 70.21 | 94.2 | DWG | |
| U300K20R | 1000mm | 490mm | 360mm | 300mm | 200 | - | 1250 | 10 | 75.73 | 113.9 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX300KCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX300KCB | 2 locking bars and 2 screws per linear metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AK300 Sump Unit drawing | DWG | |
| AK300S+A300I+A300B Sump Unit drawing | DWG | |
| AK300S+A300B Sump Unit drawing | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver onto a load-bearing slab | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Installation beside Kerb | DWG | |
