M100V

M100V

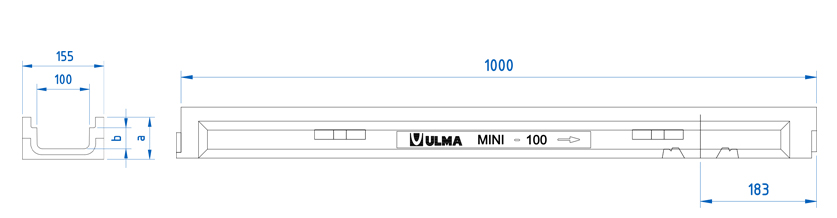

Polymer concrete Linear Drainage Channel ULMA, type M100V: External width 155mm; Internal width 100mm and overall height 80mm to collect rain water in 1 metre long units. Locking system consists of 2 screws per metre.

Channel options

CHANNEL CODE L
(mm)
Height
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Weight
(Kg)
Qref
(l/s)
Exterior Interior Vert. Horiz.
M100V 1000mm 80mm 155mm 100mm 90.0 40.0 120.0 11.53 0.8 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) B-125 FNX100KCBM 2 screws per metre DWG PDF
Ductile Cast Iron Slotted (Standard) C-250 FNX100KCCM 2 screws per metre DWG PDF
Ductile Cast Iron Slotted (Heelproof) C-250 FNHX100KCCM 2 screws per metre DWG PDF
Galvanized Steel Perforated A-15 GP100KCA 2 screws per metre DWG PDF
Galvanized Steel Slotted (Standard) A-15 GN100KCA 2 screws per metre DWG PDF
Galvanized Steel Mesh (Standard) B-125 GEX100KCB 2 screws per metre DWG PDF
Galvanized Steel Mesh (Heelproof) B-125 GEHX100KCB 2 screws per metre DWG PDF
Stainless Steel Slotted (Standard) A-15 IN100KCA 2 screws per metre DWG PDF
Stainless Steel Perforated A-15 IP100KCA 2 screws per metre DWG PDF
Composite Slotted (Heelproof) A-15 PNH100KCAM 2 screws per metre DWG PDF
Composite Slotted (Heelproof) A-15 PNH100KCAM-GRIS 2 screws per metre DWG PDF
Composite Mesh (Standard) B-125 PE100KCBM 2 screws per metre DWG PDF
INSTALLATION DETAILS
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
