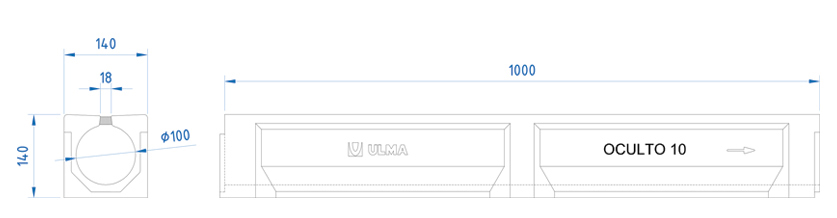

Channel of one pice, grating and channel are integrated. Polymer concrete Linear Drainage Channel ULMA, type OCULTO10: External width 140mm, inside diameter 100mm and overall height 140mm to collect rain water in 1 metre long units.

Channel options

CHANNEL CODE L
(mm)
Height
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Weight
(Kg)
Qref
(l/s)
Exterior Interior Vert. Horiz.
OCULTO 10 1000mm 140mm 140mm 0mm 110 110 78.5 56 18.22 4.5 DWG PDF
OCULTO100RM 500mm 140mm 140mm 100mm 9.42 DWG PDF

Grating options

Material Design Load Class Code How to fix
Polymer Concrete Single Slot A-15 HPR100KCAM 1 locking bar and 1 screw per linear metre DWG PDF
INSTALLATION DETAILS
AOCULTO100S + AU100 Sump Unit drawing DWG PDF
Installation details. Concrete DWG PDF
Installation details. Synthetic Pavement DWG PDF
