MultiV+150

MultiV+150

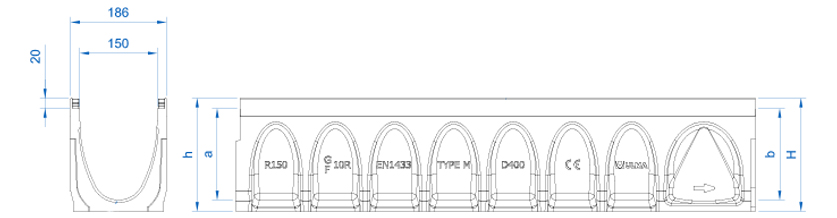

Polymer concrete Linear Drainage Channel ULMA, type multiV+ R150G; External width 186mm, Internal width 150mm, with overall heights between 80 and 320mm; suitable also with 0,5% presloped or cascade-type slopes to collect rainwater; sections 1 LM in length; optimized V-shape with self-cleaning effect; galvanized steel edges for lateral protection; fast RapidLock® boltless fastening system or screw system with 8 fastening points per LM.

Channel options

CHANNEL CODE L
(mm)
Height
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Weight
(Kg)
Qref
(l/s)
Exterior Interior Vert. Horiz.
R150GH8 1000mm 80mm 186mm 150mm 160.0 60.0 50.0 14.02 1.3 DWG PDF
R150GH12 1000mm 120mm 186mm 150mm 160.0 119.0 50.0 16.11 4.1 DWG PDF
R150G00R 1000mm 170mm 186mm 150mm 160.0 156.0 45.0 21.68 6.3 DWG PDF
R150G10R 1000mm 220mm 186mm 150mm 160.0 218.0 36.0 24.47 10.7 DWG PDF
R150G11 1000mm 220/225 186mm 150mm 160.0 225.5 36.0 24.45 15.1 DWG PDF
R150G12 1000mm 225/230 186mm 150mm 160.0 231.9 36.0 25.03 DWG PDF
R150G13 1000mm 230/235 186mm 150mm 160.0 238.3 36.0 25.40 DWG PDF
R150G14 1000mm 235/240 186mm 150mm 160.0 244.6 36.0 26.01 DWG PDF
R150G15 1000mm 240/245 186mm 150mm 160.0 251.0 36.0 26.18 DWG PDF
R150G16 1000mm 245/250 186mm 150mm 160.0 257.4 36.0 26.67 DWG PDF
R150G17 1000mm 250/255 186mm 150mm 160.0 263.8 36.0 27.03 DWG PDF
R150G18 1000mm 255/260 186mm 150mm 160.0 270.2 36.0 27.42 DWG PDF
R150G19 1000mm 260/265 186mm 150mm 160.0 276.5 36.0 27.89 DWG PDF
R150G20 1000mm 265/270 186mm 150mm 160.0 283.0 36.0 28.33 DWG PDF
R150G20R 1000mm 270mm 186mm 150mm 160.0 283.0 36.0 28.28 16.1 DWG PDF
R150G30R 1000mm 320mm 186mm 150mm 160.0 350.0 27.0 31.52 22.3 DWG PDF
R150G00RM 500mm 170mm 186mm 150mm 110.0 90.0 156.0 90.0 12.52 6.3 DWG PDF
R150G10RM 500mm 220mm 186mm 150mm 110.0 125.0 218.0 50.0 14.61 10.7 DWG PDF
R150FH8 1000mm 80mm 186mm 150mm 160.0 60.0 50.0 14.02 1.3 DWG PDF
R150FH12 1000mm 120mm 186mm 150mm 160.0 119.0 50.0 16.11 4.1 DWG PDF
R150F00R 1000mm 170mm 186mm 150mm 160.0 156.0 45.0 21.68 6.3 DWG PDF
R150F10R 1000mm 220mm 186mm 150mm 160.0 218.0 36.0 24.47 10.7 DWG PDF
R150F11 1000mm 220/225 186mm 150mm 160.0 225.5 36.0 24.45 15.1 DWG PDF
R150F12 1000mm 225/230 186mm 150mm 160.0 231.9 36.0 25.03 DWG PDF
R150F13 1000mm 230/235 186mm 150mm 160.0 238.3 36.0 25.40 DWG PDF
R150F14 1000mm 235/240 186mm 150mm 160.0 244.6 36.0 26.01 DWG PDF
R150F15 1000mm 240/245 186mm 150mm 160.0 251.0 36.0 26.18 DWG PDF
R150F16 1000mm 245/250 186mm 150mm 160.0 257.4 36.0 26.67 DWG PDF
R150F17 1000mm 250/255 186mm 150mm 160.0 263.8 36.0 27.03 DWG PDF
R150F18 1000mm 255/260 186mm 150mm 160.0 270.2 36.0 27.42 DWG PDF
R150F19 1000mm 260/265 186mm 150mm 160.0 276.5 36.0 27.89 DWG PDF
R150F20 1000mm 265/270 186mm 150mm 160.0 283.0 36.0 28.33 DWG PDF
R150F20R 1000mm 270mm 186mm 150mm 160.0 283.0 36.0 28.28 16.1 DWG PDF
R150F30R 1000mm 320mm 186mm 150mm 160.0 350.0 27.0 31.52 22.3 DWG PDF
R150F00RM 500mm 170mm 186mm 150mm 110.0 90.0 156.0 90.0 12.52 6.3 DWG PDF
R150F10RM 500mm 220mm 186mm 150mm 110.0 125.0 218.0 50.0 14.61 10.7 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Heelproof) C-250 FNHX150RGCM Rapidlock® con 8 puntos de fijación por ML DWG PDF
Ductile Cast Iron Slotted (Standard) D-400 FNX150RGDM Rapidlock® con 8 puntos de fijación por ML DWG PDF
Ductile Cast Iron Slotted (Heelproof) D-400 FNHX150RGDM Rapidlock® con 8 puntos de fijación por ML DWG PDF
Ductile Cast Iron Slotted (Longitudinal) D-400 FNLHX150RGDM Rapidlock® con 8 puntos de fijación por ML DWG PDF
Galvanized Steel Single Slot A-15 GRL150RODH200E18 DWG PDF
Galvanized Steel Mesh (Heelproof) C-250 GEHX150RGC DWG PDF
Galvanized Steel Single Slot D-400 GRL150ROD DWG PDF
Galvanized Steel Single Slot D-400 GRL150RODH150 DWG PDF
Galvanized Steel Access Unit D-400 GRL150RODMA DWG PDF
Galvanized Steel Access Unit D-400 GRL150RODMAH150 DWG PDF
Galvanized Steel Single Slot D-400 GRL150RODH200 DWG PDF
Galvanized Steel Single Slot D-400 GRL150RODE18 DWG PDF
Galvanized Steel Single Slot D-400 GRL150RODH150E18 DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AR150G Sump Unit drawing DWG PDF
Installation details. Paver up to loading class C250 DWG PDF
Installation details. Paver for loading class D400 DWG PDF
Installation details. Paver with Slot grating up to loading class C250 DWG PDF
Installation details. Paver with Slot grating for loading class D400 DWG PDF
Installation details. Paver onto a load-bearing slab up to loading class C250 DWG PDF
Installation details. Paver onto a load-bearing slab for loading class D400 DWG PDF
Installation details. Asphalt up to loading class C250 DWG PDF
Installation details. Asphalt for loading class D400 DWG PDF
Installation details. Asphalt with Slot grating up to loading class C250 DWG PDF
Installation details. Asphalt with Slot grating for loading class D400 DWG PDF
Installation details. Concrete DWG PDF
Installation details. Concrete with Slot grating DWG PDF
Installation details. Installation beside Kerb DWG PDF
