OCULTO10

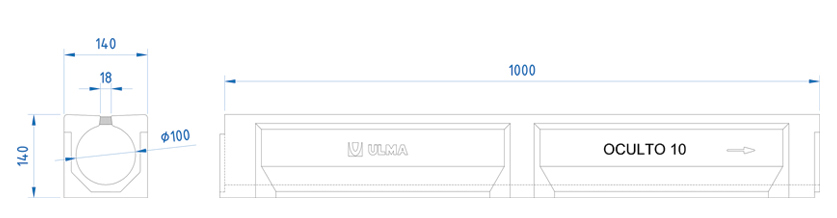

Channel of one pice, grating and channel are integrated. Polymer concrete Linear Drainage Channel ULMA, type OCULTO10: External width 140mm, inside diameter 100mm and overall height 140mm to collect rain water in 1 metre long units.
Channel options
CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Exterior | Interior | Vert. | Horiz. | |||||||||
OCULTO 10 | 1000mm | 140mm | 140mm | 0mm | 110 | 110 | 78.5 | 56 | 18.22 | 4.5 | DWG | |
OCULTO100RM | 500mm | 140mm | 140mm | 100mm | 9.42 | DWG |
Grating options
Material | Design | Load Class | Code | How to fix | ||
---|---|---|---|---|---|---|
Polymer Concrete | Single Slot | A-15 | HPR100KCAM | 1 locking bar and 1 screw per linear metre | DWG |
INSTALLATION DETAILS | ||
---|---|---|
AOCULTO100S + AU100 Sump Unit drawing | DWG | |
Installation details. Concrete | DWG | |
Installation details. Synthetic Pavement | DWG |
