KOMPAQ150 TRAFFIC

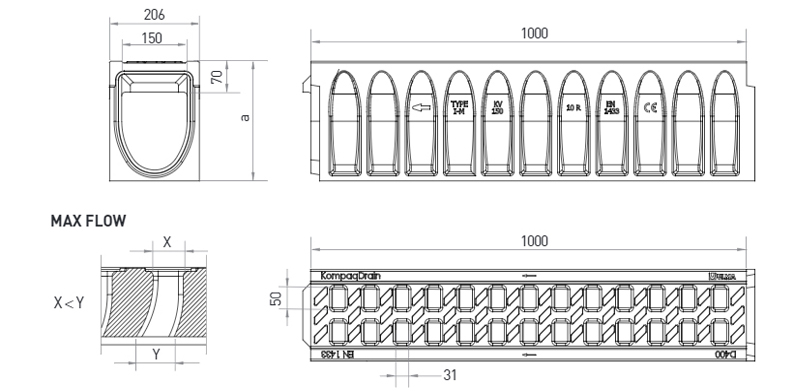

Linear Drainage Channel model ULMA KompaqDrain® Traffic KVFD150, with an integral grating, presented in one-piece and manufactured by high resistant Polymer Concrete. Vandal – proof and corrosion resistant. Load class up to D-400, for all type of vehicles crossing. With “V” optimized shaped and capture holes with MAX-FLOW® geometry: self-cleaning effect at a low flow, increase at maximum flow and positive opening in order to avoid dirt blockage, for areas without slope. Active surface for cutting of water sheet and for its driving to uptake holes and with non-slippery protuberances. Male and female horizontal and vertical alignment and perimetral preformed groove to facilitate joint sealing in 360º. The register and the sump unit include: cast iron grating FNX150FTDM, lateral preforms for horizontal outlets on each side and lateral preforms for connections in T, L and in cross.
Channel options
CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
||||
---|---|---|---|---|---|---|---|---|---|---|---|
Exterior | Interior | Vert. | Horiz. | ||||||||
KVFD150.10R | 1000mm | 270mm | 206mm | 150mm | 227.0 | 15.0 | 57.0 | DWG | |||
KVDF150.20R | 1000mm | 370mm | 206mm | 150mm | 377.0 | 15.0 | 67.0 | DWG | |||
KVDF150.30R | 1000mm | 470mm | 206mm | 150mm | 527.0 | 10.0 | 78.0 | DWG |
SUMP UNITS AND INSTALLATION DETAILS | ||
---|---|---|
Register AKVFD150MF | DWG | |
Sump Unit AKVFD150MF.RS + AKVF150I + AKVF150B | DWG | |
Installation details. Paver up to loading class C250 | DWG | |
Installation details. Paver for loading class D400 | DWG | |
Installation details. Asphalt Longitudinal to the traffic direction | DWG | |
Installation details. Asphalt Transversal to the traffic direction up to loading class C250 | DWG | |
Installation details. Asphalt Transversal to the traffic direction for loading class D400 | DWG | |
Installation details. Concrete Longitudinal to the traffic direction | DWG | |
Installation details. Concrete Transversal to the traffic direction | DWG |
