KOMPAQ200 INDUSTRY

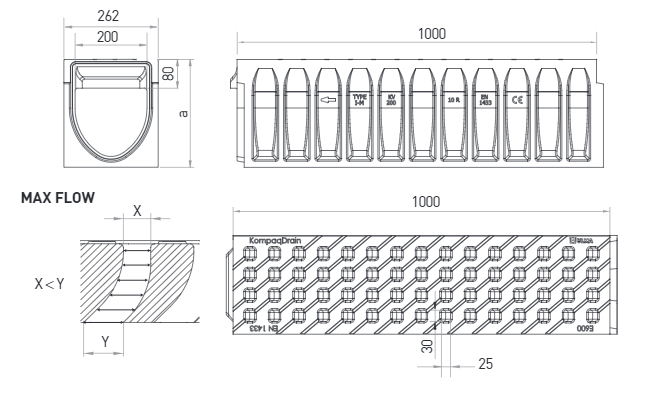

Linear Drainage Channel model ULMA KompaqDrain® Industry KVE200, with an integral grating, presented in one-piece and manufactured by high resistant Polymer Concrete. Vandal – proof and corrosion resistant. Load class up to E-600 with surface design without protuberances to avoid vibrations in crossing vehicles, 30 x 25 mm uptake holes.With “V” optimized shaped and capture holes with MAX-FLOW® geometry: self cleaning effect at a low flow, increase at maximum flow and positive opening in order to avoid dirt blockage, for areas without slope. Active surface for cutting of water sheet and for its driving to uptake holes. Male and female horizontal and vertical alignment and perimetral preformed groove to facilitate joint sealing in 360º. The register and the sump unit include: cast iron grating FNX200FTEM, lateral preforms for horizontal outlets on each side and lateral preforms for connections in T, L and in cross.
