F100

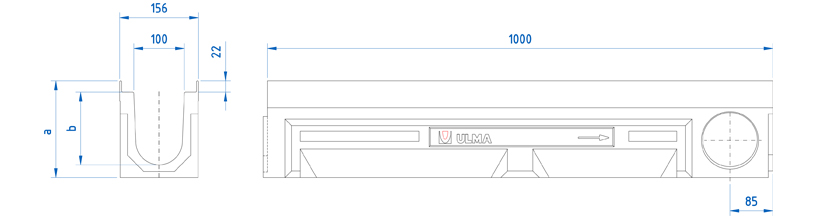

Polymer concrete Linear Drainage Channel ULMA, type F100K: External width 156mm; Internal width 100mm; Available with overall heights between 190mm and 310mm. Suitable for cascaded type slope to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| F100K00R | 1000mm | 190mm | 154mm | 100mm | 110mm | 110mm | 126.0 | 52.0 | 26.72 | 5.5 | DWG | |
| F100K10R | 1000mm | 250mm | 154mm | 100mm | 110mm | - | 184.0 | 39.0 | 28.91 | 9.9 | DWG | |
| F100K20R | 1000mm | 310mm | 154mm | 100mm | 110mm | 110mm | 242.0 | 39.0 | 34.2 | 15.2 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | D-400 | FN100FTDM | 8 screws per linear metre | DWG | |
| Ductile Cast Iron | Slotted (Heelproof) | D-400 | FNHX100FTDM | 8 screws per linear metre | DWG | |
| Ductile Cast Iron | Solid | F-900 | FC100FTFM | 8 screws per linear metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | F-900 | FNX100FTFM | 8 screws per linear metre | DWG | |
| Ductile Cast Iron | Slotted (Heelproof) | F-900 | FNHX100FTFM | 8 screws per linear metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AF100 Sump Unit drawing | DWG | |
| Installation details. Asphalt Longitudinal to the traffic direction | DWG | |
| Installation details. Asphalt Transversal to the traffic direction | DWG | |
| Installation details. Concrete Longitudinal to the traffic direction | DWG | |
| Installation details. Concrete Transversal to the traffic direction | DWG | |
| Installation details. Installation beside Kerb | DWG | |
