S300F

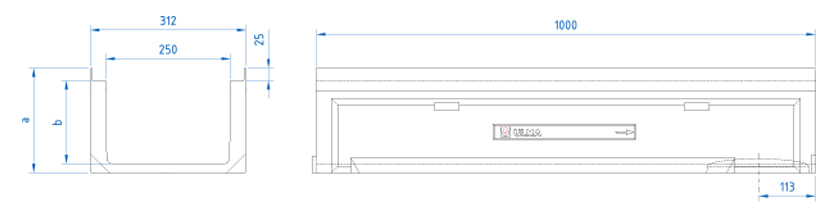

Polymer concrete Linear Drainage Channel ULMA, type S300F: External width 312mm; Internal Width 250mm and overall height of 210mm to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
Channel options
CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Exterior | Interior | Vert. | Horiz. | |||||||||
S300F | 1000mm | 210mm | 312mm | 250mm | 200mm | - | 407.0 | 24.0 | 34.57 | 22.1 | DWG |
Grating options
Material | Design | Load Class | Code | How to fix | ||
---|---|---|---|---|---|---|
Ductile Cast Iron | Slotted (Standard) | C-250 | FNX250FTCM | 8 screws per metre | DWG | |
Ductile Cast Iron | Slotted (Standard) | D-400 | FNX250FTDM | 8 screws per metre | DWG | |
Ductile Cast Iron | Slotted (Standard) | F-900 | FNX250FTFM | 8 screws per metre | DWG | |
Ductile Cast Iron | Solid | F-900 | FC250FTFM | 8 screws per metre | DWG | |
Galvanized Steel | Single Slot | D-400 | GRL250FOD | Without screws | DWG |
SUMP UNITS AND INSTALLATION DETAILS | ||
---|---|---|
AF250 Sump Unit drawing | DWG | |
AF250S+A250I+A250B Sump Unit drawing | DWG | |
AF250S+A250B Sump Unit drawing | DWG | |
Installation details. Asphalt | DWG | |
Installation details. Concrete | DWG | |
Installation details. Asphalt onto a floor frame | DWG | |
Installation details. Concrete onto a floor frame | DWG | |
Installation details. Paver onto a floor frame | DWG |
