SELF

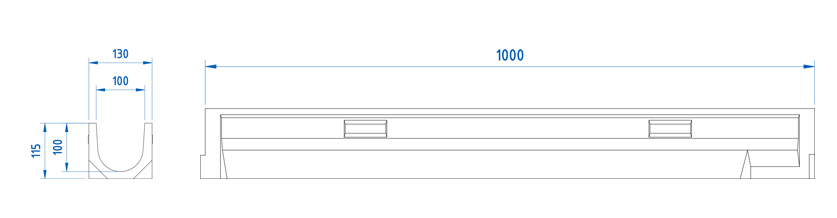

Polymer concrete Linear Drainage Channel ULMA, type SELF: External width 130mm; Internal width 100mm and overall height 115mm to collect rain water in 1 metre long units. Locking system consists of locking bar CS100 and screws.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| SELF | 1000mm | 115mm | 130mm | 100mm | 110.0 | - | 85.0 | 105.0 | 8.42 | 3.0 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | B-125 | FNX100UCBM | 2 locking bars and 2 screws per linear metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX100UCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Slotted (Standard) | A-15 | GN100UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Slotted (Standard) | A-15 | GN100UOA | Without screws | DWG | |
| Galvanized Steel | Perforated | A-15 | GP100UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Slot | A-15 | GR100UOAH25 | Supported | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX100UCB33 | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX100UCB | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Single Slot | C-250 | GR100UOC | Without screws | DWG | |
| Galvanized Steel | Double Slot | C-250 | GDR100UOC | Without screws | DWG | |
| Galvanized Steel | Offset Slot | C-250 | GRL100UOC | Without screws | DWG | |
| Stainless Steel | Slotted (Standard) | A-15 | IN100UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Stainless Steel | Perforated | A-15 | IP100UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Long. Slotted Black | A-15 | PNLH100UCAM | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Long. Slotted Grey | A-15 | PNLH100UCAM GRIS | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Long. Slotted Beige | A-15 | PNLH100UCAM BG | 2 locking bars and 2 screws per linear metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AEURO100 Sump Unit drawing | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver with Slot grating | DWG | |
| Installation details. Paver onto a floor frame | DWG | |
| Installation details. Paver onto a load-bearing slab | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Asphalt onto a floor frame | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Concrete with Slot grating | DWG | |
| Installation details. Concrete onto a floor frame | DWG | |
