SELFK

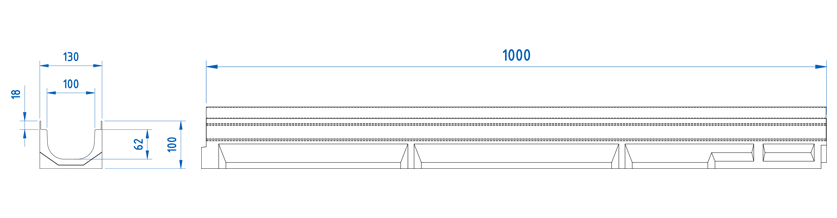

Polymer concrete Linear Drainage Channel ULMA, type SELFK: External width 130mm; Internal width 100mm and overall height 100mm to collect rain water in 1 metre long units. Integrated galvanized steel edges for lateral protection, the locking system consists of 2 screws per metre.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| SELFK | 1000mm | 100mm | 130mm | 100mm | 110.0 | - | 53.0 | 105.0 | 11.13 | 1.5 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | B-125 | FNX100KCBM | 2 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX100KCCM | 2 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Heelproof) | C-250 | FNHX100KCCM | 2 screws per metre | DWG | |
| Galvanized Steel | Perforated | A-15 | GP100KCA | 2 screws per metre | DWG | |
| Galvanized Steel | Slotted (Standard) | A-15 | GN100KCA | 2 screws per metre | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX100KCB | 2 screws per metre | DWG | |
| Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX100KCB | 2 screws per metre | DWG | |
| Stainless Steel | Slotted (Standard) | A-15 | IN100KCA | 2 screws per metre | DWG | |
| Stainless Steel | Perforated | A-15 | IP100KCA | 2 screws per metre | DWG | |
| Composite | Slotted (Heelproof) | A-15 | PNH100KCAM-GRIS | 2 screws per metre | DWG | |
| Composite | Slotted (Heelproof) | A-15 | PNH100KCAM | 2 screws per metre | DWG | |
| Composite | Mesh (Standard) | B-125 | PE100KCBM | 2 screws per metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AEURO100K Sump Unit drawing | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Asphalt onto a floor frame | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Concrete onto a floor frame | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver onto a floor frame | DWG | |
| Installation details. Paver onto a load-bearing slab | DWG | |
