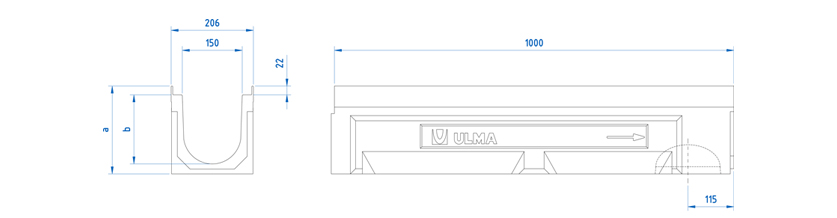

U150K
Polymer concrete Linear Drainage Channel ULMA, type U150K: External width 204mm; Internal width 150mm; Suitable for cascade type slope and available with overall heights between 220mm and 320mm to collect rain water in 1 metre long units; Integrated galvanized steel edges for lateral protection. Locking system consists of CS150 locking bar and screws.
* Also available with stainless edge protection.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| U150K00R | 1000mm | 220mm | 204mm | 150mm | 160mm | 230.0 | 45.0 | 28.4658 | 11.81793 | DWG | ||
| U150K10R | 1000mm | 270mm | 204mm | 150mm | 160mm | 305.0 | 36.0 | 35.1538 | 18.10455 | DWG | ||
| U150K20R | 1000mm | 320mm | 204mm | 150mm | 160mm | 160.0 | 380.0 | 27.0 | 38.63365 | 25.27618 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX150KCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Perforated | A-15 | GP150KCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX150KCB | 2 locking bars and 2 screws per linear metre | DWG | |
| Stainless Steel | Perforated | A-15 | IP150KCA | 2 locking bars and 2 screws per linear metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AK150S+A150I+A150B Sump Unit drawing | DWG | |
| AK150S+A150B Sump Unit drawing | DWG | |
| AK150 Sump Unit drawing | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver onto a load-bearing slab | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Installation beside Kerb | DWG | |
