U150

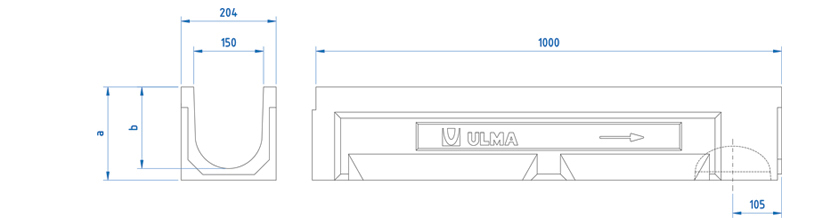

Polymer concrete Linear Drainage Channel ULMA, type U150: External width 204mm; Internal width 150mm; Available with overall heights to collect rain water in 1 metre long units. Locking system consists of locking bar CS150 and screws.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| U150.00R | 1000mm | 200mm | 204mm | 150mm | 160.0 | 110.0 | 230.0 | 45.0 | 25.50427 | 11.81793 | DWG | |
| U150.10R | 1000mm | 250mm | 204mm | 150mm | 160.0 | 305.0 | 36.0 | 31.38762 | 18.10455 | DWG | ||
| U150.20R | 1000mm | 300mm | 204mm | 150mm | 160.0 | 380.0 | 27.0 | 36.09012 | 25.27618 | DWG | ||
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | B-125 | FNX150UCBM | 2 locking bars and 2 screws per linear metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX150UCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Slotted (Standard) | A-15 | GN150UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Perforated | A-15 | GP150UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX150UCB33 | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX150UCB | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Single Slot | C-250 | GR150UOC | Without screws | DWG | |
| Galvanized Steel | Double Slot | C-250 | GDR150UOC | Without screws | DWG | |
| Stainless Steel | Perforated | A-15 | IP150UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AU150S+A150I+A150B Sump Unit drawing | DWG | |
| AU150S+A150B Sump Unit drawing | DWG | |
| AU150 Sump Unit drawing | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver with Slot grating | DWG | |
| Installation details. Paver onto a load-bearing slab | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Concrete with Slot grating | DWG | |
| Installation details. Installation beside Kerb | DWG | |
