MultiV+150

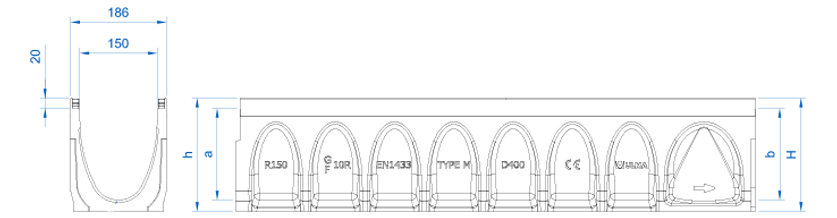

Polymer concrete Linear Drainage Channel ULMA, type multiV+ R150G; External width 186mm, Internal width 150mm, with overall heights between 80 and 320mm; suitable also with 0,5% presloped or cascade-type slopes to collect rainwater; sections 1 LM in length; optimized V-shape with self-cleaning effect; galvanized steel edges for lateral protection; fast RapidLock® boltless fastening system or screw system with 8 fastening points per LM.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| R150GH8 | 1000mm | 80mm | 186mm | 150mm | 160.0 | 60.0 | 50.0 | 14.02 | 1.3 | DWG | ||
| R150GH12 | 1000mm | 120mm | 186mm | 150mm | 160.0 | 119.0 | 50.0 | 16.11 | 4.1 | DWG | ||
| R150G00R | 1000mm | 170mm | 186mm | 150mm | 160.0 | 156.0 | 45.0 | 21.68 | 6.3 | DWG | ||
| R150G10R | 1000mm | 220mm | 186mm | 150mm | 160.0 | 218.0 | 36.0 | 24.47 | 10.7 | DWG | ||
| R150G11 | 1000mm | 220/225 | 186mm | 150mm | 160.0 | 225.5 | 36.0 | 24.45 | 15.1 | DWG | ||
| R150G12 | 1000mm | 225/230 | 186mm | 150mm | 160.0 | 231.9 | 36.0 | 25.03 | DWG | |||
| R150G13 | 1000mm | 230/235 | 186mm | 150mm | 160.0 | 238.3 | 36.0 | 25.40 | DWG | |||
| R150G14 | 1000mm | 235/240 | 186mm | 150mm | 160.0 | 244.6 | 36.0 | 26.01 | DWG | |||
| R150G15 | 1000mm | 240/245 | 186mm | 150mm | 160.0 | 251.0 | 36.0 | 26.18 | DWG | |||
| R150G16 | 1000mm | 245/250 | 186mm | 150mm | 160.0 | 257.4 | 36.0 | 26.67 | DWG | |||
| R150G17 | 1000mm | 250/255 | 186mm | 150mm | 160.0 | 263.8 | 36.0 | 27.03 | DWG | |||
| R150G18 | 1000mm | 255/260 | 186mm | 150mm | 160.0 | 270.2 | 36.0 | 27.42 | DWG | |||
| R150G19 | 1000mm | 260/265 | 186mm | 150mm | 160.0 | 276.5 | 36.0 | 27.89 | DWG | |||
| R150G20 | 1000mm | 265/270 | 186mm | 150mm | 160.0 | 283.0 | 36.0 | 28.33 | DWG | |||
| R150G20R | 1000mm | 270mm | 186mm | 150mm | 160.0 | 283.0 | 36.0 | 28.28 | 16.1 | DWG | ||
| R150G30R | 1000mm | 320mm | 186mm | 150mm | 160.0 | 350.0 | 27.0 | 31.52 | 22.3 | DWG | ||
| R150G00RM | 500mm | 170mm | 186mm | 150mm | 110.0 | 90.0 | 156.0 | 90.0 | 12.52 | 6.3 | DWG | |
| R150G10RM | 500mm | 220mm | 186mm | 150mm | 110.0 | 125.0 | 218.0 | 50.0 | 14.61 | 10.7 | DWG | |
| R150FH8 | 1000mm | 80mm | 186mm | 150mm | 160.0 | 60.0 | 50.0 | 14.02 | 1.3 | DWG | ||
| R150FH12 | 1000mm | 120mm | 186mm | 150mm | 160.0 | 119.0 | 50.0 | 16.11 | 4.1 | DWG | ||
| R150F00R | 1000mm | 170mm | 186mm | 150mm | 160.0 | 156.0 | 45.0 | 21.68 | 6.3 | DWG | ||
| R150F10R | 1000mm | 220mm | 186mm | 150mm | 160.0 | 218.0 | 36.0 | 24.47 | 10.7 | DWG | ||
| R150F11 | 1000mm | 220/225 | 186mm | 150mm | 160.0 | 225.5 | 36.0 | 24.45 | 15.1 | DWG | ||
| R150F12 | 1000mm | 225/230 | 186mm | 150mm | 160.0 | 231.9 | 36.0 | 25.03 | DWG | |||
| R150F13 | 1000mm | 230/235 | 186mm | 150mm | 160.0 | 238.3 | 36.0 | 25.40 | DWG | |||
| R150F14 | 1000mm | 235/240 | 186mm | 150mm | 160.0 | 244.6 | 36.0 | 26.01 | DWG | |||
| R150F15 | 1000mm | 240/245 | 186mm | 150mm | 160.0 | 251.0 | 36.0 | 26.18 | DWG | |||
| R150F16 | 1000mm | 245/250 | 186mm | 150mm | 160.0 | 257.4 | 36.0 | 26.67 | DWG | |||
| R150F17 | 1000mm | 250/255 | 186mm | 150mm | 160.0 | 263.8 | 36.0 | 27.03 | DWG | |||
| R150F18 | 1000mm | 255/260 | 186mm | 150mm | 160.0 | 270.2 | 36.0 | 27.42 | DWG | |||
| R150F19 | 1000mm | 260/265 | 186mm | 150mm | 160.0 | 276.5 | 36.0 | 27.89 | DWG | |||
| R150F20 | 1000mm | 265/270 | 186mm | 150mm | 160.0 | 283.0 | 36.0 | 28.33 | DWG | |||
| R150F20R | 1000mm | 270mm | 186mm | 150mm | 160.0 | 283.0 | 36.0 | 28.28 | 16.1 | DWG | ||
| R150F30R | 1000mm | 320mm | 186mm | 150mm | 160.0 | 350.0 | 27.0 | 31.52 | 22.3 | DWG | ||
| R150F00RM | 500mm | 170mm | 186mm | 150mm | 110.0 | 90.0 | 156.0 | 90.0 | 12.52 | 6.3 | DWG | |
| R150F10RM | 500mm | 220mm | 186mm | 150mm | 110.0 | 125.0 | 218.0 | 50.0 | 14.61 | 10.7 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Heelproof) | C-250 | FNHX150RGCM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Ductile Cast Iron | Slotted (Standard) | D-400 | FNX150RGDM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Ductile Cast Iron | Slotted (Heelproof) | D-400 | FNHX150RGDM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Ductile Cast Iron | Slotted (Longitudinal) | D-400 | FNLHX150RGDM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Galvanized Steel | Single Slot | A-15 | GRL150RODH200E18 | DWG | ||
| Galvanized Steel | Mesh (Heelproof) | C-250 | GEHX150RGC | DWG | ||
| Galvanized Steel | Single Slot | D-400 | GRL150ROD | DWG | ||
| Galvanized Steel | Single Slot | D-400 | GRL150RODH150 | DWG | ||
| Galvanized Steel | Access Unit | D-400 | GRL150RODM | DWG | ||
| Galvanized Steel | Access Unit | D-400 | GRL150RODMA | DWG | ||
| Galvanized Steel | Access Unit | D-400 | GRL150RODMAH150 | DWG | ||
| Galvanized Steel | Single Slot | D-400 | GRL150RODH200 | DWG | ||
| Galvanized Steel | Single Slot | D-400 | GRL150RODE18 | DWG | ||
| Galvanized Steel | Single Slot | D-400 | GRL150RODH150E18 | DWG | ||
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AR150G Sump Unit drawing | DWG | |
| Installation details. Paver up to loading class C250 | DWG | |
| Installation details. Paver for loading class D400 | DWG | |
| Installation details. Paver with Slot grating up to loading class C250 | DWG | |
| Installation details. Paver with Slot grating for loading class D400 | DWG | |
| Installation details. Paver onto a load-bearing slab up to loading class C250 | DWG | |
| Installation details. Paver onto a load-bearing slab for loading class D400 | DWG | |
| Installation details. Asphalt up to loading class C250 | DWG | |
| Installation details. Asphalt for loading class D400 | DWG | |
| Installation details. Asphalt with Slot grating up to loading class C250 | DWG | |
| Installation details. Asphalt with Slot grating for loading class D400 | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Concrete with Slot grating | DWG | |
| Installation details. Installation beside Kerb | DWG | |
