MultiV+100

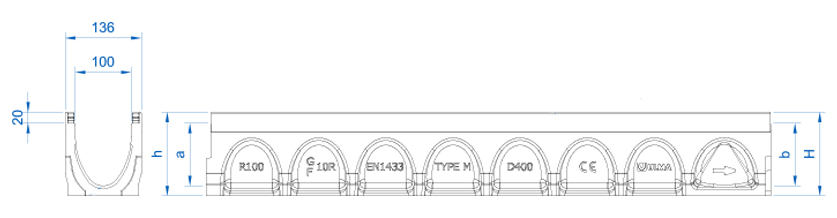

Canal de Hormigón Polímero tipo ULMA, modelo multiV+ R100G, ancho exterior 136mm., ancho interior 100mm. y alturas exteriores entre 80mm. y 300mm., con posibilidad de pendiente incorporada del 0,5% o pendiente en cascada, para recogida de aguas pluviales, en módulos de 1ML de longitud. Sección en V optimizada con efecto autolimpiante; perfiles de acero galvanizado para protección lateral, sistema de fijación sin tornillos RapidLock® (código R100G) o atornillado ( código R100F), con 8 puntos de fijación por ML.
Opciones de canal
| CÓDIGO CANAL |
L
(mm) |
Alt total
(mm) |
Ancho (mm) | Diám. Salida (mm) |
Sección hidráulica
(cm) |
Unidades
(x pallet) |
Peso
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| R100GH8 | 1000mm | 80mm | 136mm | 100mm | 110.0 | 40.0 | 90 | 11.2 | 0.9 | DWG | ||
| R100G00R | 1000mm | 100mm | 136mm | 100mm | 110.0 | 56.0 | 90 | 12.2 | 1.5 | DWG | ||
| R100G01 | 1000mm | 100/105 | 136mm | 100mm | 110.0 | 60.9 | - | 12.4 | - | DWG | ||
| R100G02 | 1000mm | 105/110 | 136mm | 100mm | 110.0 | 64.3 | - | 12.8 | - | DWG | ||
| R100G03 | 1000mm | 110/115 | 136mm | 100mm | 110.0 | 67.7 | - | 13.3 | - | DWG | ||
| R100G04 | 1000mm | 115/120 | 136mm | 100mm | 110.0 | 71.1 | - | 13.7 | - | DWG | ||
| R100G05 | 1000mm | 120/125 | 136mm | 100mm | 110.0 | 74.5 | - | 14.1 | - | DWG | ||
| R100G06 | 1000mm | 125/130 | 136mm | 100mm | 110.0 | 77.9 | - | 14.5 | - | DWG | ||
| R100G07 | 1000mm | 130/135 | 136mm | 100mm | 110.0 | 81.3 | - | 15.0 | - | DWG | ||
| R100G08 | 1000mm | 135/140 | 136mm | 100mm | 110.0 | 84.7 | - | 15.4 | - | DWG | ||
| R100G09 | 1000mm | 140/145 | 136mm | 100mm | 110.0 | 88.1 | - | 15.8 | - | DWG | ||
| R100G10 | 1000mm | 145/150 | 136mm | 100mm | 110.0 | 91.5 | - | 16.3 | - | DWG | ||
| R100G10R | 1000mm | 150mm | 136mm | 100mm | 110.0 | 91.5 | 75 | 15.2 | 3.3 | DWG | ||
| R100G11 | 1000mm | 150/155 | 136mm | 100mm | 110.0 | 96.5 | - | 15.1 | - | DWG | ||
| R100G12 | 1000mm | 155/160 | 136mm | 100mm | 110.0 | 100.6 | - | 15.6 | - | DWG | ||
| R100G13 | 1000mm | 160/165 | 136mm | 100mm | 110.0 | 104.6 | - | 16.0 | - | DWG | ||
| R100G14 | 1000mm | 165/170 | 136mm | 100mm | 110.0 | 108.7 | - | 16.4 | - | DWG | ||
| R100G15 | 1000mm | 170/175 | 136mm | 100mm | 110.0 | 112.7 | - | 16.7 | - | DWG | ||
| R100G16 | 1000mm | 175/1780 | 136mm | 100mm | 110.0 | 116.8 | - | 17.3 | - | DWG | ||
| R100G17 | 1000mm | 180/185 | 136mm | 100mm | 110.0 | 120.8 | - | 17.7 | - | DWG | ||
| R100G18 | 1000mm | 185/190 | 136mm | 100mm | 110.0 | 124.9 | - | 18.2 | - | DWG | ||
| R100G19 | 1000mm | 190/195 | 136mm | 100mm | 110.0 | 128.9 | - | 18.6 | - | DWG | ||
| R100G20 | 1000mm | 195/200 | 136mm | 100mm | 110.0 | 133.0 | - | 18.9 | - | DWG | ||
| R100G20R | 1000mm | 200mm | 136mm | 100mm | 110.0 | 133.0 | 60 | 18.6 | 6.0 | DWG | ||
| R100G21 | 1000mm | 200/205 | 136mm | 100mm | 110.0 | 137.3 | - | 14.6 | - | DWG | ||
| R100G22 | 1000mm | 205/210 | 136mm | 100mm | 110.0 | 141.6 | - | 15.6 | - | DWG | ||
| R100G23 | 1000mm | 201/215 | 136mm | 100mm | 110.0 | 145.9 | - | 15.6 | - | DWG | ||
| R100G24 | 1000mm | 215/220 | 136mm | 100mm | 110.0 | 150.2 | - | 16.7 | - | DWG | ||
| R100G25 | 1000mm | 220/225 | 136mm | 100mm | 110.0 | 154.5 | - | 16.7 | - | DWG | ||
| R100G26 | 1000mm | 225/230 | 136mm | 100mm | 110.0 | 158.8 | - | 16.7 | - | DWG | ||
| R100G27 | 1000mm | 230/235 | 136mm | 100mm | 110.0 | 163.1 | - | 17.7 | - | DWG | ||
| R100G28 | 1000mm | 235/240 | 136mm | 100mm | 110.0 | 167.4 | - | 17.7 | - | DWG | ||
| R100G29 | 1000mm | 240/245 | 136mm | 100mm | 110.0 | 171.7 | - | 18.8 | - | DWG | ||
| R100G30 | 1000mm | 245/250 | 136mm | 100mm | 110.0 | 176.0 | - | 18.8 | - | DWG | ||
| R100G30R | 1000mm | 250mm | 136mm | 100mm | 110.0 | 176.0 | 45 | 21.5 | 9.2 | DWG | ||
| R100G40R | 1000mm | 300mm | 136mm | 100mm | 110.0 | 220.0 | 45 | 24.7 | 13.0 | DWG | ||
| R100G10RM | 500mm | 150mm | 136mm | 100mm | 90.0 | 75.0 | 91.5 | 84 | 9.1 | 3.3 | DWG | |
| R100G20RM | 500mm | 200mm | 136mm | 100mm | 90.0 | 110.0 | 133.0 | 70 | 10.5 | 6.0 | DWG | |
| R100FGH8 | 1000mm | 80mm | 136mm | 100mm | 110.0 | 40.0 | 90 | 11.2 | 0.9 | DWG | ||
| R100F00R | 1000mm | 100mm | 136mm | 100mm | 110.0 | 56.0 | 56 | 12.2 | 1.5 | DWG | ||
| R100F01 | 1000mm | 100/105 | 136mm | 100mm | 110.0 | 60.9 | - | 12.4 | - | DWG | ||
| R100F02 | 1000mm | 105/110 | 136mm | 100mm | 110.0 | 64.3 | - | 12.8 | - | DWG | ||
| R100F03 | 1000mm | 110/115 | 136mm | 100mm | 110.0 | 67.7 | - | 13.3 | - | DWG | ||
| R100F04 | 1000mm | 115/120 | 136mm | 100mm | 110.0 | 71.1 | - | 13.7 | - | DWG | ||
| R100F05 | 1000mm | 120/125 | 136mm | 100mm | 110.0 | 74.5 | - | 14.1 | - | DWG | ||
| R100F06 | 1000mm | 125/130 | 136mm | 100mm | 110.0 | 77.9 | - | 14.5 | - | DWG | ||
| R100F07 | 1000mm | 130/135 | 136mm | 100mm | 110.0 | 81.3 | - | 15.0 | - | DWG | ||
| R100F08 | 1000mm | 135/140 | 136mm | 100mm | 110.0 | 84.7 | - | 15.4 | - | DWG | ||
| R100F09 | 1000mm | 140/145 | 136mm | 100mm | 110.0 | 88.1 | - | 15.8 | - | DWG | ||
| R100F10 | 1000mm | 145/150 | 136mm | 100mm | 110.0 | 91.5 | - | 16.3 | - | DWG | ||
| R100F10R | 1000mm | 150mm | 136mm | 100mm | 110.0 | 91.5 | 48 | 15.2 | 3.3 | DWG | ||
| R100F11 | 1000mm | 150/155 | 136mm | 100mm | 110.0 | 96.5 | - | 15.1 | - | DWG | ||
| R100F12 | 1000mm | 155/160 | 136mm | 100mm | 110.0 | 100.6 | - | 15.6 | - | DWG | ||
| R100F13 | 1000mm | 160/165 | 136mm | 100mm | 110.0 | 104.6 | - | 16.0 | - | DWG | ||
| R100F14 | 1000mm | 165/170 | 136mm | 100mm | 110.0 | 108.7 | - | 16.4 | - | DWG | ||
| R100F15 | 1000mm | 170/175 | 136mm | 100mm | 110.0 | 112.7 | - | 16.7 | - | DWG | ||
| R100F16 | 1000mm | 175/180 | 136mm | 100mm | 110.0 | 116.8 | - | 17.3 | - | DWG | ||
| R100F17 | 1000mm | 180/185 | 136mm | 100mm | 110.0 | 120.8 | - | 17.7 | - | DWG | ||
| R100F18 | 1000mm | 185/190 | 136mm | 100mm | 110.0 | 124.9 | - | 18.2 | - | DWG | ||
| R100F19 | 1000mm | 190/195 | 136mm | 100mm | 110.0 | 128.9 | - | 18.6 | - | DWG | ||
| R100F20 | 1000mm | 195/200 | 136mm | 100mm | 110.0 | 133.0 | - | 18.9 | - | DWG | ||
| R100F20R | 1000mm | 200mm | 136mm | 100mm | 110.0 | 133.0 | 40 | 18.6 | 6.0 | DWG | ||
| R100F21 | 1000mm | 200/205 | 136mm | 100mm | 110.0 | 137.3 | - | 14.6 | - | DWG | ||
| R100F22 | 1000mm | 205/210 | 136mm | 100mm | 110.0 | 141.6 | - | 15.6 | - | DWG | ||
| R100F23 | 1000mm | 210/215 | 136mm | 100mm | 110.0 | 145.9 | - | 15.6 | - | DWG | ||
| R100F24 | 1000mm | 215/220 | 136mm | 100mm | 110.0 | 150.2 | - | 16.7 | - | DWG | ||
| R100F25 | 1000mm | 220/225 | 136mm | 100mm | 110.0 | 154.5 | - | 16.7 | - | DWG | ||
| R100F26 | 1000mm | 225/230 | 136mm | 100mm | 110.0 | 158.8 | - | 16.7 | - | DWG | ||
| R100F27 | 1000mm | 230/235 | 136mm | 100mm | 110.0 | 163.1 | - | 17.7 | - | DWG | ||
| R100F28 | 1000mm | 235/240 | 136mm | 100mm | 110.0 | 167.4 | - | 17.7 | - | DWG | ||
| R100F29 | 1000mm | 240/245 | 136mm | 100mm | 110.0 | 171.7 | - | 18.8 | - | DWG | ||
| R100F30 | 1000mm | 245/250 | 136mm | 100mm | 110.0 | 176.0 | - | 18.8 | - | DWG | ||
| R100F30R | 1000mm | 250mm | 136mm | 100mm | 110.0 | 176.0 | 45 | 21.5 | 9.2 | DWG | ||
| R100F40R | 1000mm | 300mm | 136mm | 100mm | 110.0 | 220.0 | 45 | 24.7 | 13.0 | DWG | ||
| R100F10RM | 500mm | 150mm | 136mm | 100mm | 90.0 | 75.0 | 91.5 | 84 | 9.1 | - | DWG | |
| R100F20RM | 500mm | 200mm | 136mm | 100mm | 90.0 | 110.0 | 133.0 | 70 | 10.5 | - | DWG | |
Opciones de rejilla
| Material | Diseño | Clase Carga | Código | Fijaciones del KIT | ||
|---|---|---|---|---|---|---|
| Fundición Dúctil | Nervada Antitacón | B-125 | FNHX100RGBM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Fundición Dúctil | Nervada Antitacón | C-250 | FNHX100RGCM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Fundición Dúctil | Nervada Normal (Pasarela) | D-400 | FNX100RGDM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Fundición Dúctil | Nervada Antitacón | D-400 | FNHX100RGDM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Fundición Dúctil | Nervada Longitudinal | D-400 | FNLHX100RGDM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Acero Galvanizado | Nervada Longitudinal | A-15 | GNLHX100RGA | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Acero Galvanizado | Nervada Longitudinal | C-250 | GNLHX100RGC | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Acero Galvanizado | Entramada Antitacón | C-250 | GEHX100RGC | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Acero Galvanizado | Entramada Antitacón | D-400 | GEHX100RGD | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Acero Galvanizado | Ranurada | D-400 | GRL100ROD | apoyada | DWG | |
| Acero Galvanizado | Ranurada | D-400 | GRL100RODH150 | apoyada | DWG | |
| Acero Galvanizado | Ranurada | D-400 | GRL100RODH150E18 | apoyada | DWG | |
| Acero Galvanizado | Ranurada | D-400 | GRL100RODE18 | apoyada | DWG | |
| Acero Galvanizado | Ranurada | D-400 | GRL100RODH200 | apoyada | DWG | |
| Acero Galvanizado | Ranurada | D-400 | GRL100RODH200E18 | apoyada | DWG | |
| Composite | Nervada Longitudinal | A-15 | PNLH100RGAM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Composite | Nervada Longitudinal | A-15 | PNLH100RGAM GRIS | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Composite | Nervada Antitacón | B-125 | PNH100RGBM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Composite | Nervada Antitacón | C-250 | PNH100RGCM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| ARQUETAS Y PLANOS DE INSTALACIÓN | ||
|---|---|---|
| Plano de la Arqueta AR100G | DWG | |
| Detalle constructivo. Instalación en Adoquin hasta clase de carga C250 | DWG | |
| Detalle constructivo. Instalación en Adoquin para clase de carga D400 | DWG | |
| Detalle constructivo. Instalación en Adoquin con rejilla ranurada hasta clase de carga C250 | DWG | |
| Detalle constructivo. Instalación en Adoquin con rejilla ranurada para clase de carga D400 | DWG | |
| Detalle constructivo. Instalación en Adoquin sobre Losa Portante hasta clase de carga C250 | DWG | |
| Detalle constructivo. Instalación en Adoquin sobre Losa Portante para clase de carga D400 | DWG | |
| Detalle constructivo. Instalación en Asfalto hasta clase de carga C250 | DWG | |
| Detalle constructivo. Instalación en Asfalto para clase de carga D400 | DWG | |
| Detalle constructivo. Instalación en Asfalto con rejilla ranurada hasta clase de carga C250 | DWG | |
| Detalle constructivo. Instalación en Asfalto con rejilla ranurada para clase de carga D400 | DWG | |
| Detalle constructivo. Instalación en Hormigón | DWG | |
| Detalle constructivo. Instalación en Hormigón con rejilla ranurada | DWG | |
| Detalle constructivo. Instalación contra bordillo | DWG | |
