MultiV+150

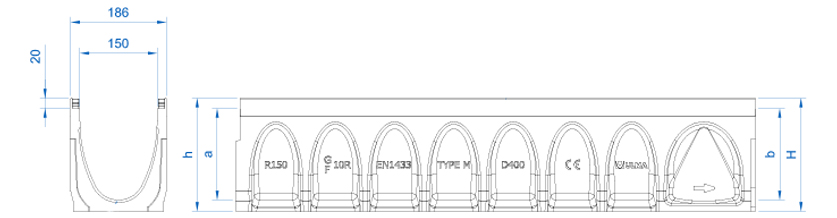

Canal de Hormigón Polímero tipo ULMA, modelo multiV+ R150G, ancho exterior 186mm, ancho interior 150mm y alturas exteriores entre 80mm y 320mm, con posibilidad de pendiente incorporada del 0,5% o pendiente en cascada, para recogida de aguas pluviales, en módulos de 1ML de longitud, sección en V optimizada con efecto autolimpiante; perfiles de acero galvanizado para protección lateral, sistema de fijación sin tornillos RapidLock® (código R150G) o atornillado (códogo R150F), con 8 puntos de fijación por ML.
Opciones de canal
| CÓDIGO CANAL |
L
(mm) |
Alt total
(mm) |
Ancho (mm) | Diám. Salida (mm) |
Sección hidráulica
(cm) |
Unidades
(x pallet) |
Peso
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| R150GH8 | 1000mm | 80mm | 186mm | 150mm | 160.0 | 60.0 | 50 | 14.0 | 1.3 | DWG | ||
| R150GH12 | 1000mm | 120mm | 186mm | 150mm | 160.0 | 119.0 | 50 | 16.1 | 4.1 | DWG | ||
| R150G00R | 1000mm | 170mm | 186mm | 150mm | 160.0 | 156.0 | 45 | 21.6 | 6.3 | DWG | ||
| R150G10R | 1000mm | 220mm | 186mm | 150mm | 160.0 | 218.0 | 36 | 24.4 | 10.7 | DWG | ||
| R150G11 | 1000mm | 220/225 | 186mm | 150mm | 160.0 | 225.5 | - | 24.4 | - | DWG | ||
| R150G12 | 1000mm | 225/230 | 186mm | 150mm | 160.0 | 231.9 | - | 25.0 | - | DWG | ||
| R150G13 | 1000mm | 230/235 | 186mm | 150mm | 160.0 | 238.3 | - | 25.4 | - | DWG | ||
| R150G14 | 1000mm | 235/240 | 186mm | 150mm | 160.0 | 244.6 | - | 26.0 | - | DWG | ||
| R150G15 | 1000mm | 240/245 | 186mm | 150mm | 160.0 | 251.0 | - | 26.1 | - | DWG | ||
| R150G16 | 1000mm | 245/250 | 186mm | 150mm | 160.0 | 257.4 | - | 26.6 | - | DWG | ||
| R150G17 | 1000mm | 250/255 | 186mm | 150mm | 160.0 | 263.8 | - | 27.0 | - | DWG | ||
| R150G18 | 1000mm | 255/260 | 186mm | 150mm | 160.0 | 270.2 | - | 27.4 | - | DWG | ||
| R150G19 | 1000mm | 260/265 | 186mm | 150mm | 160.0 | 276.5 | - | 27.8 | - | DWG | ||
| R150G20 | 1000mm | 265/270 | 186mm | 150mm | 160.0 | 283.0 | - | 28.3 | - | DWG | ||
| R150G20R | 1000mm | 270mm | 186mm | 150mm | 160.0 | 283.0 | 36 | 28.2 | 16.1 | DWG | ||
| R150G30R | 1000mm | 320mm | 186mm | 150mm | 160.0 | 350.0 | 27 | 31.5 | 22.3 | DWG | ||
| R150G00RM | 500mm | 170mm | 186mm | 150mm | 110.0 | 90.0 | 156.0 | 60 | 12.5 | - | DWG | |
| R150G10RM | 500mm | 220mm | 186mm | 150mm | 110.0 | 125.0 | 218.0 | 50 | 14.6 | - | DWG | |
| R150G20RM | 500mm | 270mm | 186mm | 150mm | 110.0 | 160.0 | 283.0 | 40 | 17.7 | - | DWG | |
| R150FH8 | 1000mm | 80mm | 186mm | 150mm | 160.0 | 60.0 | 50 | 14.0 | 1.3 | DWG | ||
| R150FH12 | 1000mm | 120mm | 186mm | 150mm | 160.0 | 119.0 | 50 | 16.1 | 4.1 | DWG | ||
| R150F00R | 1000mm | 170mm | 186mm | 150mm | 160.0 | 156.0 | 30 | 21.6 | 6.3 | DWG | ||
| R150F10R | 1000mm | 220mm | 186mm | 150mm | 160.0 | 218.0 | 25 | 24.4 | 10.7 | DWG | ||
| R150F11 | 1000mm | 220/225 | 186mm | 150mm | 160.0 | 225.5 | - | 24.4 | 15.1 | DWG | ||
| R150F12 | 1000mm | 225/230 | 186mm | 150mm | 160.0 | 231.9 | - | 25.0 | DWG | |||
| R150F13 | 1000mm | 230/235 | 186mm | 150mm | 160.0 | 238.3 | - | 25.4 | DWG | |||
| R150F14 | 1000mm | 235/240 | 186mm | 150mm | 160.0 | 244.6 | - | 26.0 | DWG | |||
| R150F15 | 1000mm | 240/245 | 186mm | 150mm | 160.0 | 251.0 | - | 26.1 | DWG | |||
| R150F16 | 1000mm | 245/250 | 186mm | 150mm | 160.0 | 257.4 | - | 26.6 | DWG | |||
| R150F17 | 1000mm | 250/255 | 186mm | 150mm | 160.0 | 263.8 | - | 27.0 | DWG | |||
| R150F18 | 1000mm | 255/260 | 186mm | 150mm | 160.0 | 270.2 | - | 27.4 | DWG | |||
| R150F19 | 1000mm | 260/265 | 186mm | 150mm | 160.0 | 276.5 | - | 27.8 | DWG | |||
| R150F20 | 1000mm | 265/270 | 186mm | 150mm | 160.0 | 283.0 | - | 28.3 | DWG | |||
| R150F20R | 1000mm | 270mm | 186mm | 150mm | 160.0 | 283.0 | 20 | 28.2 | 16.1 | DWG | ||
| R150F30R | 1000mm | 320mm | 186mm | 150mm | 160.0 | 350.0 | 27 | 31.5 | 22.3 | DWG | ||
| R150F00RM | 500mm | 170mm | 186mm | 150mm | 110.0 | 90.0 | 156.0 | 60 | 12.5 | - | DWG | |
| R150F10RM | 500mm | 220mm | 186mm | 150mm | 110.0 | 125.0 | 218.0 | 50 | 14.6 | - | DWG | |
| R150F20RM | 500mm | 270mm | 186mm | 150mm | 110.0 | 160.0 | 283.0 | 40 | 17,7 | - | ||
Opciones de rejilla
| Material | Diseño | Clase Carga | Código | Fijaciones del KIT | ||
|---|---|---|---|---|---|---|
| Fundición Dúctil | Nervada Antitacón | C-250 | FNHX150RGCM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Fundición Dúctil | Nervada Normal (Pasarela) | D-400 | FNX150RGDM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Fundición Dúctil | Nervada Antitacón | D-400 | FNHX150RGDM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Fundición Dúctil | Nervada Longitudinal | D-400 | FNLHX150RGDM | Rapidlock® con 8 puntos de fijación por ML | DWG | |
| Acero Galvanizado | Entramada Antitacón | C-250 | GEHX150RGC | DWG | ||
| Acero Galvanizado | Ranurada Simple | A-15 | GRL150RODH200E18 | DWG | ||
| Acero Galvanizado | Ranurada Simple | D-400 | GRL150ROD | DWG | ||
| Acero Galvanizado | Ranurada Simple | D-400 | GRL150RODH150 | DWG | ||
| Acero Galvanizado | Ranurada Simple | D-400 | GRL150RODH200 | DWG | ||
| Acero Galvanizado | Ranurada Simple | D-400 | GRL150RODE18 | DWG | ||
| Acero Galvanizado | Ranurada Simple | D-400 | GRL150RODH150E18 | DWG | ||
| ARQUETAS Y PLANOS DE INSTALACIÓN | ||
|---|---|---|
| Plano de la Arqueta AR150G | DWG | |
| Detalle constructivo. Instalación en Adoquin hasta clase de carga C250 | DWG | |
| Detalle constructivo. Instalación en Adoquin para clase de carga D400 | DWG | |
| Detalle constructivo. Instalación en Adoquin con rejilla ranurada hasta clase de carga C250 | DWG | |
| Detalle constructivo. Instalación en Adoquin con rejilla ranurada para clase de carga D400 | DWG | |
| Detalle constructivo. Instalación en Adoquin sobre Losa Portante hasta clase de carga C250 | DWG | |
| Detalle constructivo. Instalación en Adoquin sobre Losa Portante para clase de carga D400 | DWG | |
| Detalle constructivo. Instalación en Asfalto hasta clase de carga C250 | DWG | |
| Detalle constructivo. Instalación en Asfalto para clase de carga D400 | DWG | |
| Detalle constructivo. Instalación en Asfalto con rejilla ranurada hasta clase de carga C250 | DWG | |
| Detalle constructivo. Instalación en Asfalto con rejilla ranurada para clase de carga D400 | DWG | |
| Detalle constructivo. Instalación en Hormigón | DWG | |
| Detalle constructivo. Instalación en Hormigón con rejilla ranurada | DWG | |
| Detalle constructivo. Instalación contra bordillo | DWG | |
| Ficha Técnica | ||
